Wafer check valve
The technical data of wafer check valve
Nominal diameter:dn(mm)32(1”) to 600(24”)
Nominal pressure:pn(MPa):0.6,1.0,1.6,2.5
Flange drilling :EN1092 ,PN6,10,16,25
Inspection and test :API1598
The feature of wafer type check valve
This wafer swing check valve with circular clack which is one of ultra thin check valve ,compare with the traditional check valves,the new ones open/close angle is big ,the circulation is fine ,rotates is swiftly ,structure is compact,external form is beautiful ,weight is light ,assembles conveniently ,there are two type of this wafer check valve ,spring type and without spring type.without spring type .without spring type only can be used in the stable working conditions .the valve can be used in the field that assembling space is limited ,such as petrochemical industry ,water supply system and metallurgy industry etc.

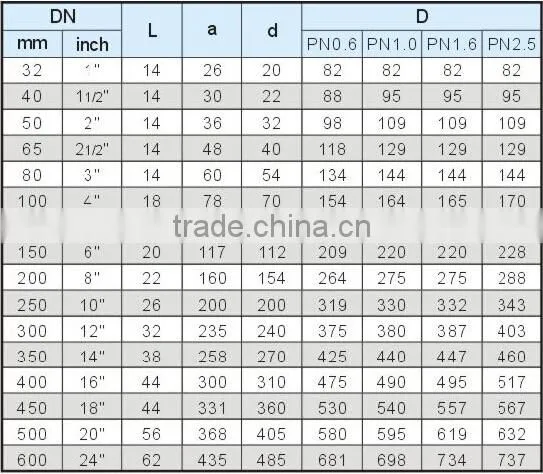

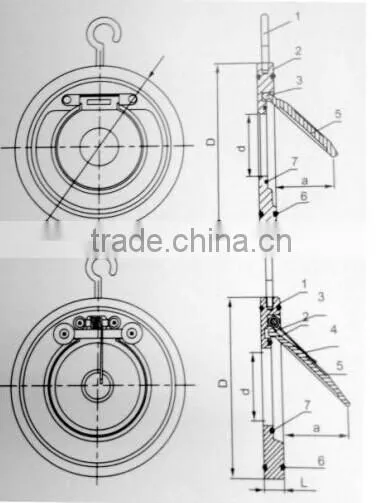

Main dimension
Our main material of wafer check valve

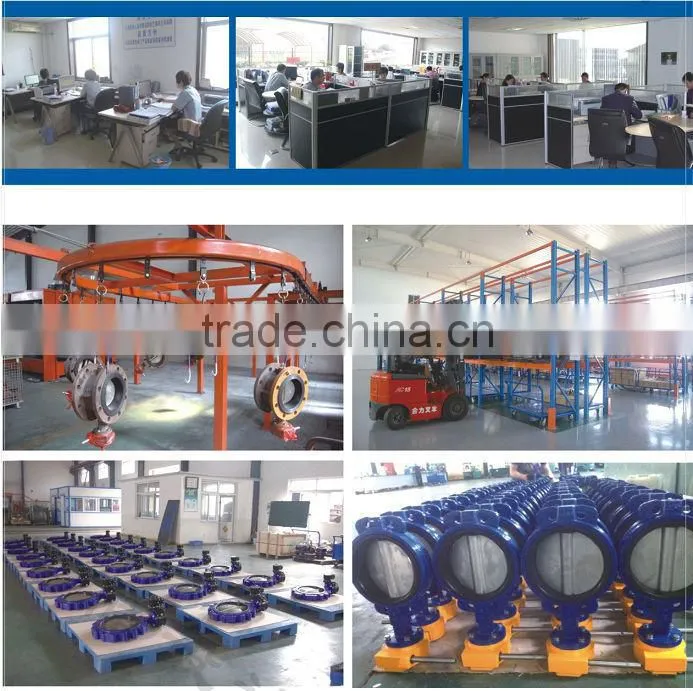

Our factory picture
