CV-LY-012 Butterfly Type Check Valve Cf8m Double Plate
US$ 10 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CV-SY003 Standard and Nonstandard 6 Inch Wafer Butterfly Type Duo Check ValveUS$ 0.85 - 15MOQ: 10 Pieces -
CV-DS012 EN/DIN Pn10/16 Casting/WCB Swing One Way Water ValveUS$ 0.85 - 1,500MOQ: 1 Piece
-
CV-DS012 EN/DIN Pn10/16 WCB/stainless Steel Swing Check ValveUS$ 0.85 - 1,500MOQ: 1 Piece
-
CV-DS006 4 Inch Stainless Steel Wafer Type Air Check ValveUS$ 0.85 - 1,500MOQ: 50 Pieces
-
CV-DS011API/JIS 10k 2 Inch Wafer Auto Shut off Water ValveUS$ 0.85 - 1,500MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Low Pressure
Power
Other, fluid control
Material
Casting
Temperature of Media
Normal Temperature
Media
Other, water/gas/oil/air/steam etc
Port Size
dn500-700mm
Place of Origin
Tianjin, China
Model Number
DH77X
Brand Name
OTS
CV-LY-012 butterfly type check valve cf8m double plate
The functon of check valve cf8m ,is used to prevent the back flow of medium in the pipeline and equipements,this check valve cf8m close automatically under the pressure of flow medium.the check valve disc automatically avoid accidents when flow back-going.
The data of check valve cf8m
nominal diameter:dn50mm(2inch)~700mm(28inch)
nominal pressure:1.0-1.6MPa
testing pressure:shell:1.5-2.4MPa sealing:1.1-1.76Mpa
suitable medium:fresh water,sewage,sea water,air,steam,food,medicine,oils,acids etc
working temperature:-23~93 centigrade

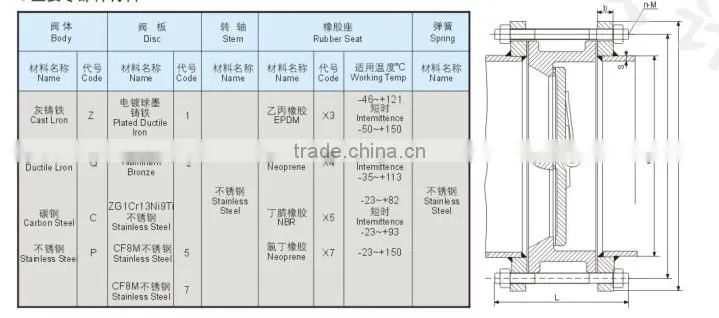

The material and drawings of check valve cf8m
