Specifications

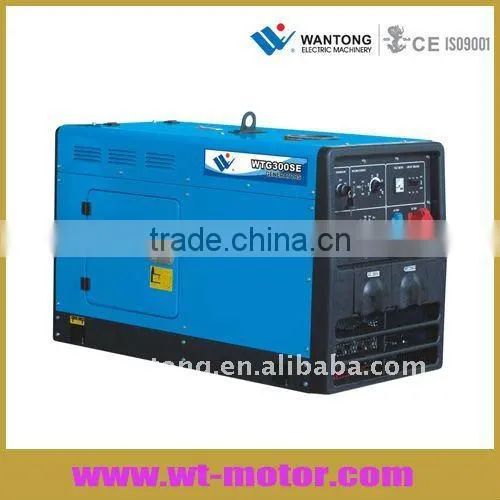

WANTONG Gasoline Welding Generator with dual function, elegant apperance, good quality alternator and engineWANTONG Gasoline Welding Generator
One Unit, Dual Function
WANTONG Welder & Generators are advanced products with dual functions-welding & generating,
which brings more economical products for the consumer.
Simultaneous Use
Generating and welding can be operated simultaneously, while welding operation won't impact on the
Waveform and voltage of the generating operation.
Perfect Welding
The unit can achieve perfect waveform of the welding voltage.
Excellent Electricity
New Automatic Voltage Regulator (AVR) and damper winding further enhance the electricity performance
with extremely low voltage regulation and minimum waveform distortion.
Easy Maneuver Ability
Light weight and compact design improves on-site maneuverability and save a lot of storage space.
And its two or four durable castors are helpful to its easy transportation.
Wide Application
The welding arc is super smooth to get the perfect welding quality in all kinds of the applications.
Furthermore, its welding current regulation is wide enough to suit most of welding rods.
Parameter
| Model | WTG300SE |
| Rated Current (A) | 270 |
| Rated Voltage (V) | 21-34 |
| Welding Current Range (A) | 50-300 |
| Applicable Electrode (φ) | 1.2-6.0 |
| Duty Cycle | 300A/20%, 270A/60% |
| Generator Voltage Waveform Distortion Rate | 8% |
| Phase | Single/Three Phase |
| Frequency (Hz) | 50/60 |
| Rated Output (kw) | 8.0/8.5 |
| Rated Voltage (V) | 110,120, 220, 230, 240/380, 400, 415 |
| Power Factor | 1.0/0.8 |
| Model | WTG2V78FE-1 |
| Max. Output(HP) | 20 |
| Displacement(cc) | 680 |
| Type | V-twin cylinder, 4-stroke, OHV, Air-cooled |
| Compression ratio | 8.5:1 |
| Starting System | Electric |
| Lubrication System | Forced lubrication |
| Cooling System | Air cooled |
| Fuel Tank (L) | 25L gasoline |
| Oil Capacity (L) | 1.6 |
| Noise Level(at 7m) | 77 |
| Dimension(LXWXH)mm | 1220x680x760 |
| G.W (kg) | 280 |
