MTU Diesel Genset

Name: MTU Diesel Genset
Brand: WANTONG
SKU: 107769321
Availability: InStock

Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

WANTONG

Model Number:

WT2-MT

Contact Supplier Request Quote Chat Now

Fuan Wangwantong Electric Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name WANTONG

Model Number WT2-MT

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Power 510KW-2400KW

Rated Voltage 400/230V, 380/220V, etc.

Specifications

coupled with MTU diesel engine
genset rated power: 510-2400KW
reliable performance

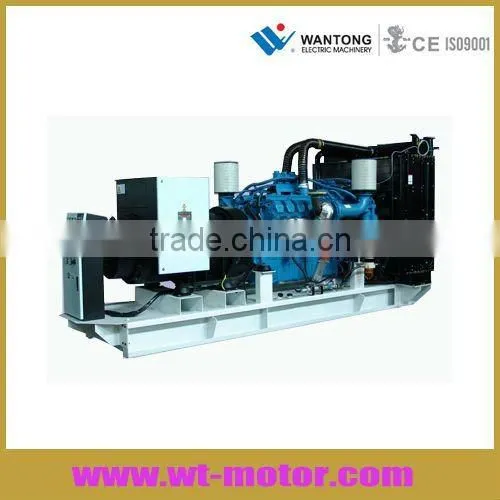

MTU Diesel Genset

WANTONG-MTU high-power Gen Sets adopt electronic fuel injection diesel engine produced by world-famous German DAIMLER—CHRYSLER MTU. The history of MTU can be traced back to the 18th century of mechanical times. Now, following its good traditions, MTU comes out top among manufacturers of engines in the world owing to its unexampled advanced technology. The high quality of MTU engines is identical with the concept of reliably, advanced technology, high-class performance, environmental consciousness and long service life

1. equipped with excellent MDEC digital management system, It can self-inspection, fault alarm instructions, records storage etc.

2. lowest fuel consumption compare with other engines in the world.(189g/kw.h)

3. longer service life compare with other engines in the world, every 30000 accumulated running hours for a periodical maintenance.

4. the exhaust emission completely meet the German TALUFT standard, American CARB and EPA standard

Alternator

Engine can be coupled with WT series A.C. synchronous brushless alternator.

It can also be matched with STAMFORD, LEORY SOMER, MARATHON alternator.

Controller system

1. Standard control panel, including voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module, oil level indicator, emergency button, preheating button, battery voltage gauge, hours running counter for protection and transfer.

2. It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch, etc. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation, etc.

Techanical Data

Genset Model	Gensets power (KW)		Engine model	Engine power(kw)		Fuel consumption		Cylinder BoreStroke (Qtymmmm)	Displacement (L)
Genset Model	Prime	Standby	Engine model	Prime	Standby	g/kw.h	L/h	Cylinder BoreStroke (Qtymmmm)	Displacement (L)
WT-MT700	510	560	12V2000G25	580	638	203	138.52	12×130×150	23.88
WT-MT856	640	685	12V2000G65	695	765	202	165.16	12×130×150	23.88
WT-MT1000	728	800	16V2000G25	810	890	198	188.68	16×130×150	31.84
WT-MT1100	800	880	16V2000G65	890	979	198	207.32	16×130×150	31.84
WT-MT1250	904	1000	18V2000G65	1000	1100	195	229.41	18×130×150	35.82
WT-MT1375	1000	1100	12V4000G21R	1102	1212	199	258	12×165×190	48.7
WT-MT1500	1120	1200	12V4000G23R	1205	1325	195	276.44	12×165×190	57.2
WT-MT1650	1240	1320	12V4000G23	1420	1562	189	315.74	12×165×190	57.2
WT-MT1800	1320	1420	12V4000G23	1420	1562	189	315.74	12×165×190	57.2
WT-MT2000	1450	1600	12V4000G63	1575	1733	223	413.21	12×170×210	57.2
WT-MT2200	1640	1800	16V4000G23	1798	1978	192	406.14	16×170×210	76.3
WT-MT2400	1760	1900	16V4000G63	1965	2162	220	508.59	16×170×210	76.3
WT-MT2500	1820	2000	16V4000G63	1965	2162	195	450.79	16×165×190	81.84
WT-MT2750	2000	2200	20V4000G23	2200	2420	192	496.94	20×170×210	89.81
WT-MT3000	2200	2400	20V4000G63	2420	2662	192	546.64	20×170×210	89.81
WT-MT3200	2400	2600	20V4000G63L	2590	2849	192	585.04	20×170×210	89.81
