Specifications
genset prime output: 2250KVAcoupled with Googol diesel engine
low oil consumption
reliable performance
small volume

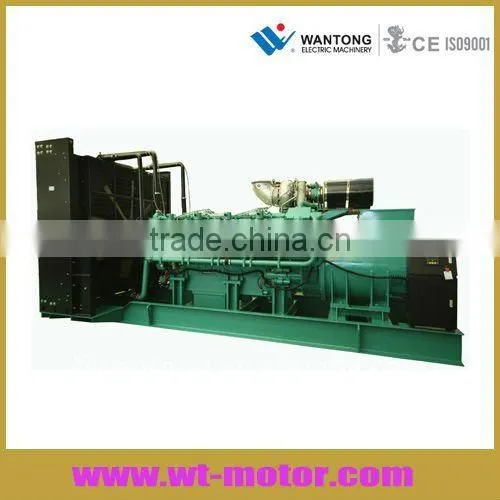

2250KVA Googol Diesel Generator

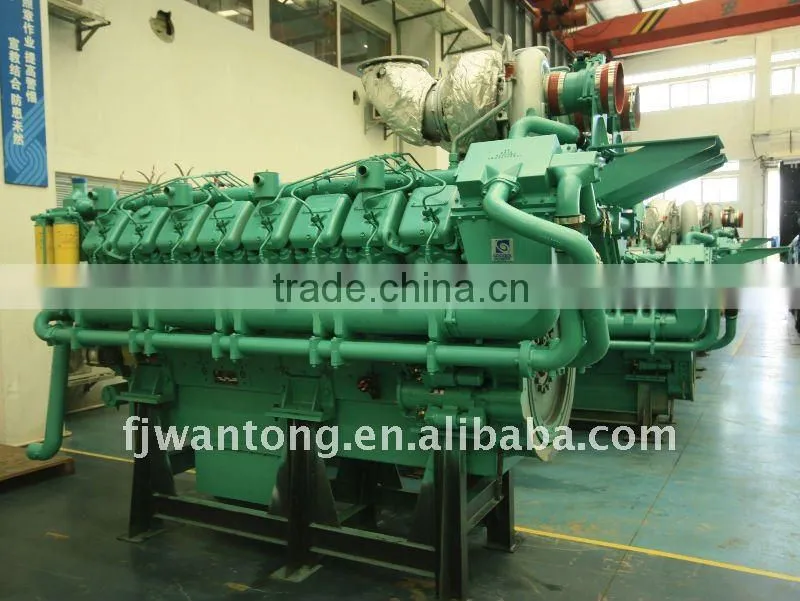

Engine:
Chongqing Googol Engine-Tech Co., Ltd was founded in 2006. The shareholders are American Googol Power-Tech Co., Ltd (49%) and Guangdong Honny Power-Tech Co., Ltd (51%). WANTONG-Googol diesel generator sets adopt P & Q series diesel engines from Chongqing Googol. The genset power range is from 200KW to 1800KW. The bore dimension is from 128mm to 170mm with 6 - 16 cylinders by in line and V type.
Alternator
Engine can be coupled with WT series A. C. synchronous brushless alternator
It can also be matched with STAMFORD, LEORY SOMER, MARATHON alternator.
Controller system
1. Standard control panel, including voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module, oil level indicator, emergency button, preheating button, battery voltage gauge, hours running counter for protection and transfer.
2. It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch, etc. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel.
Technical Data
Engine type
Genset
Engine details 400V, 50HZ, 1500rpm
Gensets size & N.Weight
Prime
Standby
Prime
Standby
Cylinder Qty
Bore*Stroke
Displacement
Fuel consumption
KW
KW
KW
pcs
mm
L
L/hr
mm
KG
QTA4320-G5
1800
2250
1933
2141
8V
170*195
70.8
428.27
6000*2600*2800
13500
