Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 5kW Diesel Welding Generator

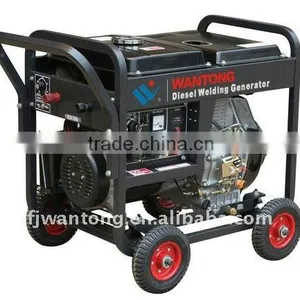

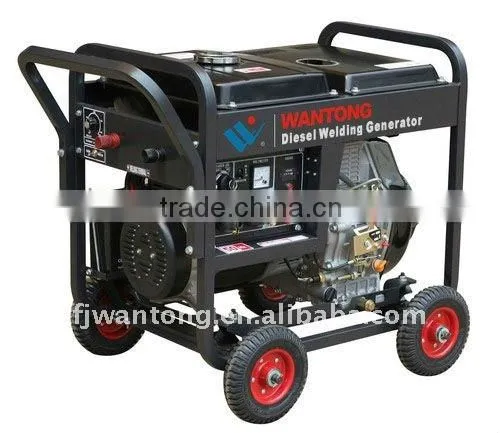

5kW Diesel Welding Generator
Negotiable
MOQ: 8 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WANTONG
Model Number:
GP200DWE-C1
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
WANTONG
Model Number
GP200DWE-C1
Output Type
AC Single Phase
Speed
1500/1800rpm
Frequency
50/60Hz
Rated Power
5kW
Rated Voltage
220v,230v,240v,110/220v,115/230v,120/240v, 220/380v,230/400v
Rated Current
39.2/19.6A
Specifications
5kW Diesel welding Generator1. Rated Output: 5KW
2. Manufactory supply
3. CE, ISO9001 approved
4. 12 months warranty
5kW Diesel welding Generator
| Model | WTD6000(E) | ||
| Generator | Rated frequency(HZ) | 50 | 60 |
| Rated output(KVA) | 5.0 | 5.5 | |
| Max.output(KVA) | 5.5 | 6.0 | |
| Rated voltage(V) | 115/230V | 120/240V | |
| Rated currdnt(A) | 39.2/19.6 | 41.7/20.8 | |
| rated speed(r/min) | 3000 | 3600 | |
| Phase NO | Single Phase | ||
| Power factor (cosφ) | 1.0 | ||
| Insulation grade | B | ||
| Pole numder | 2 | ||
| Excitation mode | Self-excitation and constant voltage(AVR) | ||
| Panel type | General Panel | ||
| DC Output | 12V/8.3A | ||
| Structure type | Open | ||
| Noise level(at 7m) | 95dB | ||
| Engine | Engine Model | WT186FA | |
| Engine type | Single cylinder, Four stroke, Vertical, Direct injection | ||
| Cooling system | Air cooled | ||
| Compression ratio | 19:1 | ||
| Cylinder No.-bore×stroke | 1-86*72mm | ||
| Displacement [cc] | 418 | ||
| Rated power kW(Hp)/(r/mir) | 5.7/3000 | 6.3/3600 | |
| Lubrication system | Pressure splashed | ||
| Fuel type | 0#(summer)-10#(winter)-20#(chillness) diesel | ||
| Fuel consumption g/kWH | 275 | 281 | |
| Starting System | Electric starter | ||
| Lube capacity | 1.65L | ||
| Battery capacity | 12V 33Ah | ||
| Genset | Fuel Tank Capacity [L] | 15 | |
| Continuous running time | 6hours | ||
| Dimension:L×W×H(mm) | 720*500*650 | ||
| Net weight (Kg) | 138 | ||
| Welding | No load welding voltage: 50V DC | ||
| Welding operating voltage: 25 to 32V DC | |||
| Welding current adjustment: 50 to 180A DC | |||
| Insulation class: F | |||
| Duty type, S6 60% | |||
