Tower Crane QTZ80(TC5613)

Name: Tower Crane QTZ80(TC5613)
Brand: YGONG
SKU: 107764429
Availability: InStock

US$ 1 - 75,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

-10-+40

Rated Loading Capacity:

Ningbo Yinzhou Feihu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application -10-+40

Rated Loading Capacity 6T

Max. Lifting Load 6T

Max. Lifting Height 140M

Span 56M

Place of Origin Jiangxi, China

Brand Name YGONG

Model Number QTZ80

Specifications

Tower Crane
1.upper swing self-climbing tower crane
2. ISO9001:2008,CE certificate
3.robot welding and painting line

Tower Crane

Mechanism load rate		Hoisting Mechanism				M5
		Slewing Mechanism				M4
		Pulling Mechanism				M4
Hoist Height (M)		Time			Independent				Dependent
		α=2			39				140
		α=4			39				80

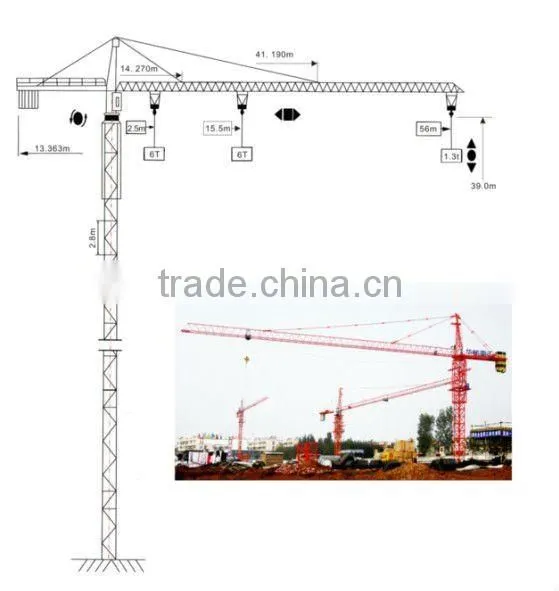

Max Weight (T)		Boom length 56 meters			Boom length 50 meters				Boom length 44 meters
		6			6				6
Amplitude(M)		Max			56
		Min			2.5
Hoisting Mechanism	Time	α=2					α=4
	Speed(M/Min)	8.5	40	80			4.25	20			40
	Hoisting Weight(T)	3	3	1.5			6	6			3
	Power(KW)	5.4	24	24			5.4	24			24
Slewing Mechanism		Speed		0~0.6 (M/Min)
		Moment		95(N.m)
Pulling Mechanism		Speed(M/Min)				20				40
		Power(KW)				2.2				3.3
Jacking Mechanism		Speed				0.55~0.7 M/Min
		Operating Pressure				25 Mpa
		Power				7.5 KW
Counter Weight		Hoisting Boom Length(M)				Counter Weight(T)
		57				13.5
		51				11.5
		45				9.2
Total Power		32.8 Kw (without Jacking Mechanism motor power)
Working Temperature(°C)		-10~+40
