Large Led Video Board for Sports

Large Led Video Board for Sports thumbnail-1
Large Led Video Board for Sports photo-1
US$ 1 - 8,000 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LAMP
Size:
according to customer's request
Contact Supplier Request Quote Chat Now
Shenzhen Lamp Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LAMP
Size according to customer's request
Shape rectangle
Anti-wind Ability strong




Large led video board



Main Features

1.Full color sports perimeter broadcasting display is specially designed for the sports stadium.

2.It’s optimized for advertising and broadcast.

3.Inimitable soft rubber cover is used for protecting both players and LED screen.

4.Easy fo installation and dismantle.

5.Soft rubber front surface to protect players.

6.High brightness and adjustable.

7.Folding supporting structure design.

8.Other indoor&outdoor play grounds.



Specification

Pixel pitch (mm) P10 P12 P16
Pixel Configuration 1R,1G,1B 1R,1G,1B 1R,1G,1B
Module Dimension
(L × H ) mm*mm		 160 ×160 192 × 192 256 × 128
Module Resolution
(L × H) pixels*pixels		 16 × 16 16 × 16 16 × 8
Cabinet Dimension
(L × H×W) mm*mm		 800 × 640 768 × 576 768× 768
Cabinet Resolution
(L × H) pixels*pixels		 80 × 64 64 × 48 48 × 48
Density (pixels / m2) 10,000 6,944 3,906
Brightness Density (>=cd/m2) 5000 5500 5500
Drive mode 1/4 scanning 1/2 scanning static
Best Viewing distance (m) 10~200 15~200 20~200
Power consumption (Average)
(w/ m2)		 500 440 537
Power consumption
(Max) (w/ m2)		 1100 1100 1343
Viewing angle Horizontal angle: 120 degree ; Vertical angle: 120 degree
Gray scale 16384 gray scale in each Red,Green,Blue color
Kinds of Color 68.7 billion kinds
Refresh Velocity 60 frame/sec(minimum)
Ingress protection IP Front IP 65, Rear IP 43
Refresh Rate 600HZ(minimum)
Display Life 100,000 hours(minimum)
Display MTBF 10000 hours
Blind Pixels Rate 0.0001(minimum)
Working Voltage AC220V±15% 47~64HZ
Effective Control Distance 100m (kind 5 cable) / 1000m or more (Optical fiber)
Operation temperature - 20°C ~ + 60°C
Operation Humidity 10% ~ 90% RH

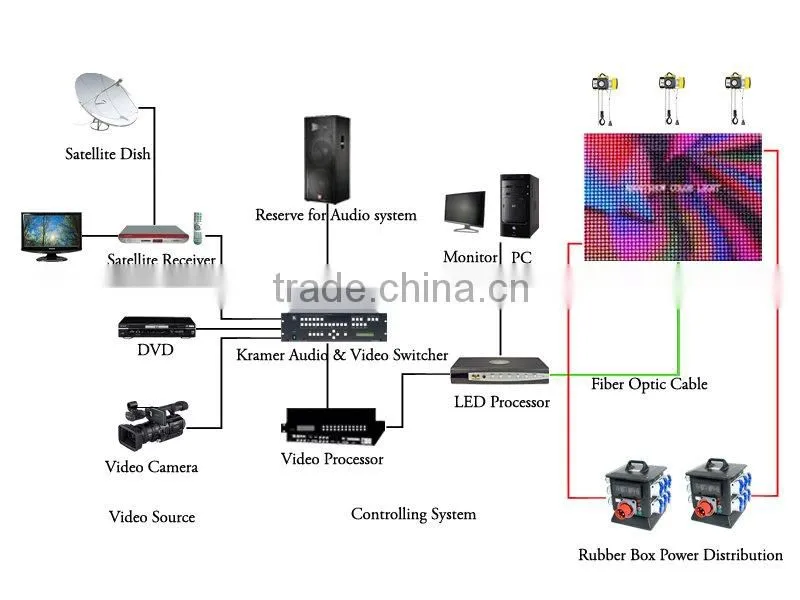

System Diagram





Our service

After-sale service:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.
