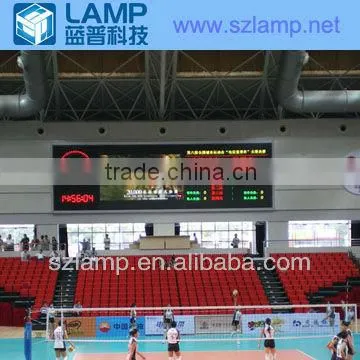

LAMP Led Video Board in the Stadium

LAMP Led Video Board in the Stadium thumbnail-1
LAMP Led Video Board in the Stadium photo-1
US$ 1 - 8,000 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LAMP
Size:
according to customer's request
Contact Supplier Request Quote Chat Now
Shenzhen Lamp Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LAMP
Size according to customer's request
Shape rectangle
Anti-wind Ability strong


led video board



Main Features

1.Full color sports perimeter broadcasting display is specially designed for the sports stadium.

2.It’s optimized for advertising and broadcast.

3.Inimitable soft rubber cover is used for protecting both players and LED screen.

4.Easy fo installation and dismantle.

5.Soft rubber front surface to protect players.

6.High brightness and adjustable.

7.Folding supporting structure design.

8.Other indoor&outdoor play grounds.



Specification

Pixel pitch (mm) P10 P12 P16
Pixel Configuration 1R,1G,1B 1R,1G,1B 1R,1G,1B
Module Dimension
(L × H ) mm*mm		 160 ×160 192 × 192 256 × 128
Module Resolution
(L × H) pixels*pixels		 16 × 16 16 × 16 16 × 8
Cabinet Dimension
(L × H×W) mm*mm		 800 × 640 768 × 576 768× 768
Cabinet Resolution
(L × H) pixels*pixels		 80 × 64 64 × 48 48 × 48
Density (pixels / m2) 10,000 6,944 3,906
Brightness Density (>=cd/m2) 5000 5500 5500
Drive mode 1/4 scanning 1/2 scanning static
Best Viewing distance (m) 10~200 15~200 20~200
Power consumption (Average)
(w/ m2)		 500 440 537
Power consumption
(Max) (w/ m2)		 1100 1100 1343
Viewing angle Horizontal angle: 120 degree ; Vertical angle: 120 degree
Gray scale 16384 gray scale in each Red,Green,Blue color
Kinds of Color 68.7 billion kinds
Refresh Velocity 60 frame/sec(minimum)
Ingress protection IP Front IP 65, Rear IP 43
Refresh Rate 600HZ(minimum)
Display Life 100,000 hours(minimum)
Display MTBF 10000 hours
Blind Pixels Rate 0.0001(minimum)
Working Voltage AC220V±15% 47~64HZ
Effective Control Distance 100m (kind 5 cable) / 1000m or more (Optical fiber)
Operation temperature - 20°C ~ + 60°C
Operation Humidity 10% ~ 90% RH



System Diagram

 LAMP led video board in the stadium





Shenzhen LAMP Technology co., LTD was founded on the core value of professional integrity with the ultimate goal of complete customer satisfaction. With our 20,000 square meters office dedicated to Sales & Marketing, Customer Support, R&D and Manufacturing located, now LAMP is active in more than 90 countries and employs more than 500 staff. Its service network has covered Asia, Europe, America and Africa. In 2011 LAMP posted sales of 50 million USD.



We clearly understand that people need distinct solutions when facing different applications. With our rich engineering experience and solid R&D background, after years’ efforts, we are proud to be a turn-key solution provider for your business. As with advertising, we not only provide a reliable LED display, but also B/S based structure, user-friendly professional advertising software to ultimate your investment. Concerning rental and staging, we provide you with durable, easy-setup, uniquely designed products as well as high end video processing equipment. When it comes to sports display, we provide a full range of software and hardware to play advertising, show scores and live show. For more details, Contact us today!
