Help CenterElectrical Lamp Post
Related Products
Specifications
1) electrical lamp post2)hot dip galvanized
3)5m-15m height
4)Octagonal, round
5)Lower cost
Advantages
1)Higher quality lower cost to win the competitive price.
2)Less land occupation
3)Warranty of quality: More than 15 years.
4)3 production lines to ensure fast delivery date.
5)OEM, ODM service.
6)Skilled manufacturer, quality control and technical team.
Process of production
Material preparation-flatting-cutting on the bias-bending-welding-repair and grinding-reforming-flushing-fix bottom plate-welding bottom plate-opening door-welding door strip, electric strip, and locking-bending arm-hot dip galvanization-plastic powder painted-inspection-shipment.
Packaging Detail and delivery

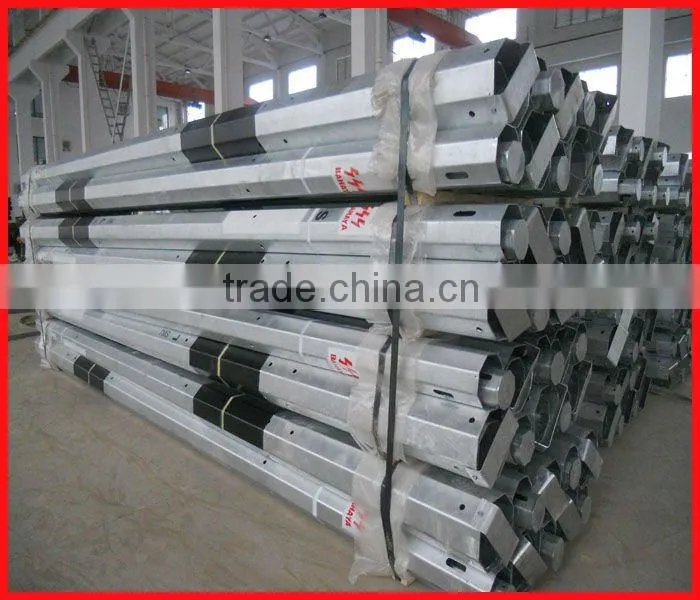

Our electrical lamp post usually covered by woven bag, or following client’s requirements, photos below for reference. and 15 days for a 40ft container quantity; or following the discussion between buyer and seller.
Features of production
Material: |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
Pole’s height |
3m –15m |
length |
Within 16m once forming without slip joint |
Wall thickness |
2.3mm-30mm |
Pole's Shape: |
Round, Octagonal |
Arm type: |
Single arm, Double arm, Tri-arm, Four-arm |
Application: |
electric power parts |
welding |
It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
Painting color: |
Refer to client’s requirement and then according to (RAL)Color card |
Finishing |
Hot dip Galvanizing antirust. |
Temperature range |
-35 °C~+45 °C |
Max wind velocity |
Aganist wind pressure of 160Km/h |
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
Ground mounted |
The length buried underground as per customer’s requirement. |
Quality Control |
We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
Certificates |
ISO9001-2008, SGS Audited Supplier, The AAA grade certificate of goodwill |
Other |
Less land occupation & easy maintenance. |
After service
Our staffs will ask for the information of the product carefully after sale , meeting your need as soon as possible.
Company faith
Basing on the faith of “cordiality, industriousness“, conforming to the quality policy of “high quality, high performance , innovation, aiming at global market“, and the managing tenet of “products with no defect, service with no limit“, we shall create more bright future together with you.

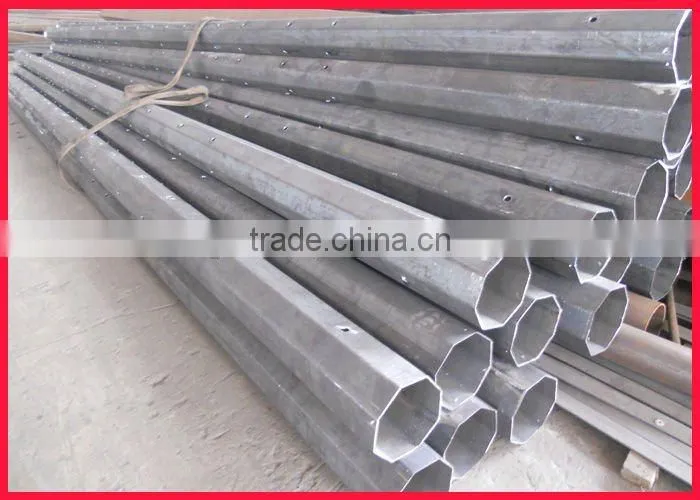

Half finished product

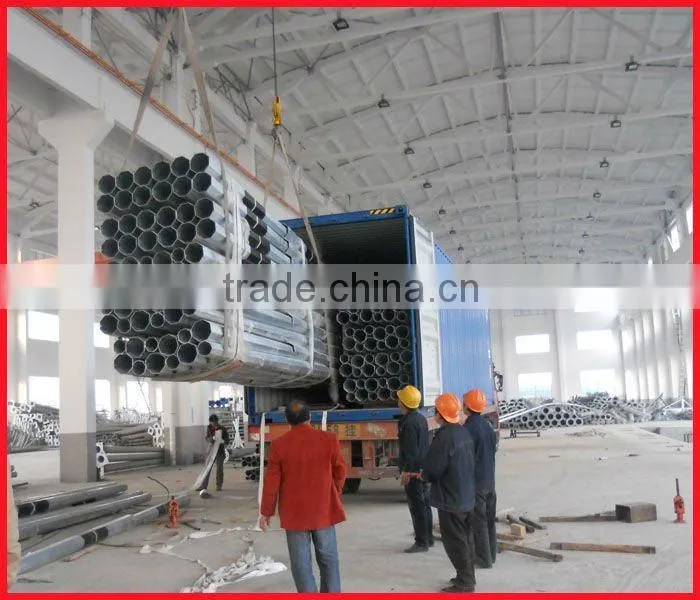

Loading
Photo of welding details
Photo of inspections and quality control
Photo of production process
Our Main equipments 1
Our Main equipments 2
