Specifications
led module1.slim and light
2 fan-less design makes a quiet display
3 high power efficiency
4 easy and fast installation
led display module
Main Features
1. Soft rubber louver design
Seamless connection, easy for after service; black rubber enhances the contract ratio performance.
2. A sharp picture
6mm pixel pitch delivers a sharp picture to your audience.
3. Mounting
Rigging structure with standard hanger fits for most installation conditions.
Product Features
*******************************************************************************************************

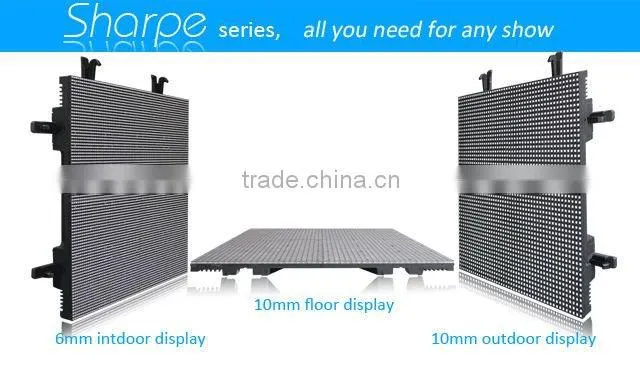

It probably be the first design in the industry that integrated the same structure for indoor rigging, outdoor rigging and floor display.This special design will give you the most flexibility for any show, it could be an indoor moto show, a concert touring with floor display, or an outdoor business event.
*******************************************************************************************************
General Features:
Full protection under harsh environment
Sharpe series are made from aluminum mold, strong and precise; Full waterproof cabinet with IP65 power and data connector enables its wide application through any events that take place indoor or outdoor.
Slim and light
It could be one of the thinnest LED displays in the industry; with only 50mm depth, the weight is only 9.5kg. You can carry two panels at one time! Your installation stuff could not be more satisfied.
Fan-less design makes a quite display
Thanks to the integrated mold design, the thermal conductivity is very good and we could get rid of fans cooling. This quite display is very important for some of your event like concert touring.
High power efficiency
Unlike most of the product in the industry, we designed a double layer power supply system which is from AC-DC and DC-DC. This system enhances the power transforming efficiency to a high level of 83%.
Easy and fast installation
The inter-locker is fast and easy, free your hands from any other complicated tools.
Unbeatable color performances
Sharpe 10mm is equipped with MBI5042 16bit diving IC, DBSTAR controlling system. The high refresh rate, vivid color processing guarantees you a high-end broadcasting show.
Product Specification
| Pixel Pitch: | 4 mm | 6 mm | 10 mm | 10 mm floor |
| Brightness: | 1500 cd/sqm | 2000 cd/sqm | 7800 cd/sqm | 4500 cd/sqm |
| LED Configuration: | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel Density: | 62500 pixels/sqm | 27777 pixels/sqm | 10000 pixels/sqm | 10000 pixels/sqm |
| Viewing Angle(Vertical): | 140° | 140° | 140° | 140° |
| Viewing Angle(Horizontal): | 140° | 140° | 140° | 140° |
| Recommended Viewing Distance: | >4 m | >6 m | >10 m | >10 m |
| LED Lifetime: | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Power Consumption(Maximum): | 900 W/sqm | 860 W/sqm | 1000 W/sqm | 860 W/sqm |
| Power Consumption(Average): | 450 W/sqm | 420 W/sqm | 500 W/sqm | 420 W/sqm |
| Processing: | 12 bit | 12 bit | 12 bit | 12 bit |
| Refresh Rate: | 400Hz | 400Hz | 1200Hz | 1200Hz |
| Scan Mode: | 1/8 scanning | 1/5 scanning | Static | Static |
| Input Voltage: | 90 to 260VAC,50/60Hz | 90 to 260VAC,50/60Hz | 90 to 260VAC,50/60Hz | 90 to 260VAC,50/60Hz |
| Cabinet Material: | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Protecting Louver: | Rubber | Rubber | Aluminum | PC |
| Weight: | 9.0 kg/cabinet | 9.0 kg/cabinet | 9.5 kg/cabinet | 11.5 kg/cabinet |
| Mounting: | Rigging | Rigging | Rigging | Floor stack |
| Max Rigging Load: | 12 cabinets | 12 cabinets | 12 cabinets | Not Applicable |
| Cabinet Dimension(W*H*D): | 480*480*50 mm | 480*480*50 mm | 480*480*50 mm | 480*480*60 mm |
| Cabinet Resolution: | 120*120 pixels | 80*80 pixels | 48*48 pixels | 120*120 pixels |
| Load Weight On Surface: | Not Applicable | Not Applicable | Not Applicable | 1000 kg/cabinet |
| Humidity Range: | 10% to 99% | 10% to 99% | 10% to 99% | 10% to 99% |
| Protection Rating: | IP40 | IP40 | Front IP65; Rear IP54 | Front IP65; Rear IP54 |
| LED Processor | DBSTAR | |||
| Controlling Distance: | 100m via CAT05/Maximum 10km via Fiber Optic(Single mode) | |||
| Signal: | DVI upto UXGA,SDI, HD-SDI, HDMI,S-video(Via Video processor) | |||

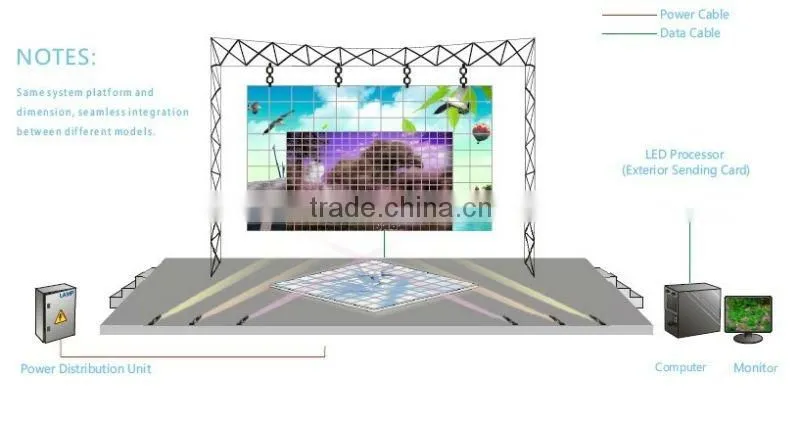

System diagram
