Baoli Forklift Machine

Baoli Forklift Machine thumbnail-1
Baoli Forklift Machine photo-1
US$ 4,500 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
BAOLI
Contact Supplier Request Quote Chat Now
KION Baoli (Jiangsu) Forklift Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name BAOLI
Model Number CPCD15~10,CPQD15~35,CPD15~30
Type Other, Engine forklift
Power Souce Other, Diesel/gasoline/LPG/AC electric/DC electric
Rated Loading Capacity 1000kg~100000kg
Max. Lifting Height 2500mm~6000mm
Min. Lifting Height 140mm
Fork Length 920mm~2420mm
Fork Width 120mm
Overall Dimensions 1860mm~4258mm
Certification ISO9001, ISO14001, CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Forklift
Rated capacity(ton):1.5~10
Max height(m):2.5~6.5
Made in Chinese cost,German standard
ISO9001, CE



About KION Baoli forklift:



     KION Baoli is fully integrated into the global operations of KION Group. KION pursues a multibrand strategy based on it Linde, STill, OM, Baoli and Voltas brands. Baoli develops, manufactures, distributes and services forklift trucks. As a brand of KION Group, Baoli focuses on the global economy market segment.



The KION Baoli product line includes 1T to 10T diesel/gasoline/LPG forklifts, electric forklifts and warehouse trucks.KION Baoli has a comprehensive sales and service network, with presence in more than 80 countries.



General Manufacturer   KION Baoli
Model   CPCD15F
CPQD15F		 CPCD18F
CPQD18F		 CPCD20F
CPQD20F		 CPCD25F
CPQD25F		 CPCD30F
CPQD30F		 CPCD35F
CPQD35F
Power type   Diesel/Gasoline/LPG
Rated capacity kg 1500 1750 2000 2500 3000 3500
Load center mm 500 500 500 500 500 500
Dimension Lift height                                                       H mm 3000 3000 3000 3000 3000 3000
Free lift height                                               H4 mm 162 162 140 140 145 145
Fork size                                               L x W x T mm 920x100x40 920x100x40 1070x120x40 1070x120x45 1070x125x45 1070x130x45
Mast tilt angle                                             α/β deg 6/11 6/11 6/11 6/11 6/11 6/11
Front overhang                                               X mm 408 408 484 489 494 500
Overall
dimension		 Length to fork face             L1 mm 2255 2305 2564 2634 2775 2814
Overall width                       B1 mm 1080 1080 1150 1150 1236 1236
Mast lowered                     H1 mm 1995 1995 2050 2050 2080 2230
Mast extended                   H3 mm 4042 4042 4040 4040 4273 4273
Overhead gu                       H2 mm 2100 2100 2150 2150 2180 2180
Turning radius                                                 R mm 2070 2120 2220 2290 2400 2490
  Travel speed (full load/no load) km/h 12/14 12/14 17/19 17/19 18/19 18/19
  Lift speed (full load/no load) mm/sec 460 460 470 470 430 400
Max. grade ability % 20 20 20 20 20 15
Service weight kg 2740 3000 3510 3810 4320 4620
Chassis Tyre Front                                                            6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28x9-15-12PR 28x9-15-14PR
Rear   5.00-8-10PR 5.00-8-10PR 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Thread Front                                   B2        mm 890 890 970 970 1000 1000
Rear                                   B3 mm 920 920 970 970 970 970
Wheelbase                                                       Y mm 1450 1450 1650 1650 1700 1760
Ground clearance
(full load/no load)		                          M mm 95/110 85/110 85/105 85/105 110/135 110/135
Frame                 F 100/110 100/110 140/145 140/145 170/175 170/175
Engine Type Diesel engine Gasoline engine
Model ISUZU
C240PKJ		 Yanmar
4TNE98		 Mitsubishi
S4S		 Nissan
K21		 Nissan
K25
Rated output (kw/rpm) 34.5/2500 44.3/2300 38/2300 31.2/2250 37.4/2300
Rated torque (N.m/rpm) 139/1800 206/1700 176/1800 143/1600 176/1600
No. of cylinder 4 4 4 4 4
Bore x stroke (mm) 86x102 98x110 94x120 89x83 89x100
Displacement (L) 2.369 3.319 3.331 2.065 2.488
Truck model CPCD
15/18/20/25/30F-W		 CPCD
30/35F-Y		 CPCD
30/35F-M		 CPQD
15/18/20F-H		 CPQD
25/30/35F-H



 Baoli forklift machine

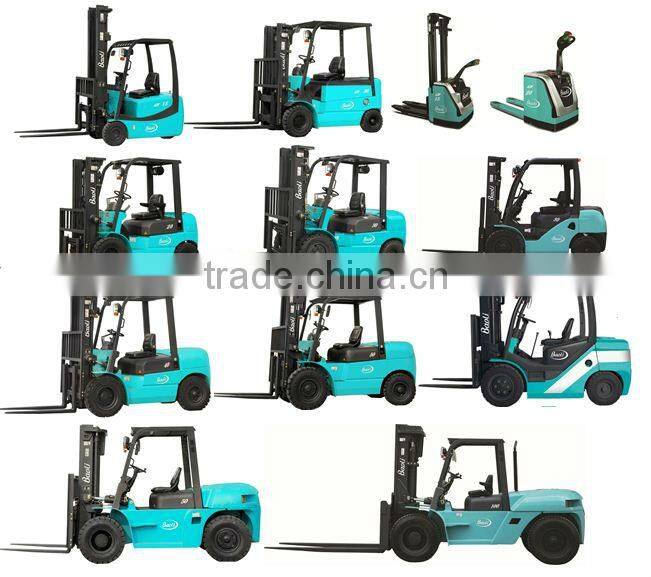

Baoli Forklift Trucks Gallery:

Baoli forklift machine



Factory Gallery:

Baoli forklift machine





Quality communications between Baoli and customers:

Baoli forklift machine





Baoli at the exhibitions:



Baoli forklift machine







Industry Certificates:

Baoli forklift machine
