Piercing Machine

Piercing Machine thumbnail-1
Piercing Machine thumbnail-2
Piercing Machine thumbnail-3
Piercing Machine thumbnail-4
Piercing Machine thumbnail-5
Piercing Machine thumbnail-6
Piercing Machine photo-1
Piercing Machine photo-2
Piercing Machine photo-3
Piercing Machine photo-4
Piercing Machine photo-5
Piercing Machine photo-6
US$ 110000.00 - 110000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SY
Model Number:
two-roller skew rolling piercer
Contact Supplier Request Quote Chat Now
Taizhou Shuangyang Precision Seamless Steel Tube Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SY
Model Number two-roller skew rolling piercer
After-sales Service Provided Engineers available to service machinery overseas
Product Description

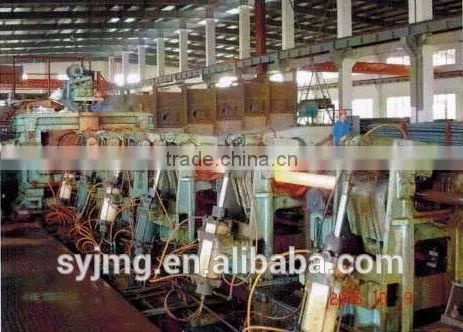

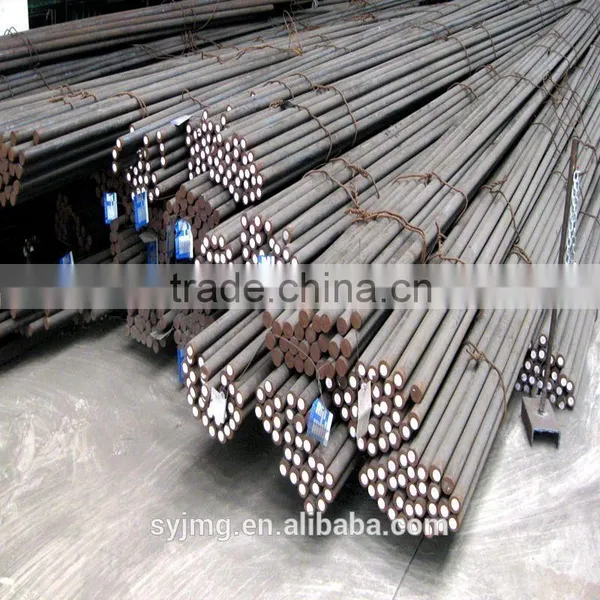

This is a two-roller skew roller type piercing machine which is mainly applied to produce hollow shells from round bars which are heated to designed temperature. Piercing machine is mainly composed of main transmission system, steadier and support bar locking system, output table and electric control sytem.





Parameters of two-roller skew rolling piercer



No.

Parameter Name

Unit

LXC50

Strengthen

LXC90

Low pressure

1

Billet

Max. OD

mm

45-75

65-130

3

Length

m

1000-1800

1500-2500

4

Hollow

OD

mm

46-78

67-145

5

WT

mm

2.8-8.0

3.5-20

6

Length

mm

   ≤5500

≤7500

7

No. Of steadier assembly

mm

4

5

8

Support bar carriage speed

mm

2.0

1.95

9

Roller obliquity

°

8

8

10

Roller diameter

mm

350-410

480-580

11

Roller length

mm

300

450

12

Main drive

Power

KW

320

480×2

Rotate speed

rpm

985

985

13

Main reducer Type

-

ZL115

A=820

14

Speed ratio

i

8

4.5

15

Gear box

i

1

2.0

16

Universal shaft specification

-

SWC250A×2400

SWC350A×3100

17

Total power

kw

335.4

987

18

Dimension

(length×width×height)

m

22.8×3.06×2.2

29.1×3.84×2.65

19

Total weight

ton

32

65







Packaging & Shipping

  Export wooden box packing.

Our Services



Terms of Price: CIF or FOB Price all acceptable

Terms of Delivery: Within four to five  months in receipt of advance

Terms of payment: 30% by T/T in advance, the balance by T/T before shipment

Packing: wooden case packing and shipping by closed top containers

Installing: we will be send the technical person for installed
