Grain silo making machine spiral steel silo forming machine
Product Description and Technical Parameters
Product name: Spiral Steel Silo Making Machine
Product model No.: LS40

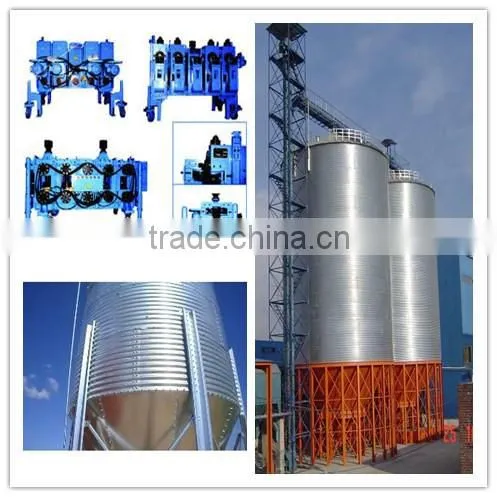

Main usages:The set of equipment can be widely used for building the storage of materials, such as grains, cements, chemical materials, sewage treatment, methane,forages and the like etc.
1.Forming machine: it can bend material and preliminary process the forming planes, meanwhile it can bend the materials to a circle with a demanded silo diameter.
2.Bending machine: it can bend the fitted forming materials to occlude together by a seam, and rotate them to be a silo.
3.Bearing support: bearing frame and support stand in circle column which enable the uplifted silo to attach upon on the basis of allowing a proper diameter of the silo; the bearing
support can bear a silo body which ascends rotationally.
4.Decoiling machine: it is rotatable; and the materials to be decoiled on it naturally without driving force.
Technical parameters:
LS40 machine is suitable for the materials with absolute bending performance, with the following thickness range:
A.Galvanized metal sheet : 2-4 mm
Width of the material: 495 mm
Usable width: about 350 mm to 370 mm for the strip materials with a width at 495 mm
Diameter range of the silo: 4M to40M
Forming and bending velocity: about 5to6 m per minute, wherein the bending velocity depends on the thickness of the material, height and weight of the silo
Driving power: the power range of the circuit without assist transmission device is 9x3 KW, namely 27KW;the assist transmission device is 4x0.25 KW, namely 1 KW,which is only used
in diameter>20m silos. So the sum is 28 KW.
Weight:
The forming machine: about 3750 kg
The bending machine: about 3600 kg
The decoiling machine: about 150 kg

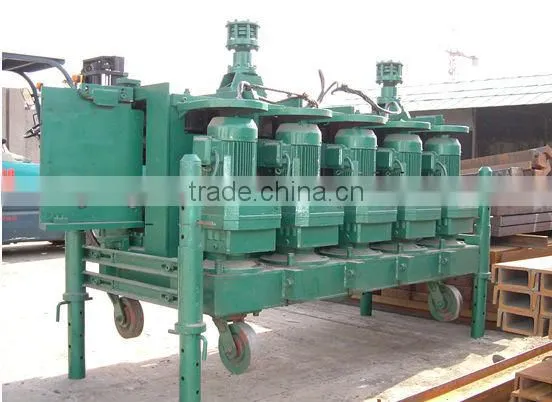

(Bending Machine)

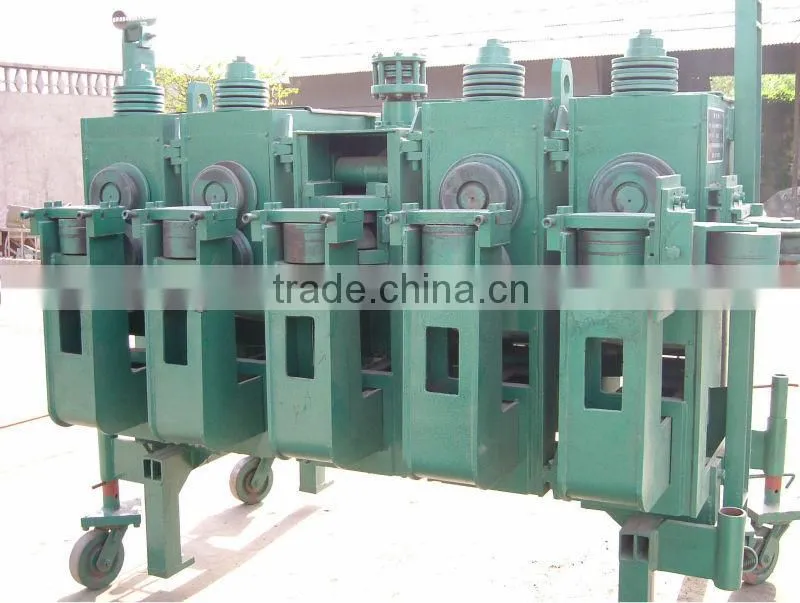

(Forming Machine)
|
Diameter range |
4m-40m |
||
|
Detailed list |
LS40 SILO MACHINERY (1 set)
|
Forming machine |
1 unit |
Decoiling machine |
1 unit |
||
Bending machine |
1 unit |
||
Bearing supports |
17units |
||
Frame works |
17 units |
||
If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.Without visiting,we can send you user manual and video
to teach you to install and operate.If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
Payment |
30%TT in advance,balance should be down before shippment |
Date of delivery |
Within 30 days after the confirmation of advance payment. |
