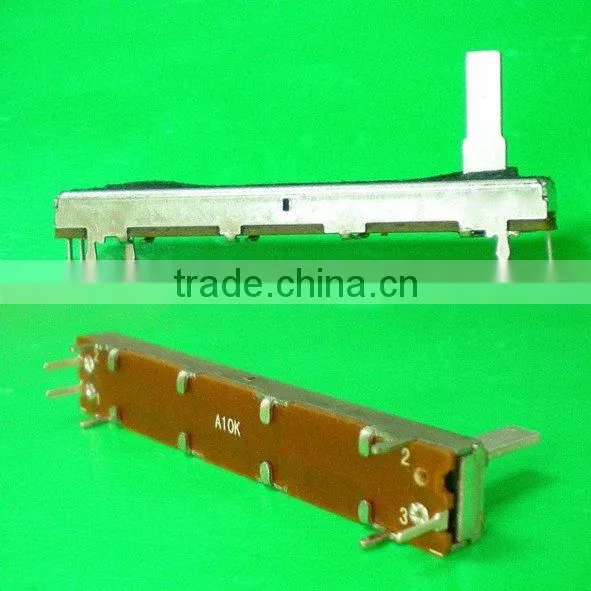

SC4521N 45 Travel Slide Potentiometer

Name: SC4521N 45 Travel Slide Potentiometer
Brand: APAI
Price: Negotiable

FOB Price

Negotiable / Piece

1500 Pieces(Min.Order)

Supply Ability 1 Piece / Pieces per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	APAI	Model Number:	SC4521N
Type:	Slide Potentiometer	Technology:	Carbon Film	Resistance:	1K-1M
Resistance Tolerance:	20%	Rated Power:	Taper B 0.25W/ Other taper 0.125W	Max. Operating Voltage:	Taper B 200V/ Other taper 150V
Operating Temperature:	-10~70

Product Description

Specifications

APAI potentiometer:
Travel=45mm
L=60mm W=9mm
Solderable with auto dipping and available in a wide variety.

APAI potentiometer:

Travel=45mm

L=60mm W=9mm

Single-unit

Solderable with auto dipping and available in a wide variety.

Various Option for you to chose!

1.Shape of Shaft: A/B/C/D shaft style

2.Length of Shaft:10/15/20mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4. Kind of Grease: light/comond/heavy handling feeling

5.Tap: with/wirhout tap

6.Wide variety of travels:30mm,45mm,60mm,100mm

7.Unit:Single-unit/Dual-unit

8.Click:with/without center click(center detent)

(mechanical characteristics)

Applications
· For control of volume, tone and balance in audio equipment.

Items	SC100304050608 Series
Operating force	30~250gf.cm
Lever stopper strength	5kgf (5mm point from mounting surface)
Lever wobble	2(2×L)/20mm max. (L:lever length both sides)
Click slip-out force (Only center click)	Operating force 20~200gf.cm

(Electrical characteristics)

Total resistance	1KΩ~1MΩ
Total resistance tolerance	±20%
Resistance taper	A, B, C, D, RD
Rated wattage(W)	Rated	Taper	15mm	20mm	30mm	45mm	60mm
	B	Single	0.05	0.05	0.1	0.2	0.2
	0	Dual	0.025	0.025	0.05	0.1	0.2
	Except B	Single	0.025	0.025	0.05	0.1	0.1
	0	Dual	0.012	0.012	0.025	0.05	0.1
Rated voltage(V)	B	0	100	100	200	200	200
Rated voltage(V)	Except B	0	50	50	150	150	150
Slider noise	47mV max.
Gang error	3dB max. (-40~0dB)
Insulation resistance	100mΩmin. at 250V DC
Voltage proof	1 minute at 300V AC
Sliding life	15,000 cycles
