Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > SC10042NH 100 Travel Slide Potentiometer

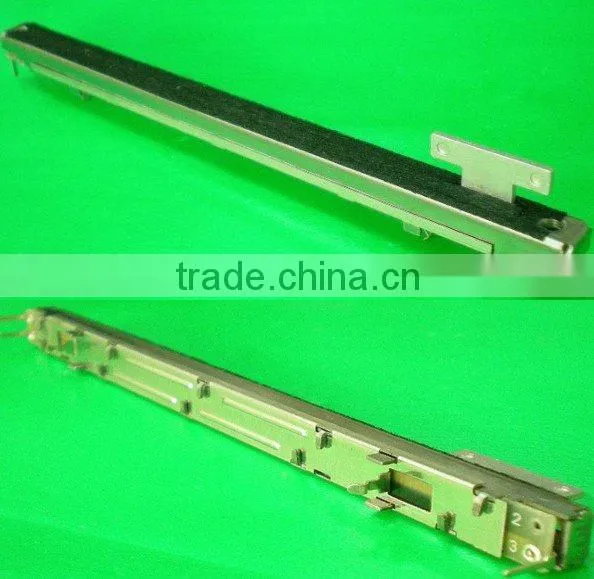

SC10042NH 100 Travel Slide Potentiometer

Name: SC10042NH 100 Travel Slide Potentiometer
Brand: APAI
SKU: 107741461

SC10042NH 100 Travel Slide Potentiometer thumbnail-1

SC10042NH 100 Travel Slide Potentiometer photo-1

Negotiable MOQ: 1200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

APAI

Model Number:

SC10042NH

Contact Supplier Request Quote Chat Now

Foshan Apai Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name APAI

Model Number SC10042NH

Type Slide Potentiometer

Technology Carbon Film

Resistance 1K-1M

Resistance Tolerance 20%

Rated Power 0.5

Max. Operating Voltage 200V AC

Operating Temperature -10~70

Specifications

APAI potentiometer:
L=128mm W=9mm
The thinnest possible body contributes to reduce size, height and weight of the set.

APAI potentiometer:

Travel=100mm

L=128mm W=9mm

The thinnest possible body contributes to reduce size, height and weight of the set.

Various Option for you to chose!

1.Shape of Shaft: A/A6/B/C/D shaft style

2.Length of Shaft:10/15/20mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4. Kind of Grease: light/comond/heavy handling feeling

5.Tap: with/wirhout tap

6.Wide variety of travels:45mm,60mm,100mm

7.Single-unit/Dual-unit

(Mechanical characteristics)

Items	SC09
Operating force	30~200gf.cm
Lever stopper strength	10kgf
Lever wobble	2(2×L)/25mm max.
Lever push-pull strength	5kgf

(Electrical characteristics)

Total resistance	1KΩ1MΩ
Total resistance tolerance	±20%
Resistance taper	A, B, C, D, RD
Rating power	B taper 0.5W Other than B taper 0.25W
Maximum operating voltage	B taper 200V AC Other than B taper 150V AC
Slider noise	68mV max. at 20mm/sec.
Gang error	3dB max. (-400dB)
Insulation resistance	100mΩmin. at 250V DC
Voltage proof	1 minute at 300V AC
Sliding life	15,000 cycles
