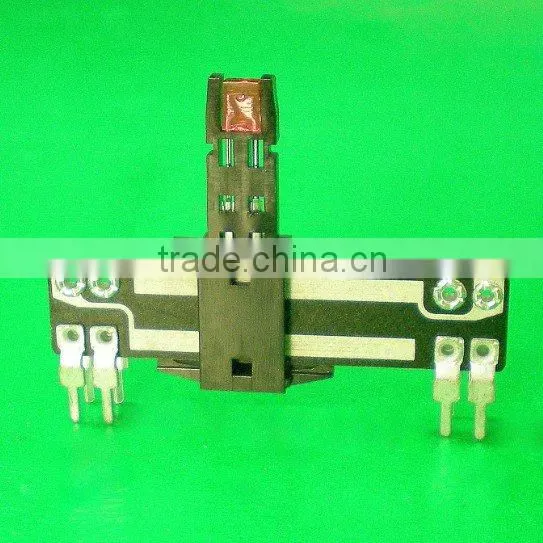

SC208G 20 Travel Slim Slide Potentiometer

SC208G 20 Travel Slim Slide Potentiometer thumbnail-1
SC208G 20 Travel Slim Slide Potentiometer photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
APAI
Model Number:
SC208G
Contact Supplier Request Quote Chat Now
Foshan Apai Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name APAI
Model Number SC208G
Type Slide Potentiometer
Technology Carbon Film
Resistance 500-1M
Resistance Tolerance 20%
Rated Power 0.05W for B taper/0.025W for other tapers
Max. Operating Voltage 200V for B taper/150V for other tapers
Operating Temperature -10~70

Specifications

APAI potentiometer:
20mm Travel
Compact size over all length=travel+20mm.
Red and green LED colors are available



APAI potentiometer:

  • 20mm Travel
  • Slim slide type
  • Lenght of shaft:14.5mm
  • Dual-unit
  • Taper and Resistance:B100K
  • Compact size over all length=travel+20mm
  • Red and yellow LED colors are available



Items

SC020304050708

Operating force

10120gf.cm

Lever stopper strength

3kgf (2mm point from mounting surface)

Lever wobble

1.6mm max. (both sides)

Click slip-out force(Only center click)

Operating force+20150gf.cm



 (Electrical characteristics)

Total resistance

500Ω1MΩ

Total resistance tolerance

±20%

Resistance taper

A, B, C, D, W

Rated wattage(W)

Rated

Taper

10mm

15mm

20mm

30mm

B

Single

0.05

0.05

0.1

0.2

0

Dual

0.025

0.025

0.05

0.1

Except B

Single

0.025

0.025

0.05

0.1

0

Dual

0.012

0.012

0.025

0.05

Rated voltage(V)

B

100

100

200

200

Except B

50

50

150

150

Slider noise

68mV max.

Gang error

3dB max. (-400dB)

Insulation resistance

100mΩmin. at 250V DC

Voltage proof

1 minute at 250V AC

Sliding life

10,000 cycles
