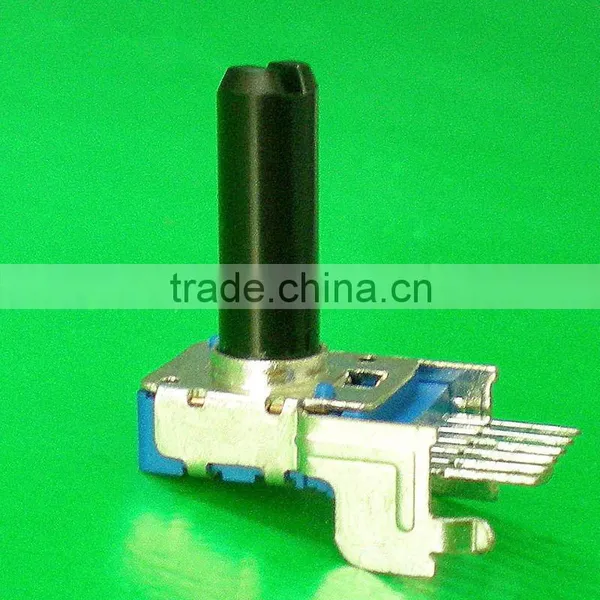

RK1115G 11mm Size Potentiometer

Name: RK1115G 11mm Size Potentiometer
Brand: APAI
SKU: 107740407
Availability: InStock

RK1115G 11mm Size Potentiometer thumbnail-1

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

APAI

Model Number:

RK1112NH

Contact Supplier Request Quote Chat Now

Foshan Apai Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name APAI

Model Number RK1112NH

Type Rotary Potentiometer

Technology Carbon Film

Resistance 5-250K

Resistance Tolerance 20%

Rated Power 0.05W

Max. Operating Voltage 50V AV

Operating Temperature 38-42

Specifications

APAI potentiometer :
A 11mm width potentiometer for audio, visual, electronic musical instruments and various applications

APAI potentiometer:

11mm Size

A 11mm width potentiometer for audio, visual, electronic musical instruments and various applications.

Various Option for you to chose!

1.Shape of Shaft: F/R/KQ shaft style

2.Length of Shaft:15/20/25/27.5/30/35/37.5mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4.Kind of Grease: light/comond/heavy handling feeling

5.Unit:Single-unit/Dual-unit

6.Click:with/without center click(center detent)

Items	RV09 Series	RV11Series		RV14Series
Items	Single-unit	Single-unit	Dual-unit	Dual-unit
Total rotational angle	280o±5o	300o±5o
Rotation torque	10 ~80gf.cm	30~200gf.cm
Rotation stopper strength	3kgf.cm	5kgf.cm (Without bushing) 6kgf.cm (With bushing)		6kgf.cm
Push-pull strength	5kgf max.	8kgf max.
Shaft wobble	0.8×L/200mm p-p max.	0.7×L/20mm p-p max. (Without bushing) 0.7×L/30mm p-p max. (With bushing)

(Electrical characteristics)

Total resistance	5 ~ 250 KΩ
Total resistance tolerance	±20%
Resistance taper	A,B,C,D,E,K,W	A,B,C,D,E,K,W	A,B,D	A,B,C,D,E,K,W,M,N
Rating power (W)	0.05W	0.05W	Maximum operating current 1mA.AC	0.05W
Maximum operating voltage	50V AC 20V DC	50V AC 20V DC	30V AV For AC only	50V AV For AC only
Slider noise	less than 100mV
Gang error	-			3dB max. (-40~0dB)
Insulation resistance	100MΩ min at 250V DC	100MΩ min at 250V DC	100MΩ min at 250V DC
Voltage proof	1 minute at 250V AC		1 minute at 500V AC	1minute at 300V AC
Rotational life	5,000 cycles		15,000 cycles	10,000 cycles	15,000 cycles
