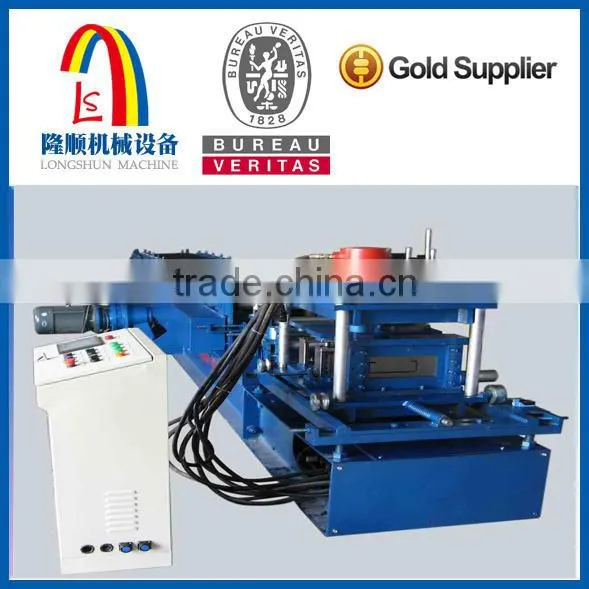

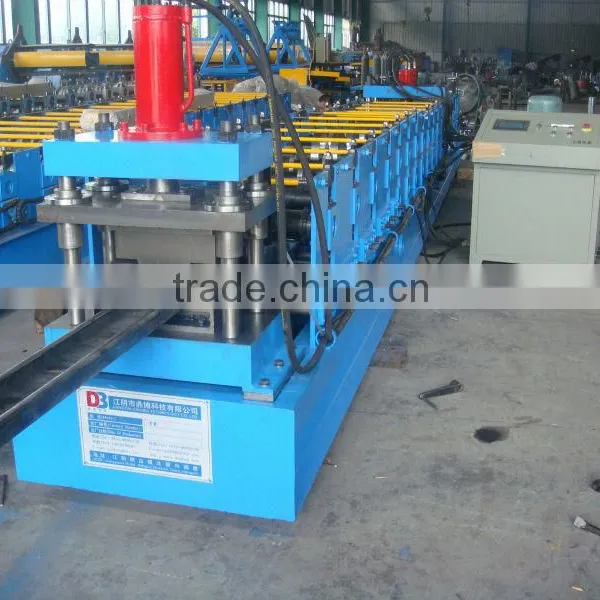

Customized C/Z/U shape steel channel making machine
We are professional machinery manufacturer, we specialize in roll forming machine more than 20 years. Our products include arch roof roll forming machine, composite sandwich plate machine, C channel machine, corrugated roof tile machine, glazed tile roll forming machine, granary machine, bending machine.
Our buyers are all around the world ,We have experienced engineers,powerful quality control team and professional oversea after-sale service team.
Our company located in the beautiful seaside city YingKou, Liaoning Province, China. Covering an area of over 18000 square meters. Near Dalian port and Yingkou port. Very convenient transportion.
Welcome to visit our factory.
1. specification
No. |
|
Main technical parameters |
1 |
dimension |
Main machine;5900mm×920mm×1400mm |
2 |
Total weight |
About 2 tons |
| ||
3 |
Power supply |
AC480V,60Hz |
4 |
Motor power |
Roll forming;5.5kw Hydraulic cutting;4.0kw |
4 |
Color steel coil |
Feeding width 60mm Effective width 30mm |
5 |
Production speed |
0-15m/min |
6 |
Forming station |
leveling;5 forming;18 leveling;3 |
7 |
Thickness of rolling |
0.5mm-0.7mm |
8 |
decoiler |
Capacity 3tons,diameter 500mm |
We need to know your required Purlin sizes and thiness. It will be the best if you have the purlin drawing. We will make the purlin machine as your requirements.
