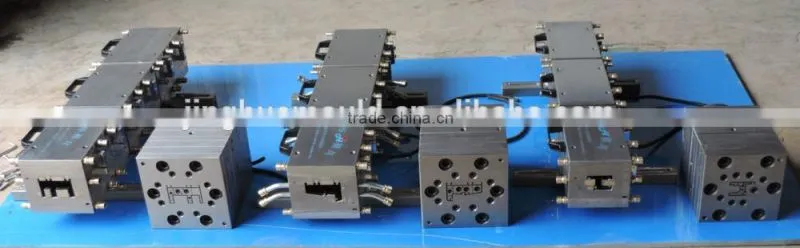

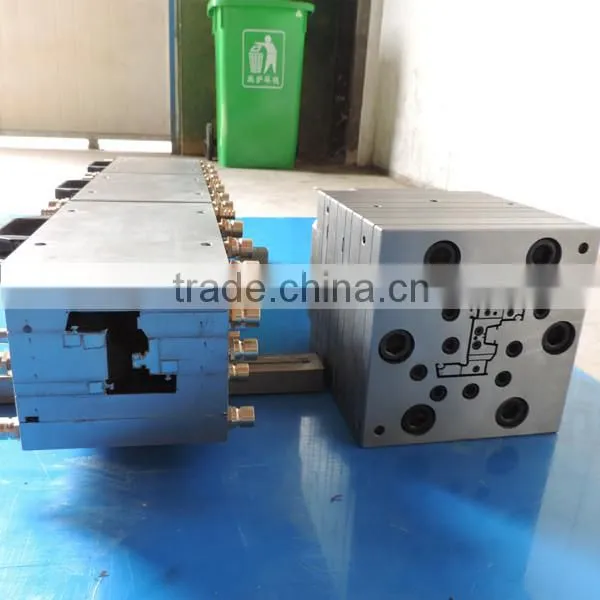

PVC coextrusion mould
Name |
PVC coextrusion mould for windows/coextrusion window mould |
Size |
Various sizes and shapes for 60 series, 70 series, et |
Mould material |
3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request |
Mould cavity |
One or multi-cavity |
Mould composition |
Die head, aluminum heating panels, calibrators and water tank |
Feature |
High polished surface, stable discharging, soft-hard, surface layer, cladding |
Test |
Mould will be tested to get the satisfy sample before delivery |
Sample |
Sample will be arranged by express for customer approval |
Service |
Provide complete set of formulation, technology and perfect after sale service |
Lead time |
30-35days |
Package & deliver |
Poly wood case for exporting, each mould will be cleaned before packing. |
Quality assurance |
ISO9001 |
Our extrusion mould advantages:
1.we are founded in 2001,.extend 14 years professional experennce gives us dominate position in extrusion moluld industry., quality and precision are the most import target of our company.our products enjoy an excellent reputation in plastic extrusion mould industry.
2.We owned a team of mature and experienced technicians,rich experiences skill workers from design, manufacture and debugging.
3.We can make all kinds of moulds according to customer requirement.The mould can be post-co extrusion, color co extrusion, embossing co extrusion, surface layer and so on.
4.Provide complete set of production process and technology transfer service
5. Flow channel systematic design is based on theoretical calculation, practical conclusion, adopting reasonable compressing ratio and stain technology according to different formula and technique

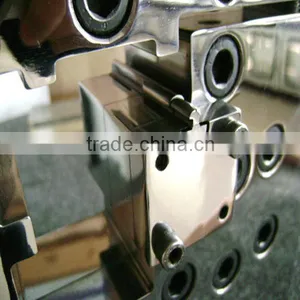

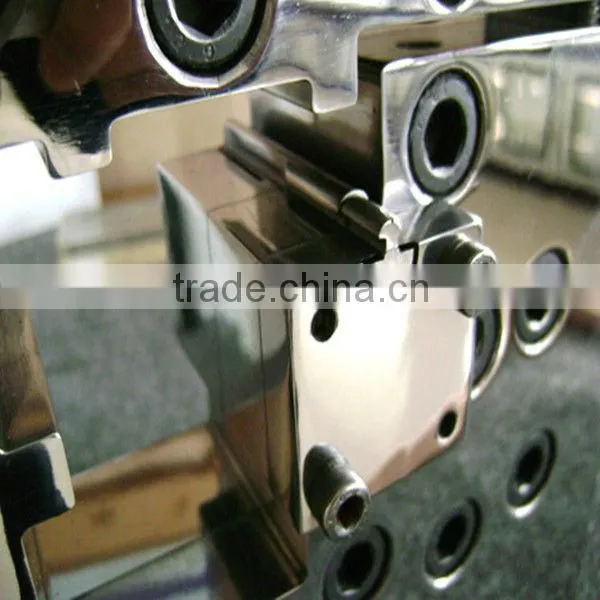

DIE
1) Die design is based on flow simulations on our computer, flow analysis and experience, that leads to excellent flow characteristics.
2) High precision positioning pin design guarantees accurate plate assembly
Calibrator
uses high efficient vacuum device and cooling system design to guarantee great quality of finished products and smooth profile surface

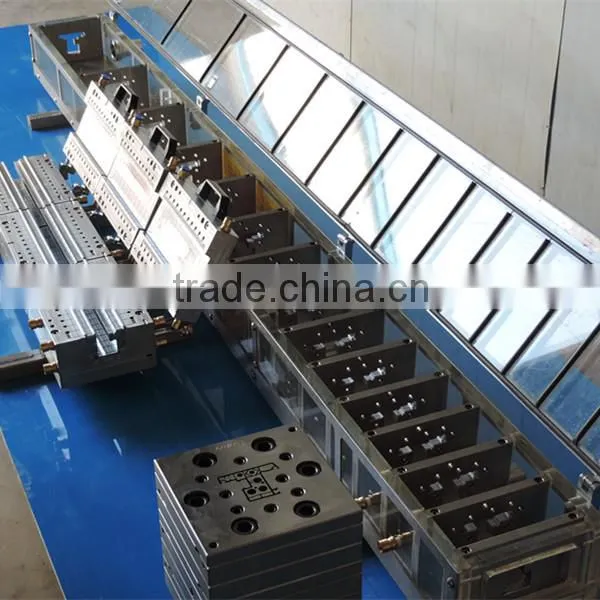

Water/vacuum tank
a) Newly designed water/vacuum tanks supply vacuum and cooling water
b) High quality materials and unique design ensures high efficient cooling and proper seal to maintain constant water and vacuum supply in the tank
c) Self adjusting templates guarantee final sizing of profile
d) Tank material available: Plexiglas or fiberglass
e) High-sealing vacuum water tank of PVC window mould adopts floating setting design, able to adjust automatically
Fine quality after-sale service:
We can provide a whole set of technical support including extruder election, formula process and extrusion mould.
1.supply mold using instrusion, mold spare parts for you
2.we have excellent test mold technicians to test the mould
3.All the moulds must be inspected and tested to reach 100% qualified
before delivery.

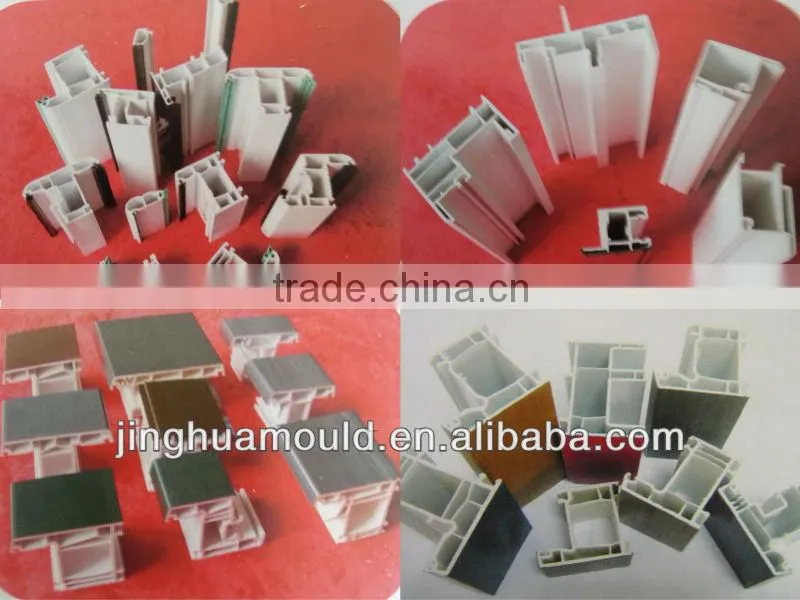

Application:
Manufacture process
Product test results
NO. |
Test Items |
Technical Requirements |
Units |
Measured Value |
Single Conclusion |
1 |
Extrusion speed |
0.8-1.8 |
m/min |
0.87 |
conform |
2 |
Yield |
>98 |
% |
99 |
conform |
3 |
Thickness deviation |
<1.2 |
mm |
0.24 |
conform |
4 |
Water absorption |
≤3.0 |
% |
1.0 |
conform |
5 |
Density |
≥0.85 |
g/ cm³ |
1.38 |
conform |
6 |
Tightness |
No leakage |
/ |
conform |
conform |
Common finished product flaws solution | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

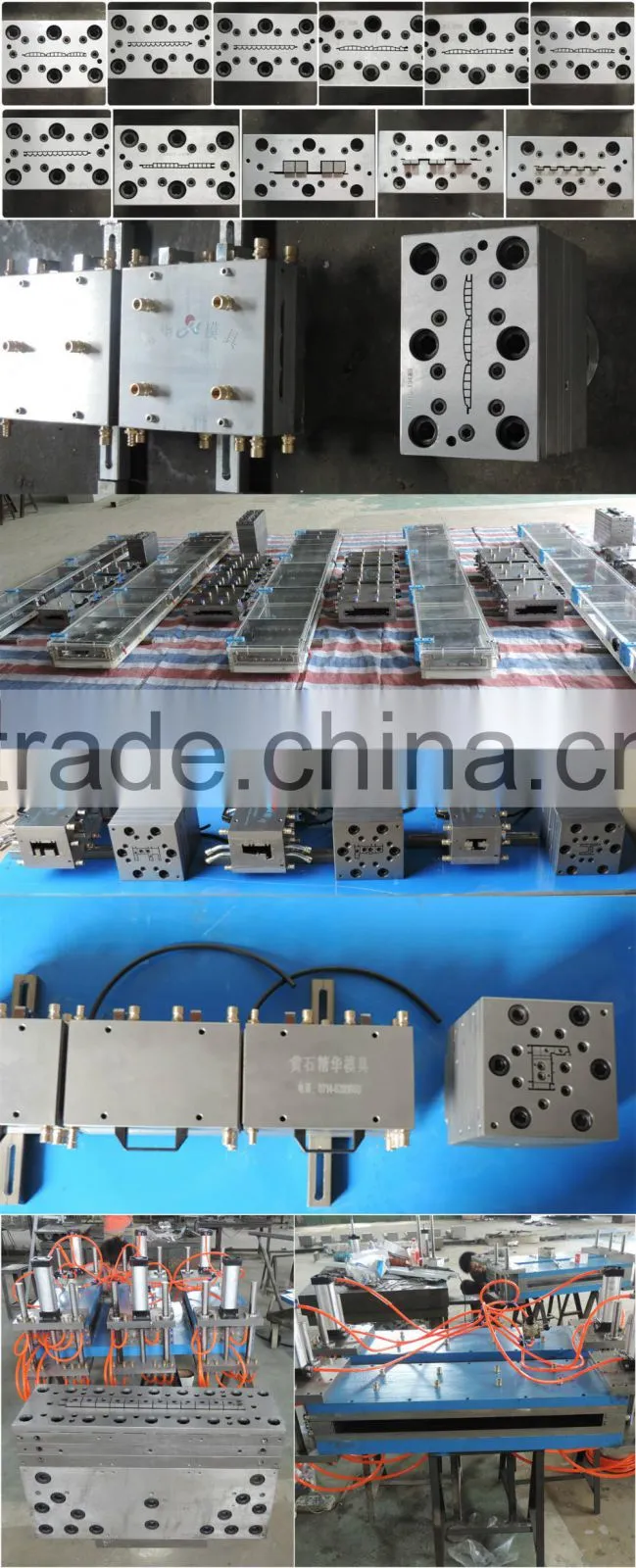

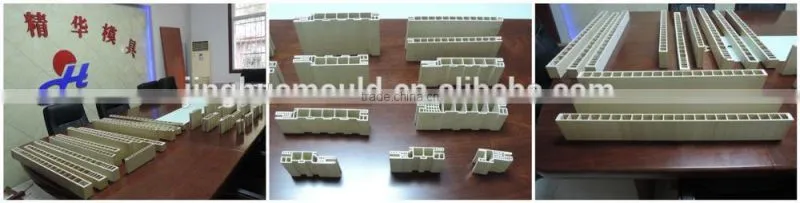

Our exported mould:
About our company:
Contact Information:
Add: Machinery Industrial Park, Huangjinshan New Area ,Huangshi,Hubei,China mainland
Wuhan tianhe airport:90 Minutes by car
If you are interested in our moulds, please feel free to contact with us and show us your sample picture or drawings.We will do our best to provide you with competitive price and professionl service!
