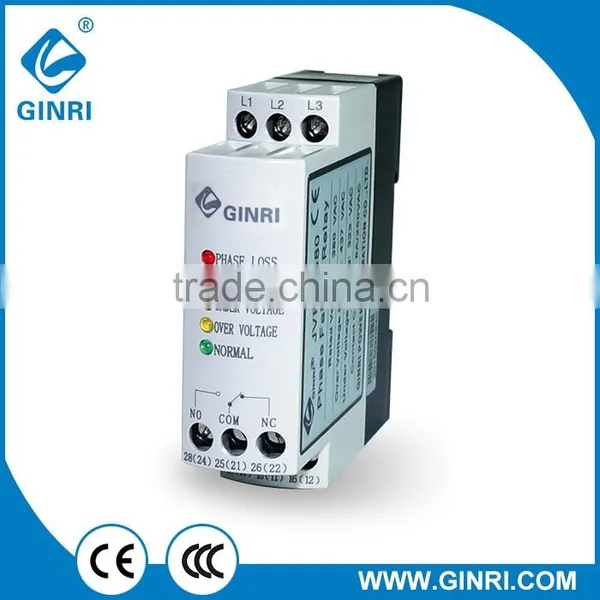

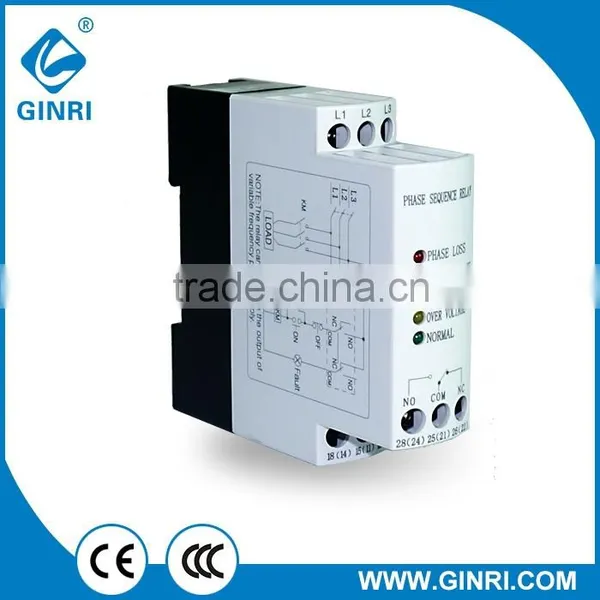

JVRD-380 Phase Sequence Phase Loss Relay

JVRD-380 Phase Sequence Phase Loss Relay thumbnail-1
JVRD-380 Phase Sequence Phase Loss Relay thumbnail-2
JVRD-380 Phase Sequence Phase Loss Relay photo-1
JVRD-380 Phase Sequence Phase Loss Relay photo-2
US$ 4.9 - 12 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GINRI
Model Number:
JVRD-380
Contact Supplier Request Quote Chat Now
Wenzhou Ginri Power Automation Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GINRI
Model Number JVRD-380
Theory Voltage Relay
Usage Protective
Size Miniature
Protect Feature Sealed
Contact Load High Power

Three-phase Voltage Monitoring Relay

JVRD-380/JVRD-440/JVRD-460





♦ Features

  -- Compact modular size

  -- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance

  -- Powered by the measuring circuit

  -- 2 C/O contacts

  -- 5 LEDs for status indication



♦ Protective Functions

  -- Phase sequence

  -- Phase loss

  -- Overvoltage

  -- Undervoltage

  -- Phase unbalance



♦ Typical Applications

    • Pumps     • Fans

    • Blowers    • Motors

    • Compressors



♦ Approvals

    • CE   • CCC



♦ Technical data



Type

JVRD-380

Measuring circuit

L1,L2,L3

Rated voltage

220VAC,380VAC ,440VAC

460VAV,480VAC,50/60Hz

Monitoring functions

phase sequence, phase loss, overvolatege, undervoltage, phase unbalance

Voltage setting range

Type suffix

Overvoltage

Undervoltage

blank

+15%

-15%

A

+10%

-10%

B

+12.5%

-10%

C

+15%

-12.5%

T

customized

Indicators

phase sequence, phase loss, overvolatege, undervoltage, and normal

Output contacts

2 C/O

Contact capacity

6A ,250VAC

Dimensions (H x W x D)

79×23×79mm

Mounting

DIN rail














































* Please contact us for further information.
