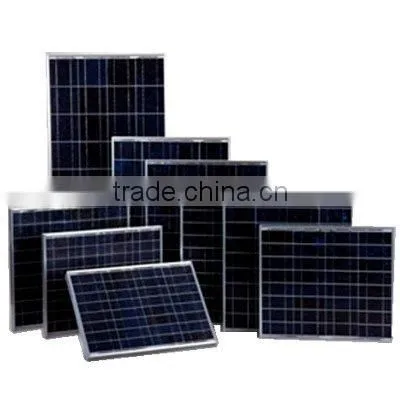

Solar Panel
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Refine |
Product Description
Specifications
Refine Solar RSM Series:85~230W
1,Standard test condition
AM1.5, 1000W/m2, 25±2.
TYPICAL ELECTRICAL CHARACTERISTICS
Type | NES60 | 6-200M | 6-210M | 6-220M | 6-230M | 6-240M |
Max-Power | Pm(W) | 200 | 210 | 220 | 230 | 240 |
Power Tolerance | (%) | ±3 | ±3 | ±3 | ±3 | ±3 |
Max-Power Voltage | Vm(V) | 28.7 | 29.2 | 29.8 | 30.0 | 30.6 |
Max-Power Current | Im(A) | 6.97 | 7.19 | 7.39 | 7.66 | 7.84 |
Open-Circuit Voltage | Voc(V) | 36.0 | 36.4 | 36.8 | 37.0 | 37.5 |
Short-Circuit Current | Isc(A) | 7.75 | 7.86 | 8.00 | 8.18 | 8.38 |
Max-System Voltage | (VDC) | 1000 | ||||
Cell Efficiency | ηc(%) | 14.1 | 14.8 | 15.5 | 16.2 | 16.9 |
Module Efficiency | ηm(%) | 12.2 | 12.8 | 13.4 | 14.1 | 14.7 |
Number,type and arrangement of cells |
| 60 pcs. Mono-Crystalline Silicon(6×10) | ||||
Cell Size | (mm) | 156×156 | ||||
No. of Bypass Diodes | (pcs. | 6 | ||||
Max. Series Fuse | (A) | 11 | ||||
Pm Temperature Coefficient | (%/) | -0.45 | ||||
Isc Temperature Coefficient | (%/) | 0.05 | ||||
Voc Temperature Coefficient | (%/) | -0.35 | ||||
NOCT-Nominal Operating Cell Temperature | () | 47±2 | ||||
MECHANICAL CHARACTERISTICS
Cable type ,Diameter and Length |
| 4mm2 ,TUV certified,1000mm |
Type of Connector |
| Compatible Type III and Type IV |
Dimension A×B×C | (mm) | 1650×992×46 |
Weight | (Kg) | 19.5 |
No. of Draining Holes In Frame |
| 8 |
Glass , Type and Thickness |
| High Transmis ., Low Iron, Tempered Glass 3.2mm. |
PACKAGING CONFIGURATION
Packing Configuration | 2 pcs./box or 20 pcs./box | |
Quantity/Pallet | 36 pcs/pallet or 20 pcs/ pallet | |
Loading Capacity | 504pcs/40ft or 520 pcs/40ft(H) |
ABSOLUTE RATINGS
Dielectric Insulation Voltage | (VDC) | 3000 max. |
Operating Temperature | () | -40~+85 |
NES 60 SERIES 200W to 240W
Solar Photovoltaic Module
I-V CURVES
I-V Curves of PV module NES60-6-230M
I-V Temperature I-V Curves of NES 60-6-230M at various cell temperature IRRADIANCE:AM 1.5,1kw/m2
I-V CURVES
Dimension(mm) A×B×C | 1650×992×46 |
Installation Hole(mm) E×F | 941×990 |
Cable Length(mm) G | 1000 |
