Model:Rsc-M125 Size(MM):125 Efficiency: up 15.5%-17.5%Refine Solar`s mono solar cells(Rsc-M125)are10%

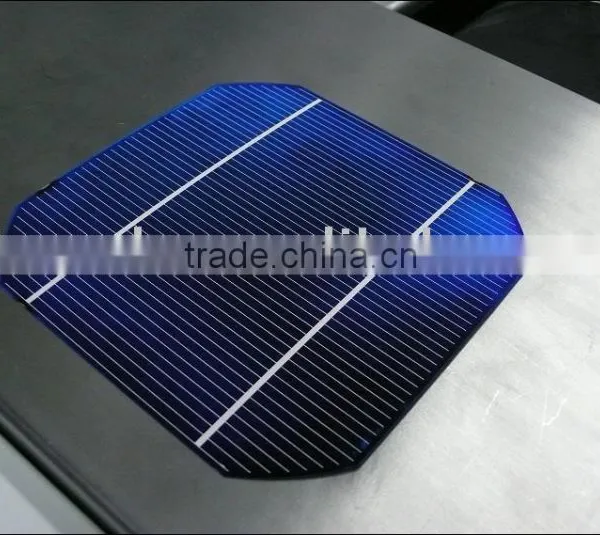

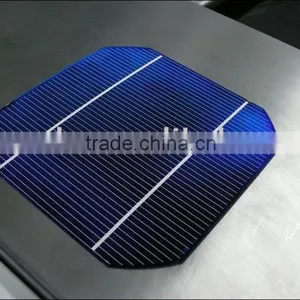

MONOCRYSTALLINE SOLAR CELLS
Model: RSC-M125 Series
Size (MM): 125
Efficiency: up to 17.8%
Refine Solars monocrystalline solar cells (RSC-M125) are 10% more powerful than ordinary multicrystalline solar cells.
MECHANICAL DIMENSION
Efficiency: up to 17.8%
Dimension: 125mm×125mm±0.5mm
Thickness: 200±20µm
Diagonal: 150mm
TEMPERATURE COEFFICIEN
Power: - 0.460%/k
Current: + 0.031%/k
Voltage: - 0.348%/k
ELECTRICAL DATA:
Model |
Efficiency |
Power |
Imp |
Vmp |
Isc |
Voc |
Eff(%) |
Ppm(W) |
Ipm (A) |
Vmp(V) |
Isc(A) |
Voc(V) |
|
RSC-M125-1740 |
17.40-17.60 |
2.60 |
5.00 |
0.520 |
5.28 |
0.630 |
RSC-M125-1720 |
17.20-17.40 |
2.57 |
4.95 |
0.519 |
5.24 |
0.628 |
RSC-M125-1700 |
17.00-17.20 |
2.54 |
4.91 |
0.518 |
5.21 |
0.626 |
RSC-M125-1680 |
16.80-17.00 |
2.51 |
4.86 |
0.517 |
5.17 |
0.624 |
RSC-M125-1660 |
16.60-16.80 |
2.48 |
4.83 |
0.516 |
5.13 |
0.622 |
RSC-M125-1640 |
16.40-16.60 |
2.45 |
4.78 |
0.515 |
5.10 |
0.620 |
RSC-M125-1620 |
16.20-16.40 |
2.42 |
4.75 |
0.513 |
5.08 |
0.618 |
RSC-M125-1600 |
16.00-16.20 |
2.39 |
4.70 |
0.510 |
5.04 |
0.616 |
Intensity W/m2 |
UMPP |
IMPP |
1000 |
1.000 |
1.0 |
900 |
0.994 |
0.9 |
500 |
0.968 |
0.5 |
300 |
0.942 |
0.3 |
200 |
0.922 |
0.2 |
