H4 Hi/lo bi-xenon HID xenon kits headlight AC 35W with slim ballast

Specifications

1. Long term lasting;
2. lumens more than 2500LM;
3. H4 Hi/low;
4. life time more than 3000 hours



High quality:100% waterproof and 100% dustproof. Resistance to heat and aging, as well as vibration tested.
Long lifetime: more than 3500 hours average lifetime. Less energy consumption.

1) Power: 35W

2) Input Voltage: 9-16V, 9~32V also available
3) Unit Size(mm): 80*62*15mm
4) Working Temperature: -40~105 degree
5) Start Currency: ≤6.5A
6) Stable Current: 3.2A
7) Min-Start: 9V
8) Shell Material: Aluminum Alloy
9) Color temperature: optional
10) Reverse- connect protect: Yes
11) Less Votage Protect: Yes
12) Over Votage Protect: Yes
13) Open Circuit Protect: Yes
14) Short Circuit Protect: Yes
15) Less Votage Input Protect: Yes
16) Over voltage Input Protect: Yes
17) Warn Boot Memory: Yes
18) Warranty: 1 year



Compatible with:
H series: H1,H3,  H3C,H4-1,H4-2,H7,H7C,H7R,H8,H9,H10,H11,H13,H13-2
9 Series:9004,9004-2,9005,9006,9007-2
D Series: D1S,D2S,D2C,D2R
Moving Series:H4-3,H13-3,9004-3
Double Lamp Series:H4-2 H13-2 9004-2 9007-2



Application:

1) fog light

2) headlight

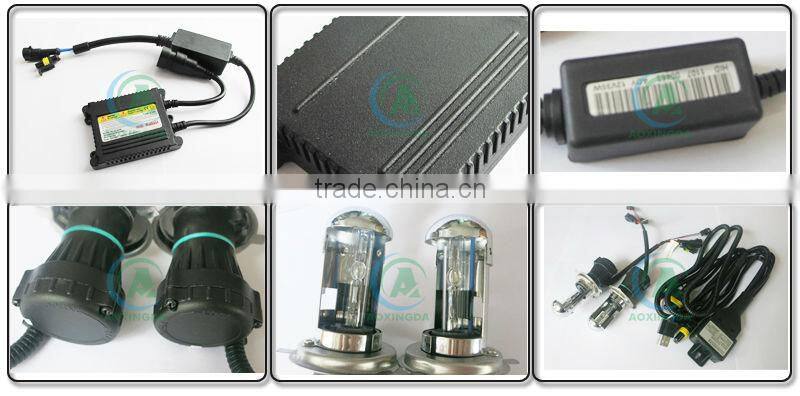

Our HID lamps:















Brief Diagram of HID Installation:
