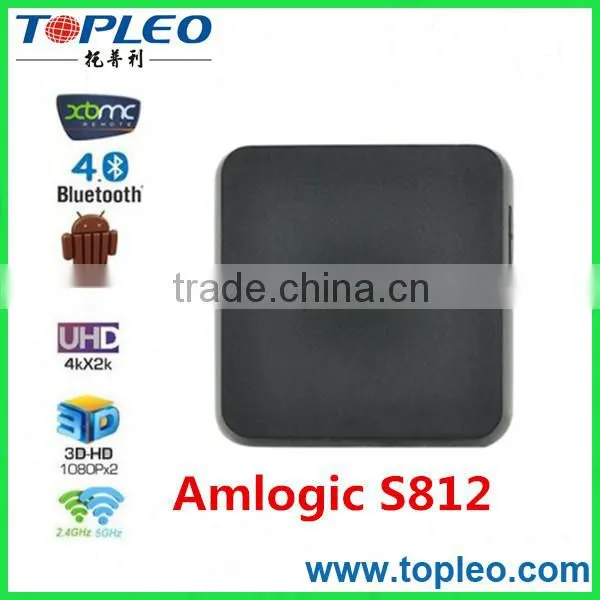

Amlogic S812 Quad Core M8S Plus Android Smart TV Box

Amlogic S812 Quad Core M8S Plus Android Smart TV Box photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ODM
Model Number:
M8S Plus
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ODM
Model Number M8S Plus

Welcome to TOPLEO

TOPLEO TECHNOLOGY LIMITED is a professional high-tech enterprise with independent R&D, production lines, marketing, after services department. We are specialized in Smart TV box, Smart watch and Self Balancing Scooter.


Having been in smart products field for 4years, we are focused on developing smart tv box products and export products to all over the world especially Europe, North America, South America.With excellent expertise, quality guarantee and attentive customer service, we have won high praise and good reputation from customers among the industry.



All of our products are strictly compliant with rules such as CE, FCC, SGS, and RoHS. The products powerful system supports a variety of language: Simplified Chinese, Traditional Chinese, English, French, German, Japanese, Russia, Polish, Dutch, Italian and Korean.







Android Smart TV Box

-Model number: M8S Plus

-Series: S812











M8S Plus TV box:

Amlogic S812 quad core M8S Plus Android smart TV BoxAmlogic S812 quad core M8S Plus Android smart TV BoxAmlogic S812 quad core M8S Plus Android smart TV Box

Amlogic S812 quad core M8S Plus Android smart TV BoxAmlogic S812 quad core M8S Plus Android smart TV Box







Specification:



Hardware
CPU Amlogic S812 Quad core Cortex A9r4 2GHz
GPU Octo-core Mali-450MP GPU up to 600MHz
3D Hardward 3D graphics acceleration
Memory DDRIII 2GB
Flash Nand Flash 8GB (4~32GB Optional)
WiFi Built in  2.4G+5G
Blutooth 4
IR Infra Remote control
LED Indicator Power ON :blue; Standby :Red
Mould Private Tooling
3G Support most external 3G USB dongle
I/O Front Key Power Key & Update Key
HDMI 1.4b up to 4K2K@30Hz,Support 3D
4*USB HOST 4 High speed USB 2.0,support U DISK and USB HDD
1*TF CARD Support 1~32GB
1*AV  Standard resolution AV
1*SPDIF Digtal audio output
1*RJ45 10/100/1000 BaseT
Power DC Adapter ( 12V/1A)
Accessories Gift box
Adapter
IR remote control
User Manual
HDMI Cable
Software
OS Android 5.1
Decoder HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Video AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
Music MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
Photo HD JPEG/BMP/GIF/PNG/TIFF
Support language Chinese , English ,Germany ,Japanese, Korea  etc.  24 languages
WiFi Hotpoint Support
Mouse/ Keyboard Support mouse and keyboard via USB
Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
XBMC Support local high-definition play, support plug-in installation and play
DRM Optional :Microsoft Playready,Verimatrix ,Google Widevine
Others support DLNA AirPlay Google TV Remote LAN Miracast 3D moive
Appliactions
Online Browse all  video websites (HTML5),support  Netflix ,Hulu ,Flicker , Picasa,Youtube,Twitter ,Facebook,etc
Apps Apps  download  freely form  android  market ,amazon appstore etc
Medium Local Media playback,support HDD, U disck ,SD card
Talk online Support  SKYPE video  call , facebook ,twitter , etc
Others Support   Email , office suit etc









Android Smart TV Box--Make your life Different!!





Advantages:

-no need to use IRQ.

-no need to open computer.
-no need to install driver

-you can plug it and play it

Amlogic S812 quad core M8S Plus Android smart TV Box

Amlogic S812 quad core M8S Plus Android smart TV Box













Working Principle:
-Connect to the internet and use the internet resources
-connect TV and make it become a family entertainment center
-Multi plots, make it have more interesting function.

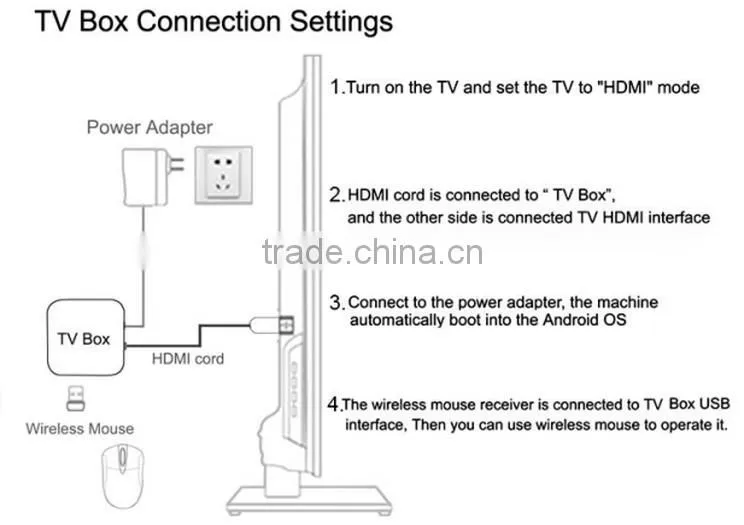

How to connect it?







TOPLEO-We always be your best friend and offer you best service.

We provide OEM/ODM Service, also welcome your sample order.









Packaging&Shipping:











FAQ:

 1. What kind of power dapater do you have?

We have US, UK, EU, AU power adapters.



2. How about your warranty?

We offer one year warranty.



3. What's your OEM/Customized Service including?

OEM/ Customized Service includes: logo printing on housing; Customize package; Software Customization: Booting image, UI, APP, Function… and so on.



Amlogic S812 quad core M8S Plus Android smart TV Box







 If you have any question, pls feel free to contact us at any time.
