Specifications

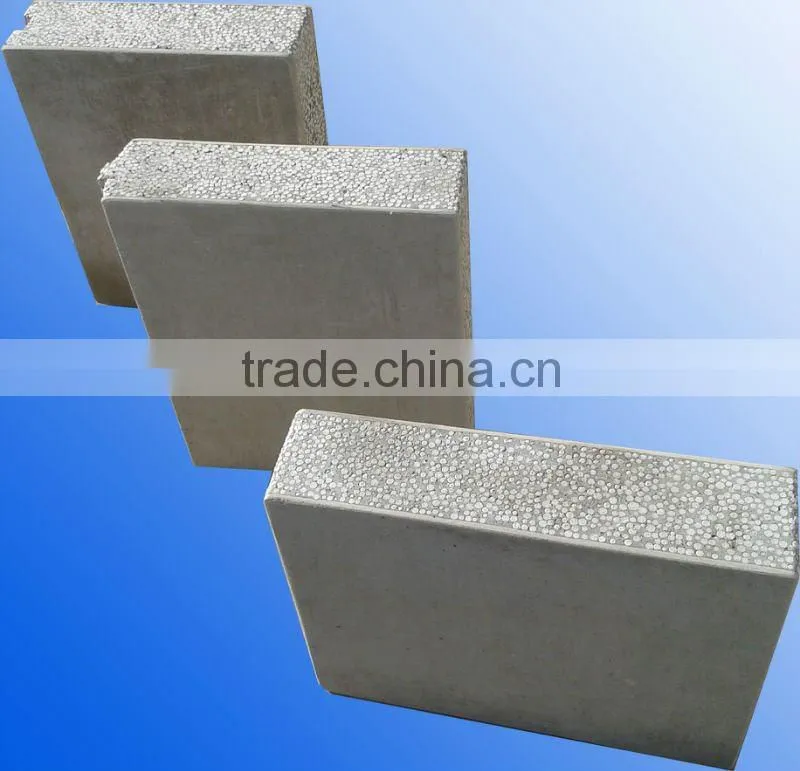

Sandwich Wall PanelCalcium silicate board(face panel) + Cement and EPS(core) + Calcium silicate board(face panel)
EPS Cement Sandwich Wall Panel
Most Advantage:
Energy-saving, light weight, environmental protection
Area-saving, sound-insulation
Waterproof, dampproof, fire-proof

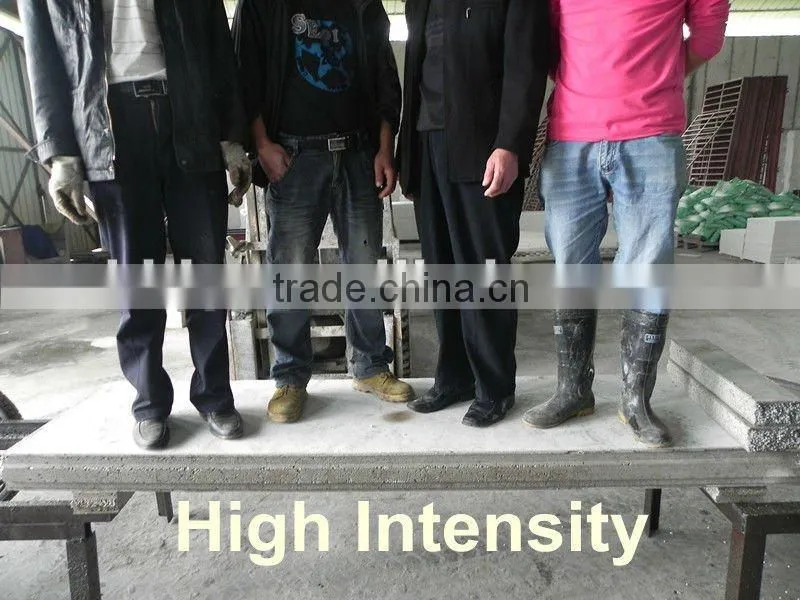

Hanging force, anti-seismic and impact resistance
Largest span and height thin webbed wall
Most civilized, environmental, high efficiency construction
Name: EPS Sandwich Wall Panel(JY-FPB1500-3000x610mm)
Brand: JY
Composition: Fibre reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, Fly ash as fillers and forming by one time compound.
Specification(L*W*T): 1500-3000x610x60,75,90,100,120,150,180mm
Remark: All kinds of wall panel can be customized by customers' specific requirements, such as density and length of panel

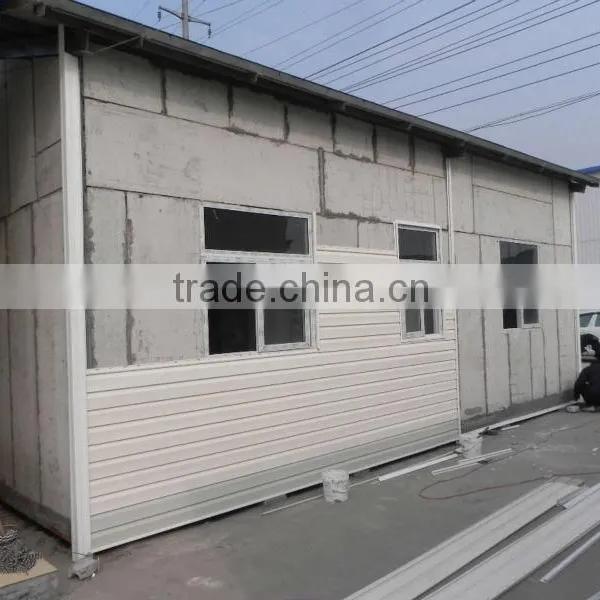

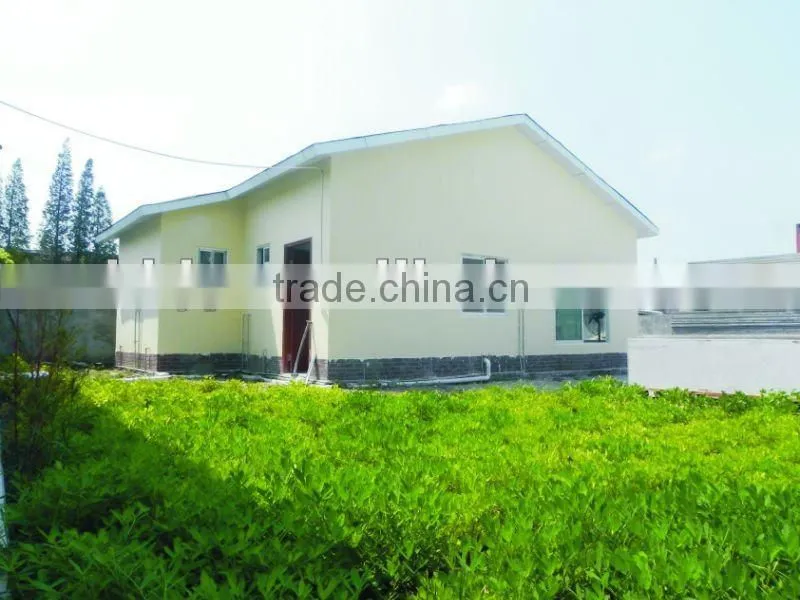

Usage: It can replace construction materials as red brick, clay solid brick,color-coated steel sandwich board, gypsum block, wire spatial grid structure perlite board, perlite porous board etc. Interior and exterior partition on steel or concrete structure building ,for new construction, additions or renovations, such as bank, office, hospital, school, workshop and so on.
Performance Index:
Thermal Conductivity(BS 874: Part 2:1986) |
0.221 W/mK |
Flexural Strength (longitudinal) |
4.27 MPa |
Flexural Strength (transverse) |
4118 N |
Moisture Movement |
0.06% |
Moisture Content |
9% |
Resistance to continuous heating |
80°C |
Surface Alkalinity |
pH 7-10 |
Non-combustibility (Face boards) |
BS EN ISO 1182: 2002 |
Heat of combustion (Face boards) |
BS EN ISO 1716: 2002 |
Building regulations classification (Face boards) |
Euro Class A1 |

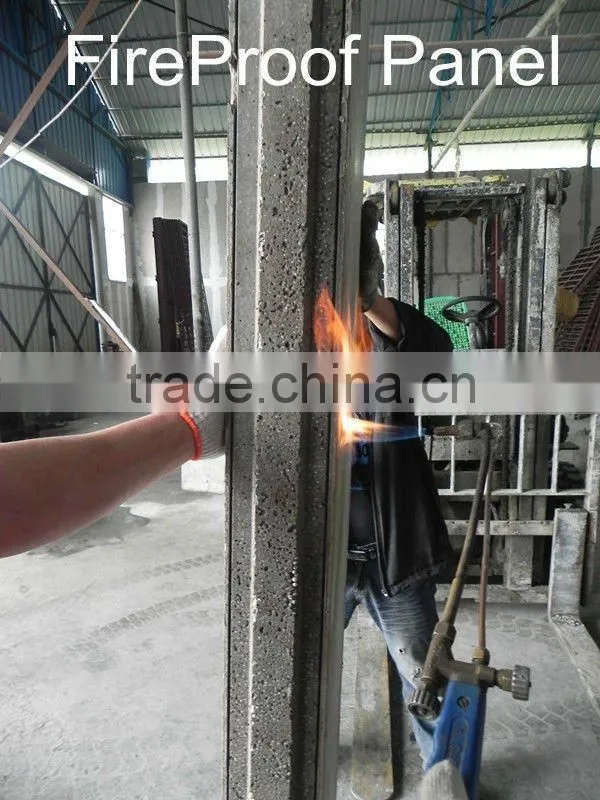

Fire rated partition |
2 hour FRP |
Water tightness to ASTM C1185 |
No droplets observed behind the panel, |
Partition stiffnesss - heavy duty grade (BS 5234: Part 2: 1992, Annex A) |
Pass |
Resistance to structural damage by multiple impacts from a large soft body |
No collapse of dislocation |
Surface damage by hard body impact - heavy duty grade |
Pass |
Effects of door slamming - heavy duty grade |
Pass |
Resistance to crowd pressure - heavy duty grade |
No collapse or damage |
Heavy weight anchorage (high level wall cupboard) eccentric downward |
No damage or detachment of anchor |
Anchorage Load |
45kg |
Acoustic performace |
|
Welcome your enquiry, we shall with highly pleausre to service for you.:-)
