What can our impact crusher do?

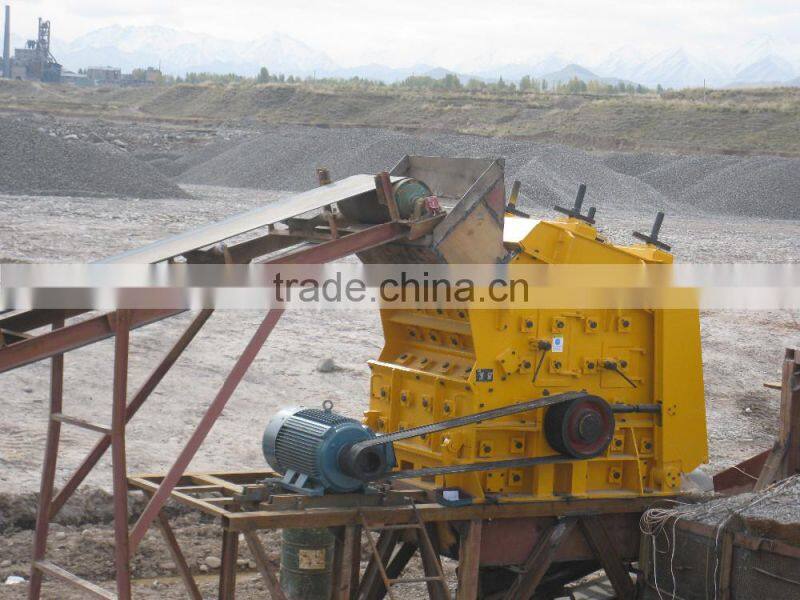

Hongji Limestone Impact crusher machine 2016 are powerful in size reduction for crushing of stone, ore, limestone, rock, and refractories. The final products of impact crusher are of good cubic shapes and are fine for railway, road construction and other industries. Our impact crushing equipments are accurate, reliable and have perfect performance. We manufacture and supply portable, stationary impact crushing plants and equipments.

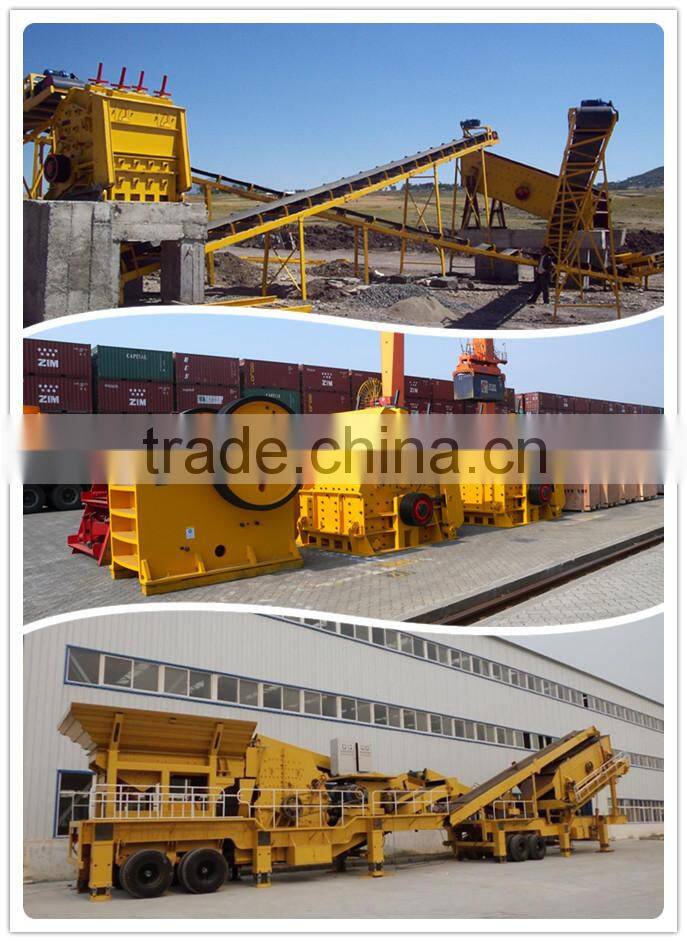

special designed high performance mobile impact crusher/mobile crushing station
- High chrome hammers
- Liner board is made of wearable materials;
- Specially designed tooth impact plate;
-
Excellent cubical final product

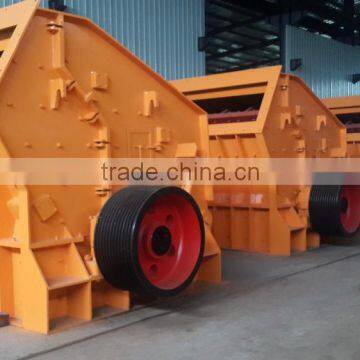

Stone Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates of our impact crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1,2,3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it's discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator.
Production Line working machines
Capacity (tph) |
Equipment name |
Equipment model |
Q’ty |
Motor power (kw) |
20-30 |
Vibrating feeder |
GZD750x2500 |
1 |
5.5 |
Jaw crusher |
PEF250x400 |
1 |
18.5 |
|
Impact crusher |
PF0807 |
1 |
45 |
|
Vibrating screen |
3YK1235 |
1 |
5.5 |
|
30-50 |
Vibrating feeder |
GZD850x3000 |
1 |
7.5 |
Jaw crusher |
PEF400x600 |
1 |
30 |
|
Impact crusher |
PF1008 |
1 |
55 |
|
Vibrating screen |
3YK1235 |
1 |
5.5 |
|
50-70 |
Vibrating feeder |
GZD850x3000 |
1 |
11-15 |
Jaw crusher |
PEF500x750 |
1 |
55 |
|
Impact crusher |
PF1010 |
1 |
75 |
|
Vibrating screen |
3YK1545 |
1 |
15 |
|
70-120 |
Vibrating feeder |
GZD960x3800 |
1 |
15 |
Jaw crusher |
PEF600x900 |
1 |
75 |
|
Impact crusher |
PF1210 |
1 |
132 |
|
Vibrating screen |
3YK1848 |
1 |
22 |
|
130-180 |
Vibrating feeder |
GZD1100x4200 |
1 |
15 |
Jaw crusher |
PEF600x900 |
1 |
75 |
|
Impact crusher |
PF1214 |
1 |
160 |
|
Vibrating screen |
3YK1854 |
1 |
22 |
|
160-250 |
Vibrating feeder |
GZD1100x4900 |
1 |
15 |
Jaw crusher |
PEF750x1060 |
1 |
90 |
|
Impact crusher |
PF1315 |
1 |
200 |
|
Vibrating screen |
3YK2160 |
1 |
30 |
|
|
260-360
|
Vibrating feeder |
GZD1100x4900 |
1 |
15 |
Jaw crusher |
PEF750x1060 |
1 |
90 |
|
Impact crusher |
PF1214 |
2 |
160x2 |
|
Vibrating screen |
3YK2160 |
1 |
30 |
Henan Hongji Mine Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, metallurgy machinery and building material equipment. We are founded in August 7th, 2008 by restructuring, setting up 4 branch companies and a research center. The history of our group can trace back to Zhengzhou Huaye Industrial Machinery Co., Ltd., which was established in 1969. After more than 40 years' development, we have built into a comprehensive enterprise that comprises R&D, test, manufacture, sales and service functions.
Our headquarters, covering 80,000 square meters, is located in the Mechanical Industrial Park of Zhengzhou City, where is in the transportation junction of central China, owning more than 180 sets of heavy processing equipment with an annul output of more than 800 sets of equipment. Our fixed asset is 80,000,000 RMB (more than 11,000,000 USD).
There are more than 880 employees, including 138 middle and senior engineers and more than 200 skilled workers in our company. We have been cooperating with domestic and foreign scientific research institutes for a long time and established a testing base with domestic and foreign techniques.
Product quality and service is considered as the life of our company. All of our products have attained the certification of ISO9001:2000 qualify system. We have a group of superior experienced after-sales service members to guarantee the continuous smooth running of our products.
Maximum our customers' satisfaction is what we are keep on closing. Over the past decades, Hongji people have been innovating and transcending himself continuously to develop and promote the brand with quality and service. We, Hongji people, are forging ahead for first-class brand with innovative spirit and do our best to contribute to the world industry.
Our Service
Pre-sale:
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and choose best machine.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site.
4. Provide equipment list,design drawing, construction drawing, equipment install drawing.
During-sale:
1.Depend on scene, draw design drawing , construction drawing, equipment install drawing. 2.Manufacturing products strictly on contract while customer constructing.
3.Testing ex-work, delivery, customer acceptance.
After-sale:
1.Provide engineer to wok site guiding install.
2.Test equipment after installation, training operators.
3.Visit work site regularly
Please do not hesitate to contact with us for more details!
