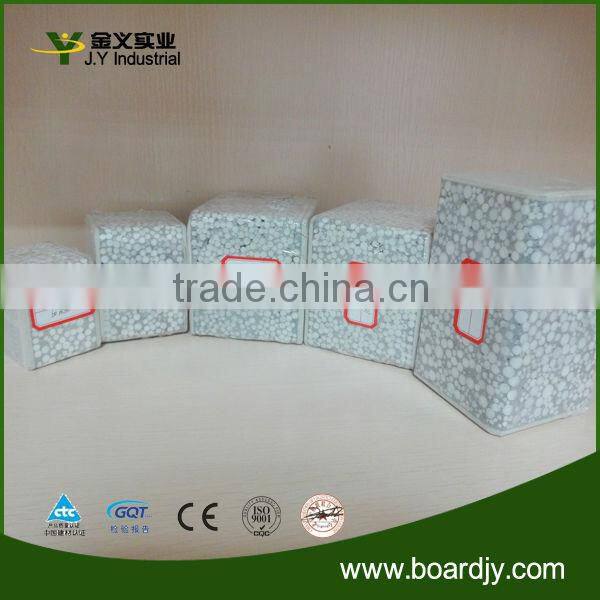

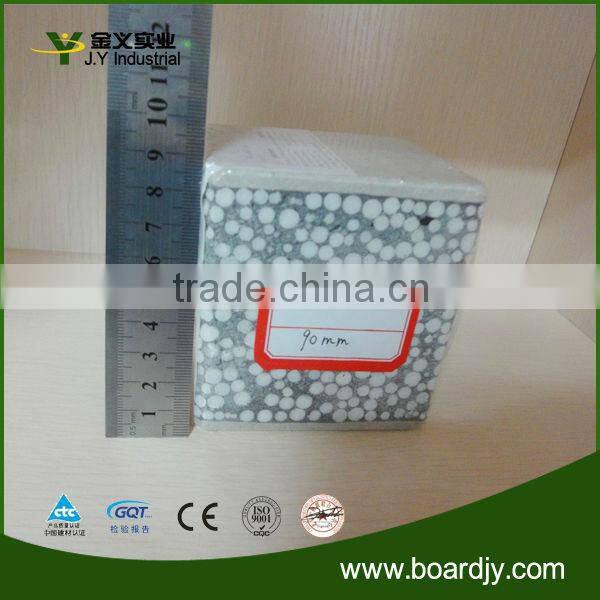

1.Name: Partition Fire Resistant Fiber Cement Eps Cement Sandwich Panel
2.Size:
Length: 1500-3000mm(usually 2270mm)
Width: 610mm
Thickness: 60/75/90/100/120/150/180mm
3.Advantage:
Sound-insulation
Best hanging force
Area –saving,fire-proof
Waterproof and damp proof
Anti-seismic and impact resistance
Largest Span and height thin webbed wall
Energy-saving, light weight, environment-friendly
Most civilized, healthy and high efficient construction
4.Application:

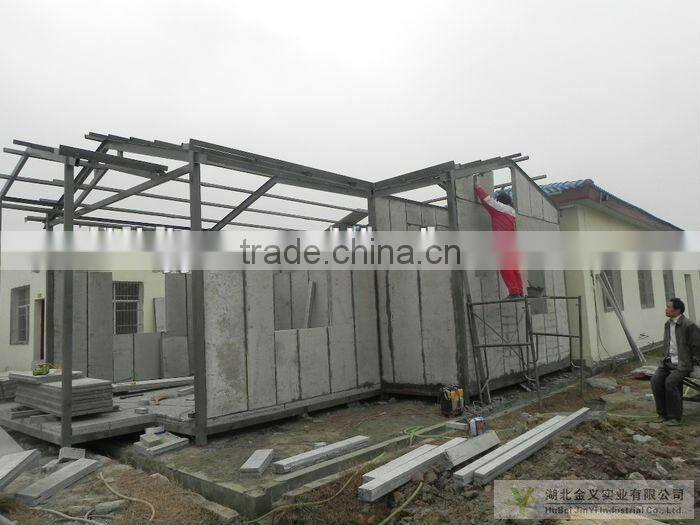

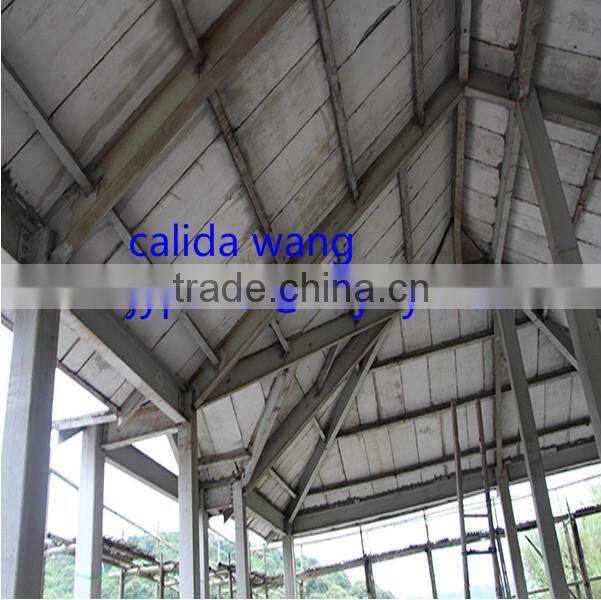

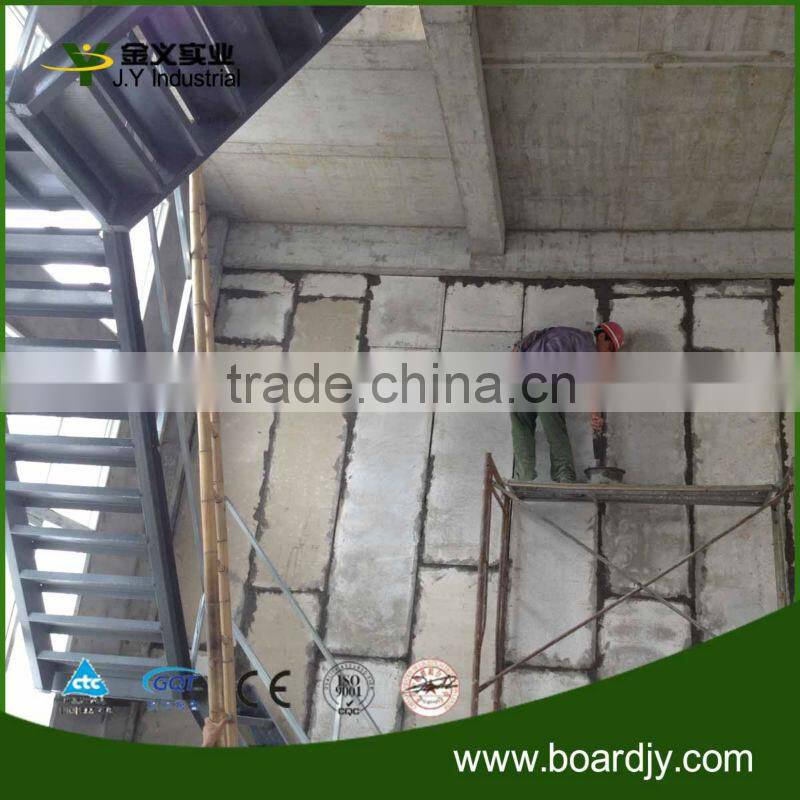

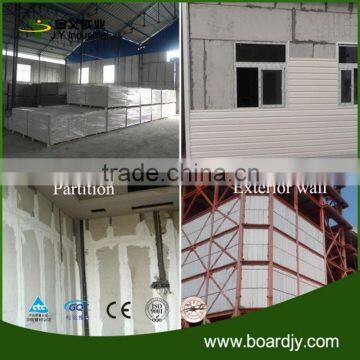

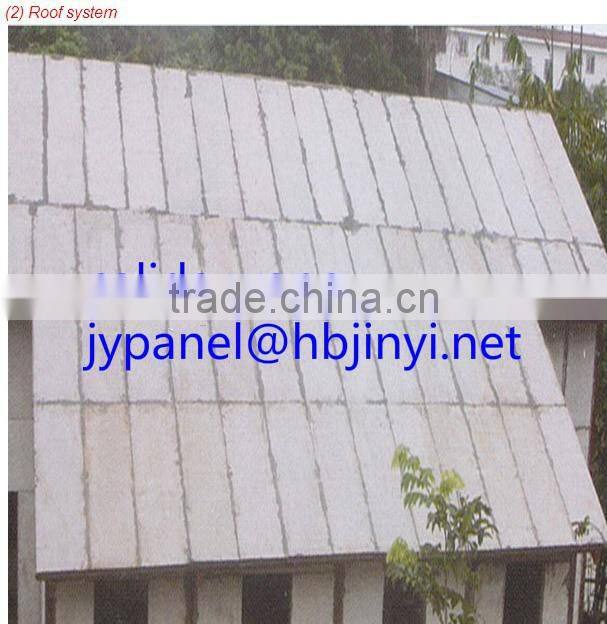

For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.
5.Technology Index:
|
Item |
National Standards |
Testing Indexes |
||||
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
||
1 |
Anti-impact Capacity/times |
≥5 |
≥5 |
≥5 |
≥8 |
≥10 |
≥15 |
2 |
Anti-bending damage load/times over deadweight |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥4 |
≥5 |
3 |
Compressive strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥5 |
≥5 |
≥5 |
4 |
Softening coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
5 |
Surface density g/m2 |
≤70 |
≤90 |
≤110 |
≤55 |
≤70 |
≤85 |
6 |
Moisture rate a/% |
≤12/10/8 |
≤10/9/7 |
||||
7 |
Drying shrinkage value /mm/m |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.45 |
≤.0.5 |
≤0.5 |
8 |
Hanging Force/N |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
≥1500 |
9 |
Sound insulation capacity in the air /Db |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
10 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥2.5 |
≥3 |
≥4 |
11 |
Heat transfer coefficient w/m2.k |
|
|
≤1.0 |
|
|
≤1.0 |
12 |
Radioactivity Limit |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
13 |
IRa (Inner radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
14 |
Ir (Outer radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
6.Exported to: Iran, Russia, Australia, India, Dubai, South Africa and so on.
7.Company profile:
Hubei Jinyi Industrial Co., Ltd is a sizable enterprise, specializing in the R&D, production, selling,technology and international trade of new energy-saving light wall materials and assembled house. Located in Qianjiang Economic Development Zone, we enjoy convenient land and water transportation system, which guarantees the efficiency of our supply system.
Established in 2007, we are a professional producer providing high-quality EPS light weight wall panel, energy-saving tiles, PU heat insulation tiles, PU rigid foam, PU anticorrosive and waterproof coating, energy-saving assembled house, etc. Besides , we also do technology transfer of the production line for wall panel and PU rigid foam adhesive. All of our products have pass ISO9001 International Quality System Certification and ISO14001 Environmental Management System Certification.
We have been studying and developing many new products cooperating with other companies and organizations, such as the Building Material Lab of Wuhan University of Technology.,Shanghai Shundi polyurethane Co., Ltd as well as Wuhan New Material Engineering Technology Co, Ltd. Among those products, one-component polyurethane, uvioresistant coating and other high-end products are classified by the MOHURD(Ministry of Housing and Urban-Rural Development of the People's Republic of China) as the highly recommended products. At the same time, we are awarded as "Energy Star" by the U.S. Environmental Protection Agency and the U.S. Department of Energy.
With modernized management system and professional employees in charge of different procedures, we have established a effective production system, which guarantees the high quality of our products.
8.Service concept:
We adhere to the management philosophy of honesty, innovation, professionlism and , mutual benefit. Together with friends at home and abroad, we hope to perfect the energy-saving material and environmental protection residence for all people around the world.

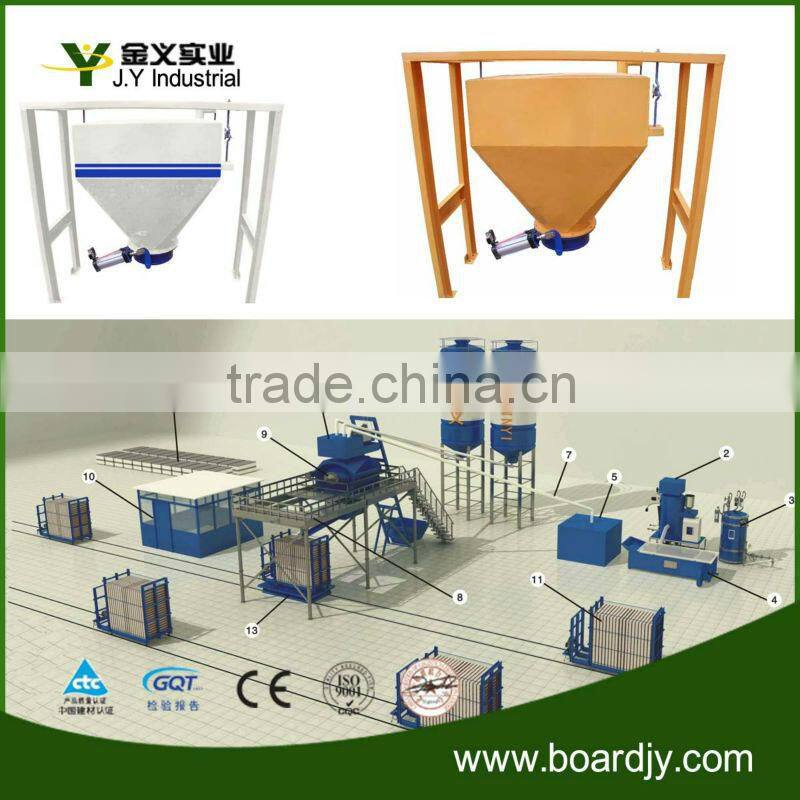

We can also provide the production line
Any request please feel free to contact us.
