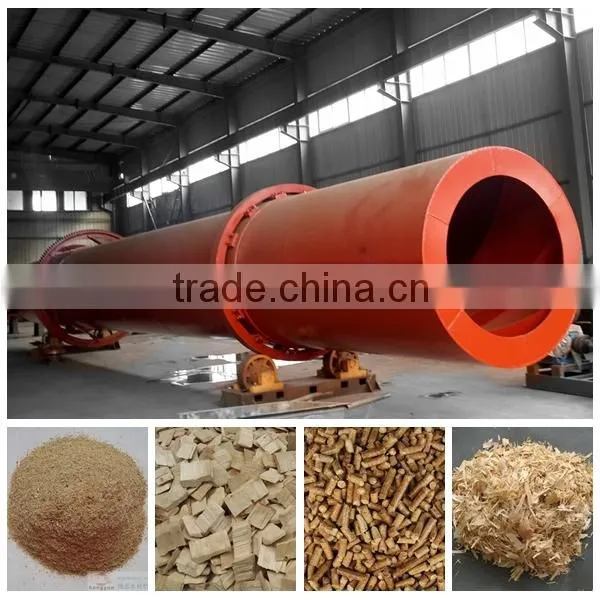

The 2014 Bauma Biomass sawdust rotary dryer, Sawdust/ Wood chips/ Bark/ Seaweed dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the biomass it is handling by bringing it into direct contact with a heated gas.
Biomass such as sawdust, wood chips, barks, seaweed and so on features:
-Heavy humidity as much as around 40%
-Flammable and combustible with high density dust during drying
-Low drying temperature required
- Light specific gravity , big volume after dry
According to above features, Henan Hongji Mine Machinery Co.,Ltd. designed new type biomass dryer

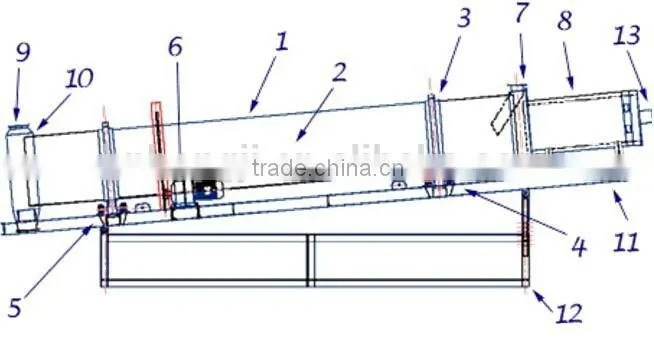

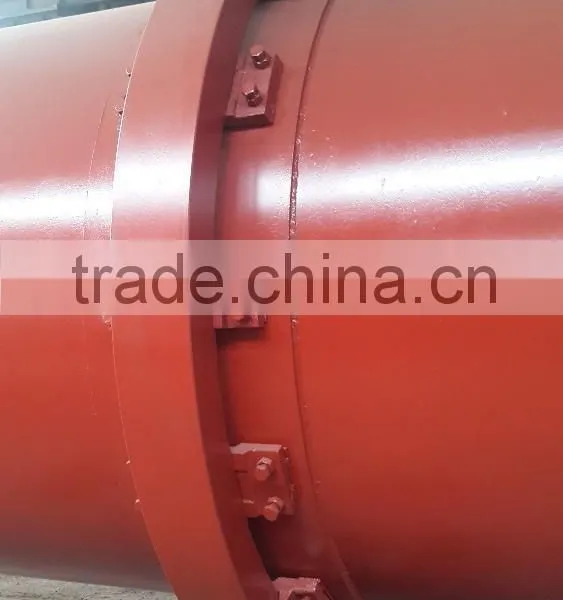

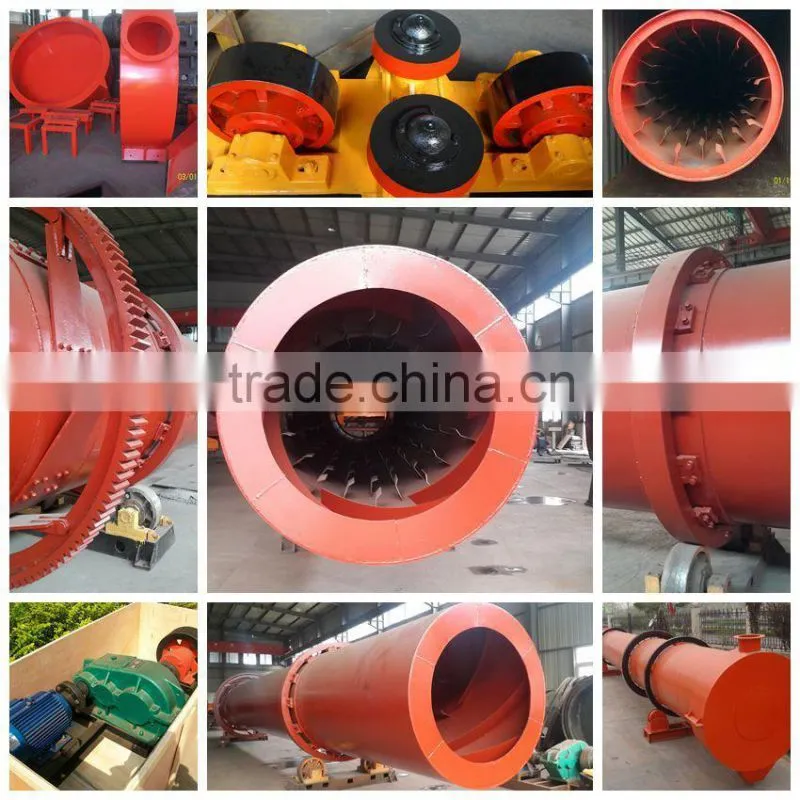

[1] Heavy Duty Rotary Dryer Drum [2] Internal Rotary Dryer Lifters [3] Rotary Dryer Riding Rings

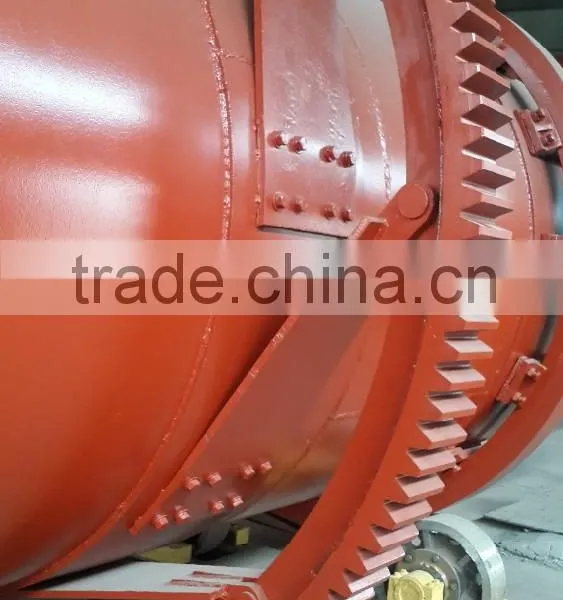

[4] Rotary Dryer Trunnion Rollers [5] Rotary Dryer Thrust Wheel [6] Rotary Dryer Drive
[7] Rotary Dryer Feed Chute [8] Combustion Chamber (optional) [9] Discharge Chute
[10] Rotary Dryer Discharge Seals [11]Rotary Dryer Support Frame [12]Modular Frame (optional)
[13]Rotary Dryer Burner System

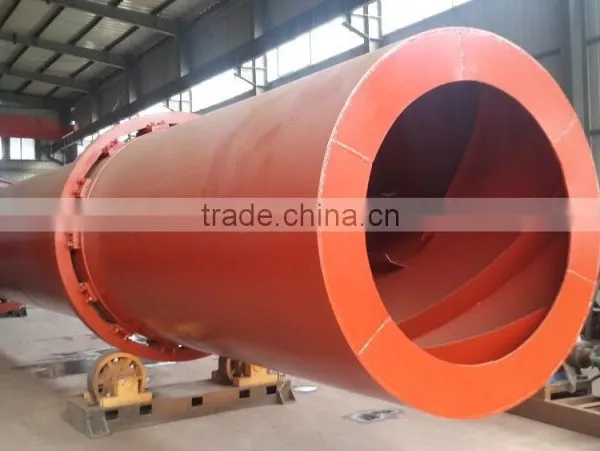

The indirect heat rotary drum drier is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow).
Concurrent flow drier type
•Chemical fertilizers •Waste sludge •Nickel ore
•Clay •Food products •Chemical sludge
•Sands •Other ores •Plastics
•Filter cake •Limestone •Biomass
Countercurrent flow drying type
•Silica sands •Clay •Ilmenite
•Ammonium sulfate•Sugar •Limestone •Plaster
•Cryolite •Ammonium chloride •Sodium glutamate
•Foundry sands •Chrome ore •Ferrous sulfate
•Fused phosphate fertilizer •Biomass
- International standard with ISO, CE certificate
- Simple system, safe and easy operation
- Flexability in fuels used (NG, Oil, Coal ect.)
- Year of experience with all types of dryers
- Capable of installation anywhere in world
- True understanding of process conditions
- In house engineering for custom fit applications
- Customized for every application
- Best price on the market
- Quickly delivery
- Proven design
|
Capacity(t/h) |
Main motor |
Main gear box |
Weight(t) |
||
Power(kw) |
Model |
Model |
Speed reduction ratio |
|||
ø1.2*10 |
2.5 |
7.5 |
Y160M-R3 |
ZL50-16-I |
----- |
13.5 |
ø1.5*12 |
3.3-4.9 |
10 |
Y160L-6-B3 |
JZQ500-III-2F |
----- |
18.9 |
ø1.5*15 |
4-6 |
18.5 |
Y200L1-6 |
JZQ500-III-2F |
----- |
21 |
ø1.8*12 |
4-6 |
18.5 |
Y160L-6 |
ZQ50-16II-2 |
16.46 |
22.83 |
ø2.2*12 |
7-12 |
18.5 |
Y200L7-6 |
JZQ650-III |
31.5 |
37.6 |
ø2.2*14 |
7-12 |
22 |
Y200L7-6 |
JZQ650-III |
31.5 |
40 |
ø2.2*16 |
12 |
30 |
Y225M-6 |
JZQ750-III |
31.5 |
45 |
ø2.4*14 |
12 |
30 |
Y250M-6 |
JZQ750-III |
31.5 |
51 |
ø2.4*18 |
10-13 |
37 |
Y250M-6 |
ZL85-13-I |
27.16 |
54 |
ø2.4*20 |
10-14 |
37 |
Y250N-6 |
ZL85-13-I |
27.16 |
54.14 |
ø3*20 |
25 |
55 |
Y250M-4 |
ZL100-16-I |
41.52 |
78 |
ø3*25 |
32-36 |
75 |
YR280M-4 |
ZL100-16-I |
41.52 |
104.9 |
In order to quota you the right machine with best price, we would like to get the following information include in your inquiry:
-What is the raw material you are going to dry?
-What is the start and ending moisture?
-What is the capacity per hour you need?
-What about the heat temperature?
-What kind of fuel you use to heat the dryer?
-How about dust collect requirements?
-Other special requirements?
