Specifications
Rotary kiln drying gypsum powder machine1.simple structure
lid parts
3.stable operation
nvenient and rel
Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process. Materials produced using rotary kilns include:
¨ Cement
¨ Lime
¨ Refractories
¨ Metakaolin
¨ Titanium dioxide
¨ Alumina
¨ Vermiculite
¨ Iron ore pellets
They are also used for roasting a wide variety of sulfide ores prior to metal extraction.

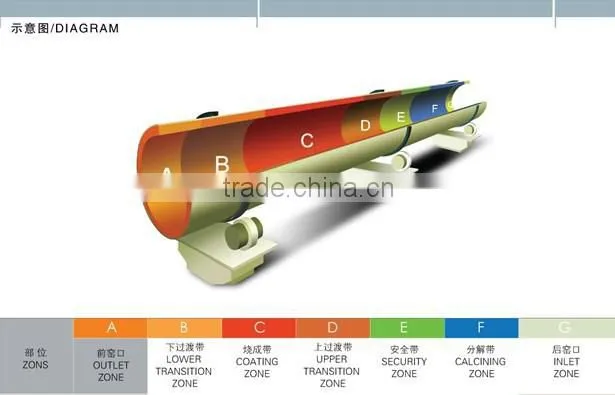

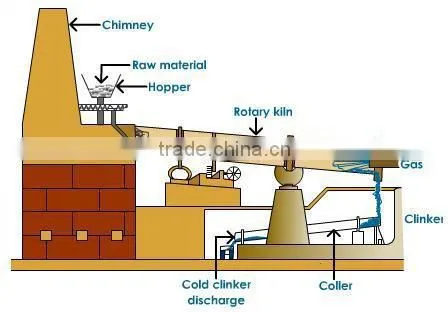

The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or "firing pipe") which acts like a large bunsen burner. The fuel for this may be gas, oil, pulverized petroleum coke or pulverized coal.

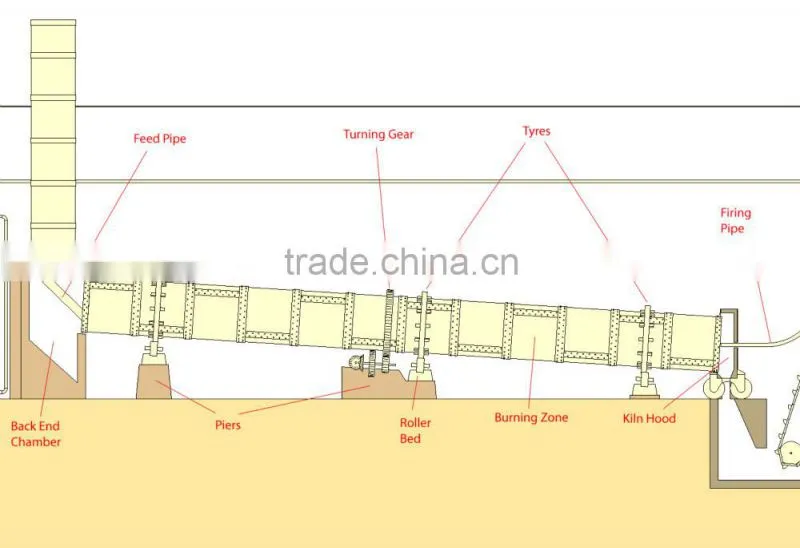

The basic components of a rotary kiln are the shell, the refractory lining, support tyres and rollers, drive gear and internal heat exchangers.
Type |
Technical parameters |
Reduction drive |
Main motor |
Support quantity
|
Weight (T) |
|||||
|
Rotation speed (r/min) |
Obliquity (%) |
Output (t/h) |
Type |
Ratio |
Type |
Power (KW) |
Rotation speed (r/min) |
|||
1.6*32 |
0.158-0.258 |
3 |
0.6-2 |
PM750 |
48.57 |
JZJY61-4 |
15 |
1200/120 |
3 |
46.82 |
1.8*45 |
0.66-1.98 |
4 |
1-4.5 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
3 |
68 |
1.9/1.6*36 |
0.53-1.59 |
4 |
2.5-3 |
JZQ750-I |
48.85 |
JZT-72-4 |
30 |
1200/400 |
3 |
53 |
2.1/1.8*36 |
0.5-1.51 |
4 |
4 |
UT2-110 |
163.36 |
JZS-81 |
30/10 |
1410/470 |
3 |
75 |
2.2*50 |
0.125-1.25 |
3.5 |
5 |
ZS145-11 |
157 |
YCT280-4A |
30 |
1320/132 |
3 |
130.71 |
2.5*50 |
0.516-1.549 |
3.5 |
8 |
ZS165-7 |
99.96 |
YCT355-4A |
55 |
1320/140 |
3 |
167.5 |
3*48 |
0.3309-3.309 |
3.5 |
28 |
ZI130-14 |
32.11 |
ZSN4-250-21B |
90 |
1000/100 |
3 |
237 |
3.2*50 |
0.398-3.975 |
3.5 |
42 |
ZI130-16 |
40.85 |
ZSN4-280-11B |
190 |
1500/150 |
3 |
263 |
3.3*52 |
0.91-3.91 |
3.5 |
50 |
ZSY500-28 |
27.707 |
ZSN4-315-082 |
190 |
1000/100 |
3 |
280.8 |
3.6*55 |
3.5 |
3.5 |
76 |
ZS117-5-II |
79.2 |
ZSN-280-11B |
125 |
1000/200 |
4 |
368.7 |
4*60 |
0.396-3.96 |
3.5 |
105 |
ZSY630-35.5 |
34.601 |
ZSN4-355-092 |
315 |
1000/100 |
4 |
487.5 |
4.2*60 |
0.4165-4.165 |
3.5 |
143 |
ZSY710-35.5 |
35.526 |
ZSN4-355-12 |
420 |
1000/100 |
4 |
556.1 |
4.5*65 |
0.46-1.45 |
4 |
168 |
JH800C-SW306 |
35.5 |
ZSN4-400-22 |
560 |
1000/100 |
4 |
710 |
4.8*74 |
0.35-4 |
4 |
208 |
JH710C-SW305-40 |
42.226 |
ZSN4-400-092 |
630 |
1500/130 |
4 |
841 |
Henan Hongji Mine Machinery Co., Ltd. (hereinafter referred to Henan Hongji) is a professional mining machinery manufacture with ISO, CE Certificate, specialized in produce and develop various kinds mining machines for over 20 years, since 2008 the International Trade Department opened, we had export 44 countries and regions, rotary kiln machines have been exported to Korea, Vitenam, Malaysia, Pakistan, Turkey, Spain,Azerbaijan, Russia, Kazakhstan, Uzbekistan, Bolivia, Panama and so on, with successful projects and excellent quality we have very good reputation from our clients.
//////////// Rotary kiln drying gypsum powder machine ////////////
More questions and details please feel free to contact us !
C.P. : Kelly Liu 0086-15137190419
