20KW 240V off grid solar power system
20KW 240V off grid solar power system includes:
1. 250W solar panel, 80pcs
2.MPPT Solar Charge controller 240V-40Amp :2pcs
3. Deep cycle battery 12v-250Ah :20pcs
4. Off grid inverter 20KW/240V :1pc

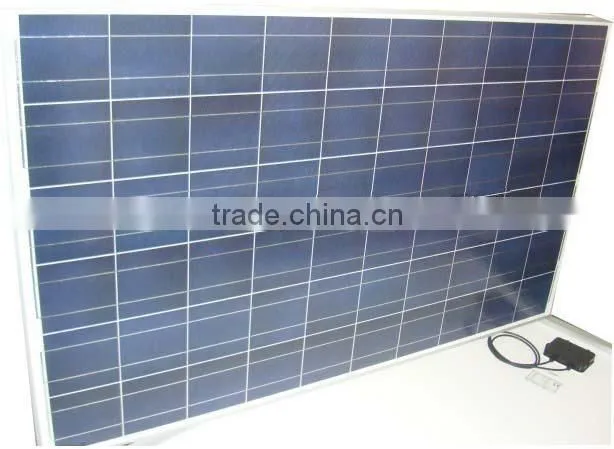

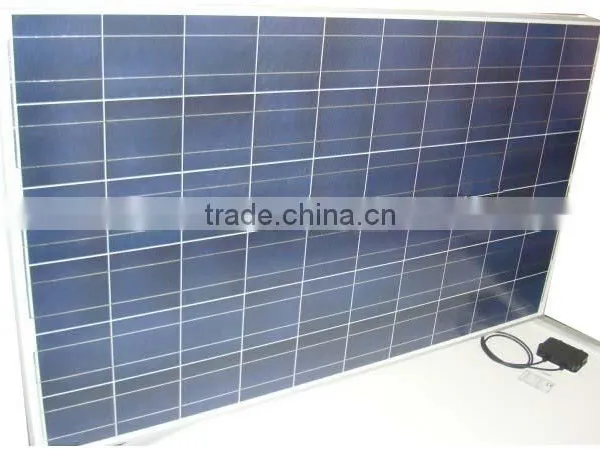

250W Solar Panel(poly):

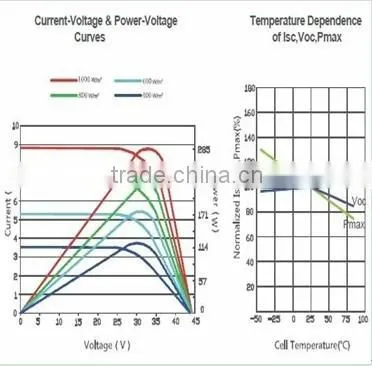

Electrical Characteristics:
Module Type |
S/P250W |
Maximum Power at ST(Pmax) |
250Wp |
Maximum Power Voltage(Vmp) |
30.8v |
Maximum Power Current(Imp) |
8.11A |
Open Circuit Voltage(Voc) |
36.2V |
Short Circuit Current(Isc) |
8.7A |
Cell Efficiency(%) |
17.8% |
Module Efficiency(%) |
17.1% |
Operating Temperature°C |
-40°C to +85°C |
Maximum system voltage |
1000V(IEC)DC |
Maximum series fuse rating |
15A |
Power tolerance |
+-3% |
Temperature coefficients of Pmax |
-0.45%/°C |
Temperature coefficients of Voc |
-0.27%/°C |
Temperature coefficients of Isc |
0.05%/°C |
Weight(kg) |
18 |
Number of cell(pcs) |
6*10 |
Dimensions(mm) |
1650*992*35 |
MPPT Solar Charge Controller 240V-40A:

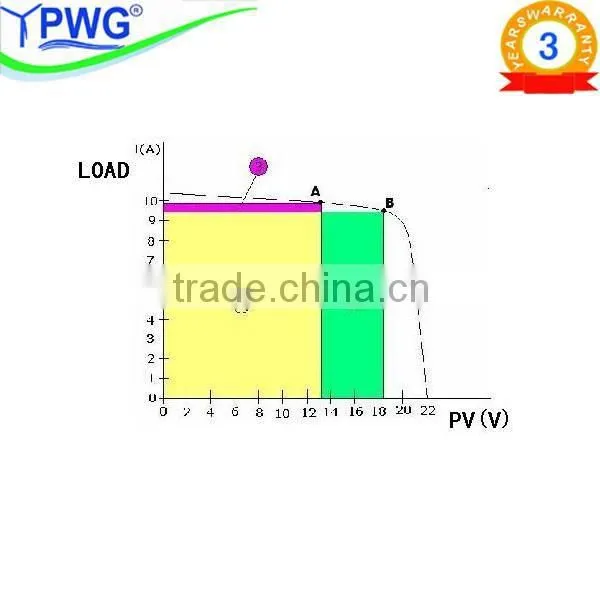

Maximum Power Point Tracking (MPPT) Function:
Install in parallel connection:

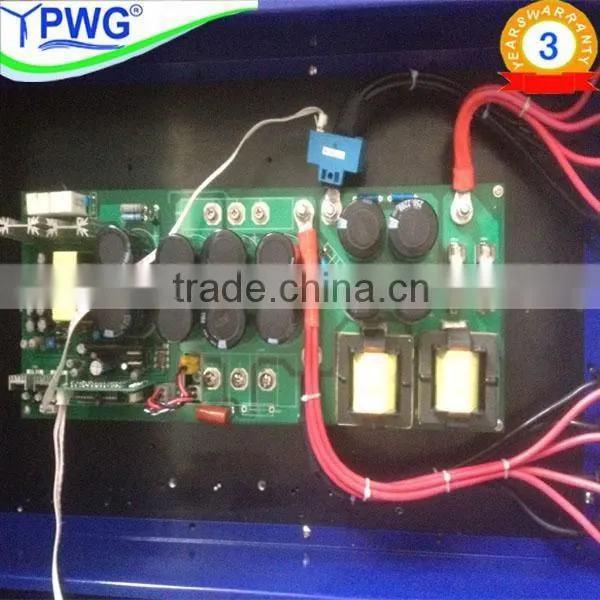

Off grid solar Inverter 240V-20KW:

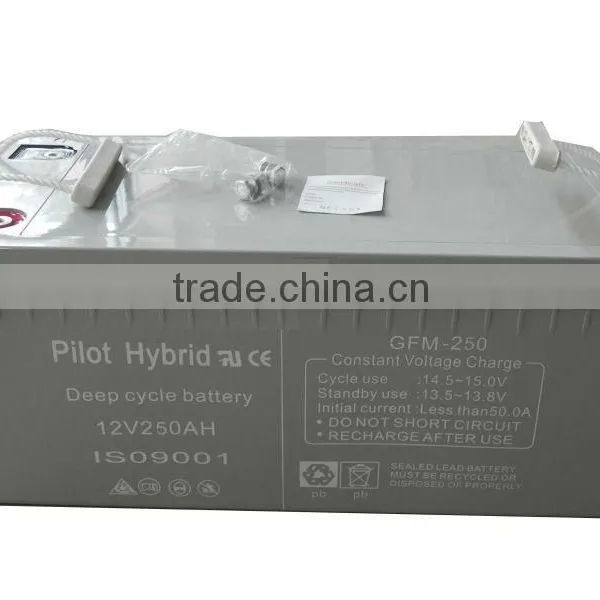

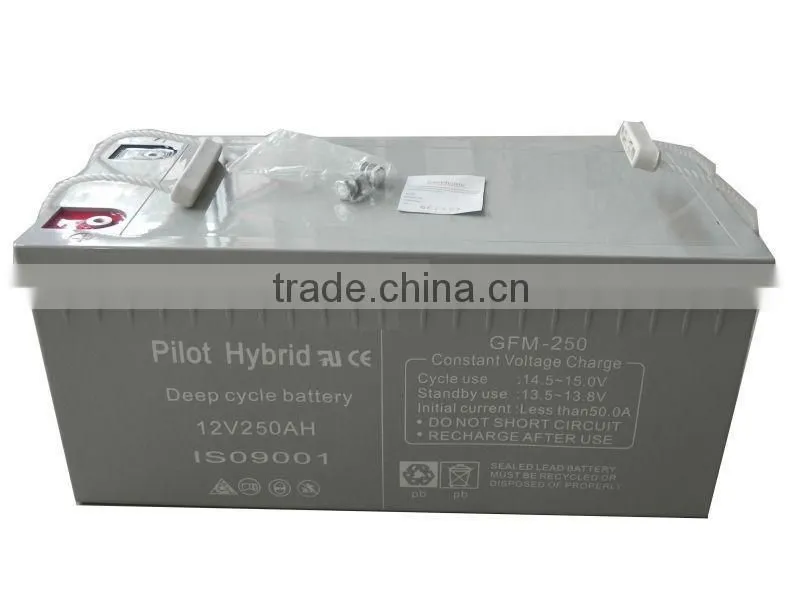

Deep cycle battery:

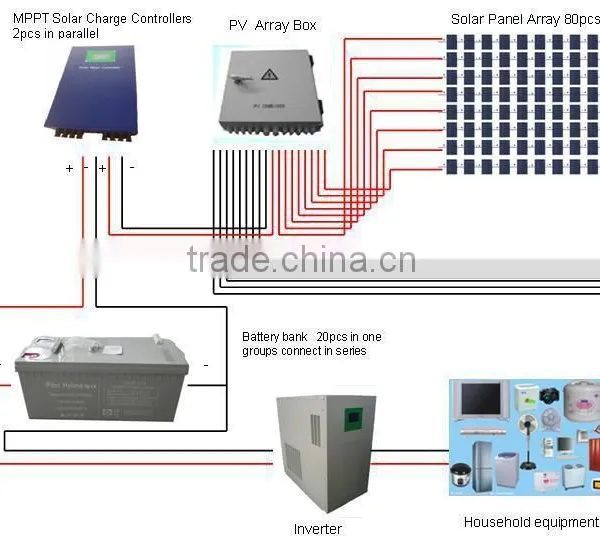

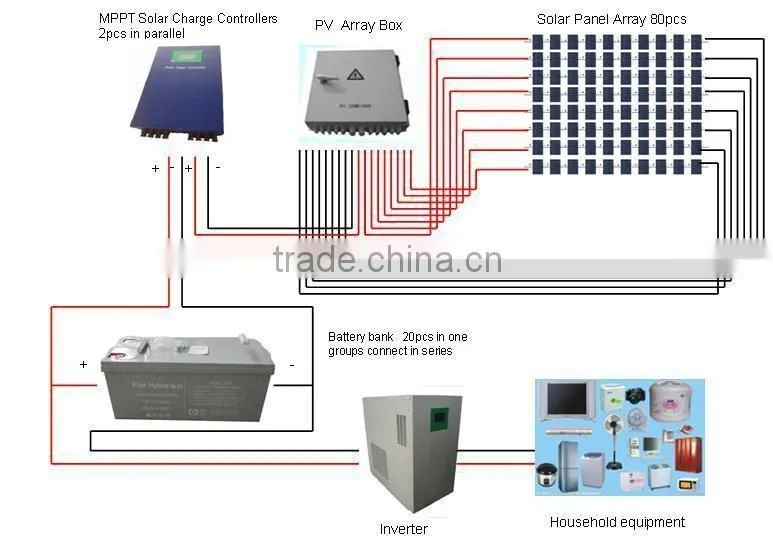

Matched system diagram:

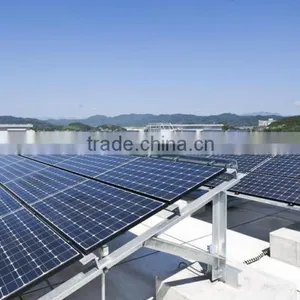

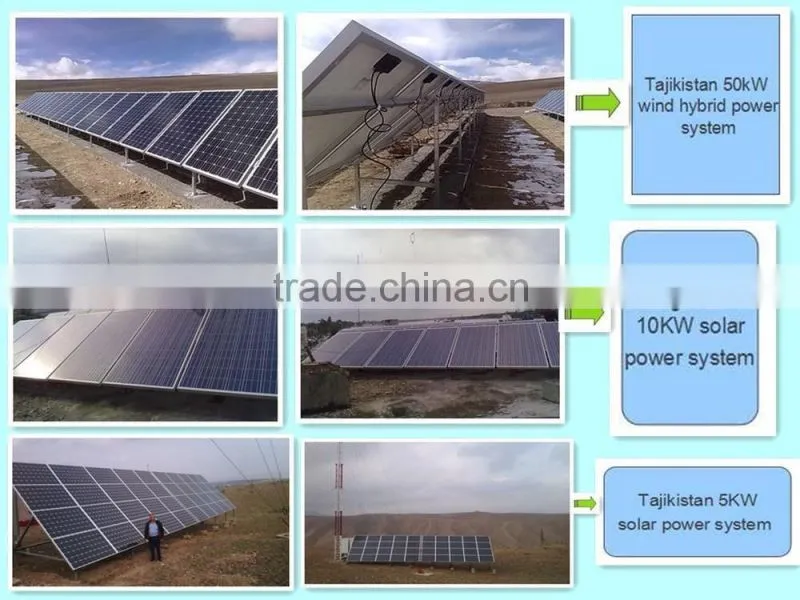

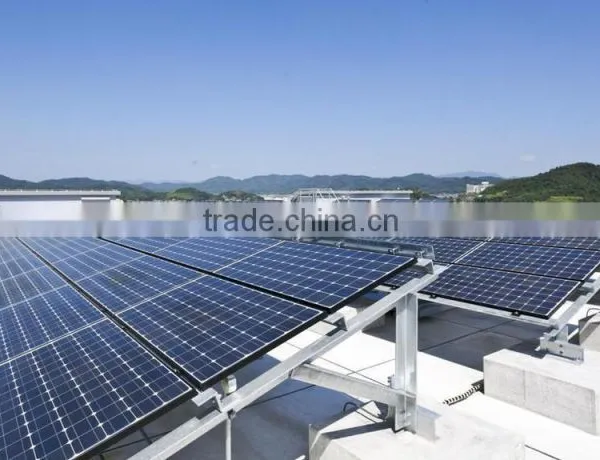

Parts of projects:
