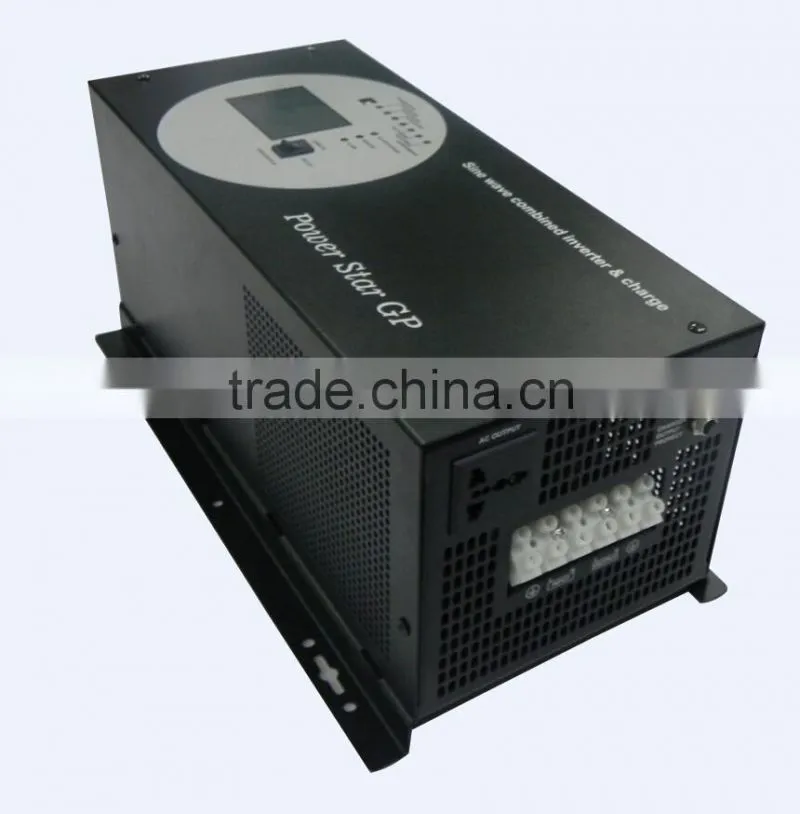

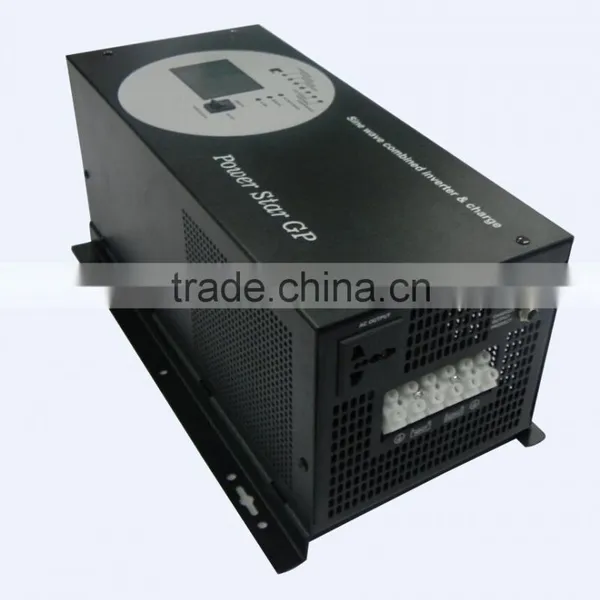

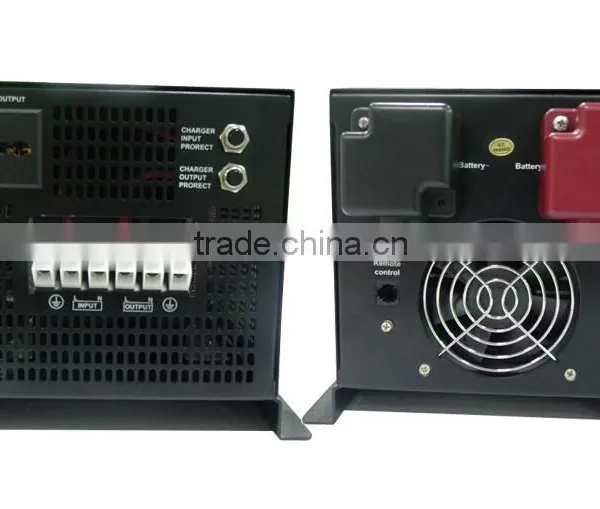

Copper transformer, pure sine wave, 4KW off grid solar inverter for home use
- 100 Unit / Units per Month
- Foshan
- T/T Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Model Number: | GP4032 | Output Power: | Other, 4KW |
Output Type: | Single | Input Voltage: | 48V | Output Voltage: | 230VAC |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz |
Product Description
Model | GP1012 | GP2022 | GP3022 | GP4032 | GP5032 | GP6032 |
Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
INPUT | ||||||
AC input voltage range | 196~243VAC | |||||
OUTPUT | ||||||
AC output voltage range | 230VAC | |||||
Output frequency | Batt.mode:50±0.3Hz; | |||||
AC mode: 48~54Hz(50Hz) or 58~64Hz(60Hz),Same as AC | ||||||
Output wave form | Pure Sine Wave | |||||
Transfer time | 10ms(Typical) | |||||
PROTECTION | ||||||

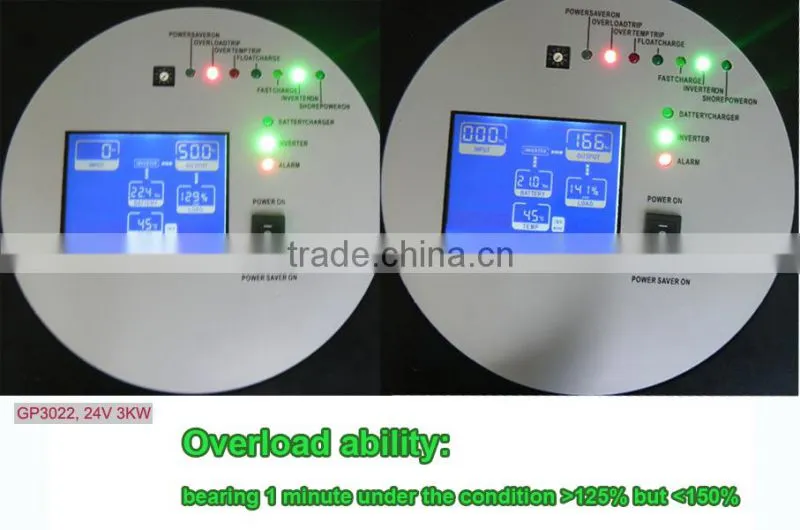

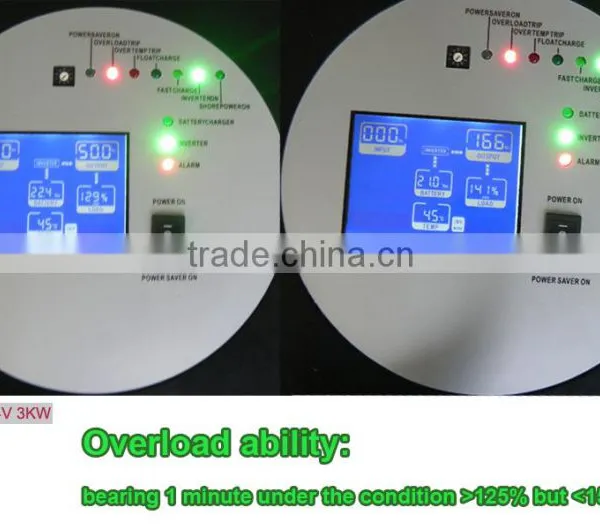

Overload protection | (100%<Load<120%)±10%: Auto shutdown in 2 mins; (120%<Load<140%)±10%: Auto shutdown in 60 Secs; (140%<Load)±10%: Auto shutdown in 20 Secs. | |||||
Output short circuit protection | Yes | |||||
Breaker | Input:15A/Output:10A | Input:30A/ | Input:35A/ | Input:40A/ | ||
Output:15A | Output: 20A | Output:30A | ||||
BATTERY | ||||||

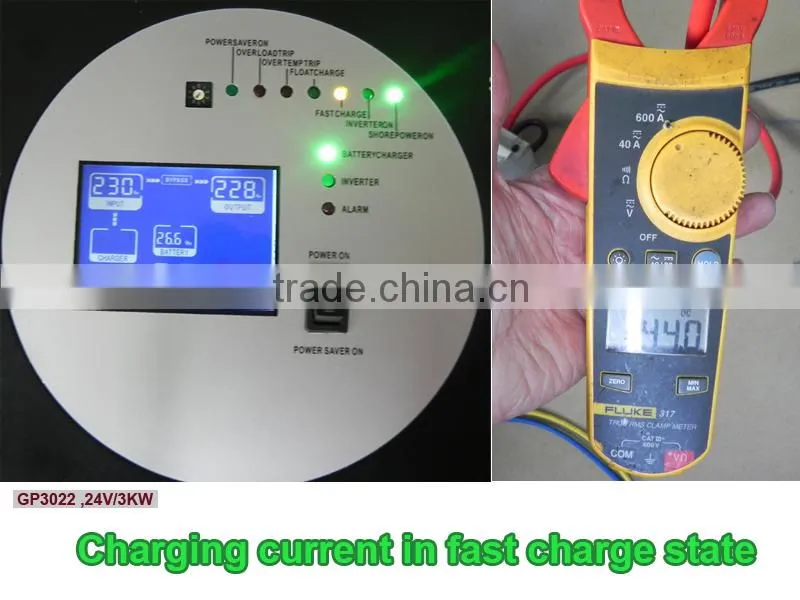

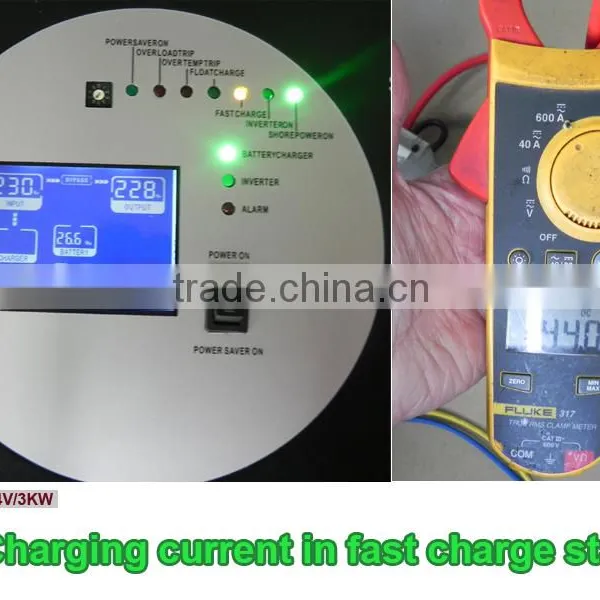

Max. charging current | 35A | 45A | ||||
Min. DC start voltage | 12V | 24V | 48V | |||
PHYSICAL | ||||||
LCD Display | show the working parameters of input,,output voltage, frequency, output power and the working condition | |||||
Net weight (KG) | 22.8 | 27.6 | 32.4 | 38.2 | 44.5 | |
Unit dimension(mm) | 468*224*212 | 644*224*212 | ||||
ENVIRONMENT | ||||||
protections functions | protection against short-circuit, over -voltage, under-voltage and overheating, Ground fault monitoring, Integrated all - pole sensitive leakage current monitoring unit | |||||
Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% |
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Foshan, Guangdong, China, near Guangzhou. You are warmly welcomed to visit us!
Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
