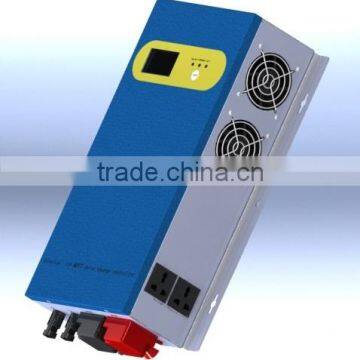

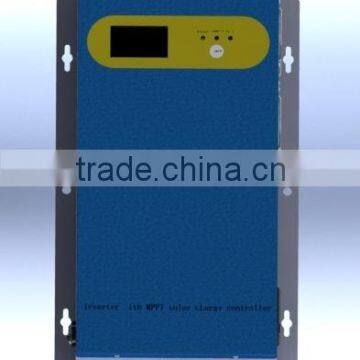

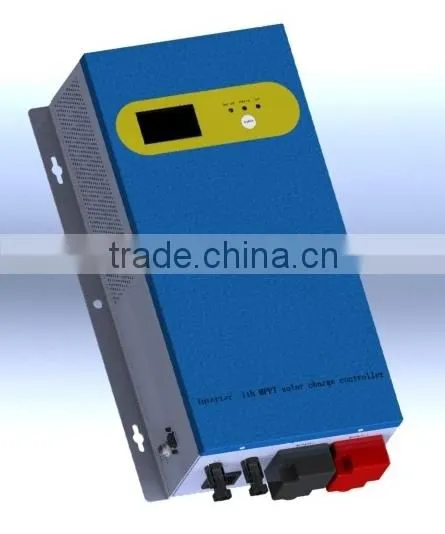

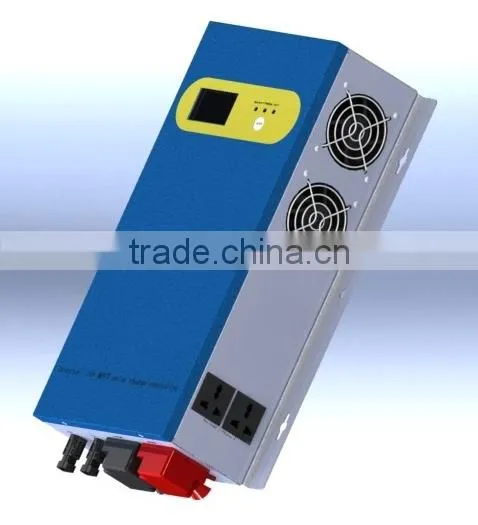

1. Introduction:
2. MRE hybrid inverter system is a battery charge and discharge control, photovoltaic and electricity switching control and inverter control multifunctional integrated system,composed of PV array, power grid , battery, off-grid hybrid inverter and AC load, photovoltaic array absorbs solar radiation, convert it to electricity to provide power,
off-grid hybrid inverter can control both battery and mains intelligent charging, while the inverse DC battery power into AC power for the entire system for the load.
System uses a PV priority mode, according to battery capacity , photovoltaic charging current and the load, the controller automatically controls the charger from the power grid.
So it can maximum use of solar energy while ensure continuous demand for electricity.
It was resolved without public grid or grid electricity in underdeveloped regions of the daily program of choice.
Working principle diagram:
2,the principle of the internal structure of the product:
Off-grid hybrid inverter composed of PV MPPT charging controller , power grid charging board ,inverter board and whole control system , system uses a common DC bus mode,
the battery, the output of the PV inverter and battery charger and grid intersection into a DC charger input bus, also the battery charging DC bus current path, charging the grid photovoltaic charging priority;
3,Features:
1) intelligent battery management system , it can extends battery life.

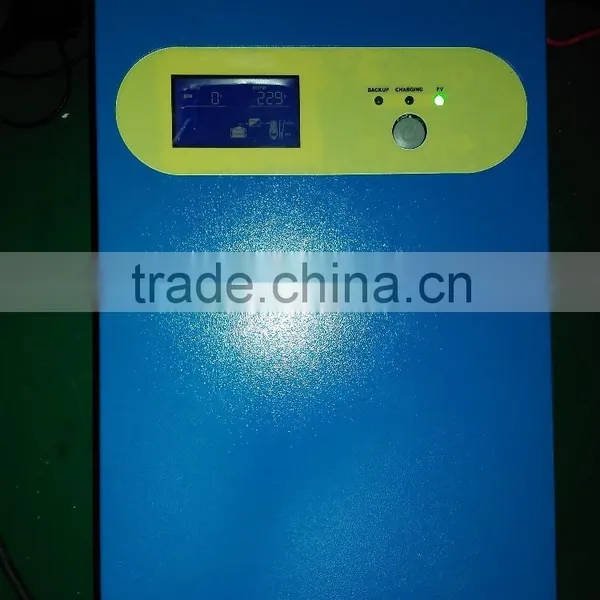

2) LCD display , it can show :Solar charging current, the solar array voltage, solar power, battery voltage, the inverter output voltage, output frequency, output power etc.
3) solar work priorities. Always take precedence over the use of solar energy, maximize the use of solar energy.
4) When the solar and mains charging current is insufficient to supply the load, the inverter automatically switches to mains bypass. Ensure un-interruptible power to run load.
5) when the solar power supply returns to normal, the inverter will automatically switched to the solar power.
6) Strong ability of resisting concussion, can load all kinds of electric apparatus and industry equipments, such as air conditioner, refrigerator, television, fan, washer, fill water electric motor, tortile gate, etc..
7) high transfer efficiency, up to 95% (different materials transformer has different transfer efficiency)
8) Protection function: output short circuit, overload, low voltage, etc.
4,Specifications
|
Model
|
HY1022 |
HY2032 |
HY3032 |
HY4032 |
HY5032 |
|||||
Working Way |
Continuous Working |
|||||||||
AC Connected Way |
Single-phases Four-wire Power Cable |
|||||||||
Rated Output Power |
1kw |
2kw |
3kw |
4kw |
5kw |
|||||
Output Overload Capacity |
120% <1min |
|||||||||
Surge power |
2.5w |
5kw |
7.5kw |
10kw |
12.5kw |
|||||
input parameter |
Nominal Voltage |
1phase:100/115/125vAC,or 220/230/240v AC |
||||||||
AC voltage range |
Acceptable voltage range |
86v-140v or 140v-280v |
||||||||
Frequency |
40HZ---70HZ |
|||||||||
Low voltage transfer |
86v or 140v |
|||||||||
Low voltage return |
96v or 165v |
|||||||||
High voltage transfer |
140v or 280v |
|||||||||
High voltage return |
125v or 256v |
|||||||||
DC voltage range |
24V(21V-27.6V) |
48V(42V-60V) |
||||||||
Transfer time |
typical |
<4ms |
||||||||
AC Charger |
Charger current |
5AMP.10AMP.15AMP |
||||||||
Solar power (optional ) | ||||||||||
|
Solar power
|
Solar controller |
MPPT 40AMP, |
||||||||
Input voltage |
15v-55v |
52v-88v |
||||||||
Bulk charge |
29.2v(default) |
58.4v(default) |
||||||||
Floating charge |
26.8v(default) |
53.6v(default) |
||||||||
Equalization charge |
28.0v(default) |
56v(default) |
||||||||
Over charge disconnection |
29.6v |
59.2v |
||||||||
Over charge recovery |
27.2v |
54.4v |
||||||||
Over discharge disconnection |
21.6v(default) |
43.2v(default) |
||||||||
Over discharge reconnection |
24.6v |
49.2v |
||||||||
Temperature compensation |
-13.2mv/℃/-26.4m/℃ |
-52.8m/℃ |
||||||||
Lead acid battery settings |
Adjustable |
|||||||||
NiDad battery setting |
Adjustable |
|||||||||
Low voltage reconnect |
24.0-28.0v dc |
48.0-56.0vdc |
||||||||
Low voltage disconnect |
21.0-25.0vdc |
42.0-50.0vdc |
||||||||
Output | ||||||||||
output parameter |
Voltage regulation(Bat .Mode) |
100/115/125vAC,or 220/230/240v AC ±3% |
||||||||
Mains supply |
bypass |
|||||||||
rated frequency of power grid |
50HZ/60HZ ±1% |
|||||||||
Voltage range of the transition changes |
Within10% resistance load 0%~100% |
|||||||||
degree of distortion of output voltage |
<3% linear load |
|||||||||
power factor |
Rated power ≥0.99 |
|||||||||
maximum transfer efficiency |
>90% |
|||||||||
Electromagnetic compatibility |
IEEE929/EN61000 |
|||||||||
function parameter |
unattended function |
voltage recovery atomically start |
||||||||
protections functions |
protection against short-circuit, over -voltage, under-voltage and overheating |
|||||||||
LCD display |
show the working parameters of input,,output voltage, frequency, output power and the working condition |
|||||||||
communication and centralized monitoring |
RS232,or RS485,USB,SNMP.(optional) |
|||||||||
Optional function |
Mains back up/bypass/DC, battery work first |
Normal inverter work on battery ,when battery DC voltage low ,it can switch to work on mains bypass, |
||||||||
System parameter |
standby power consumption (W) |
<50W |
||||||||
Type of cooling |
By air (inside),natural cooling(outside) |
|||||||||
protection grade |
IP21(inside),IP45(outside) |
|||||||||
Working temperature (℃) |
-20~+50℃ |
|||||||||
Noise |
<40dB |
|||||||||
insulation resistance(input,output) |
>50MΩ |
|||||||||
Dielectric Voltage with-Stan(input to output) |
2000Vac/10mA |
|||||||||
Packing Unit size(mm) |
575*490*230mm |
|||||||||
G.W./KG |
30kg |
35kg |
40kg |
45kg |
60kg |
|||||
