Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice

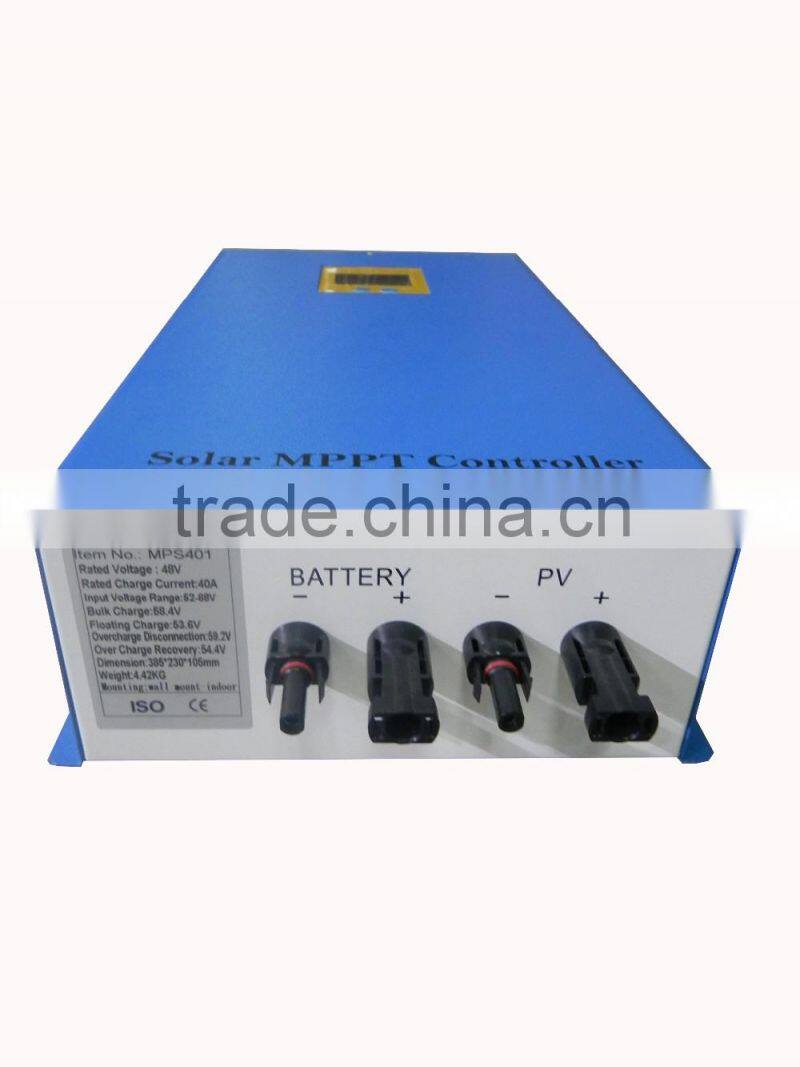

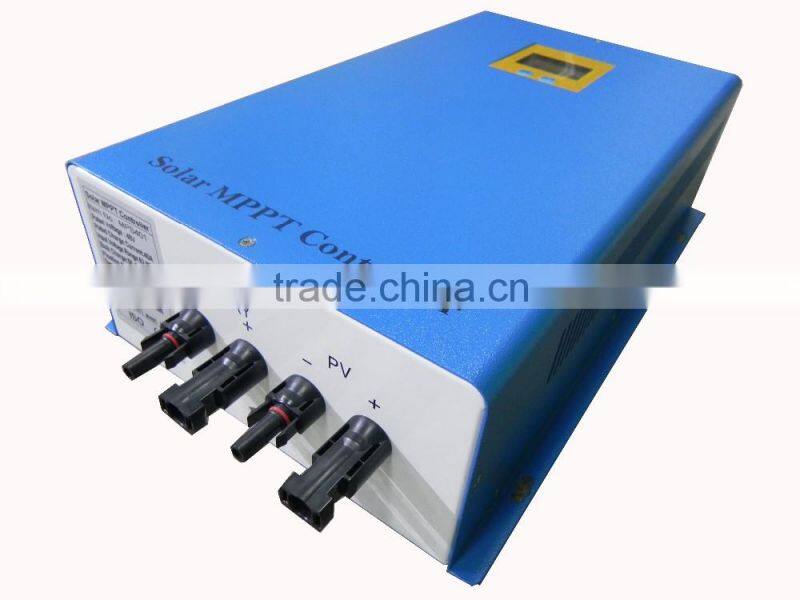

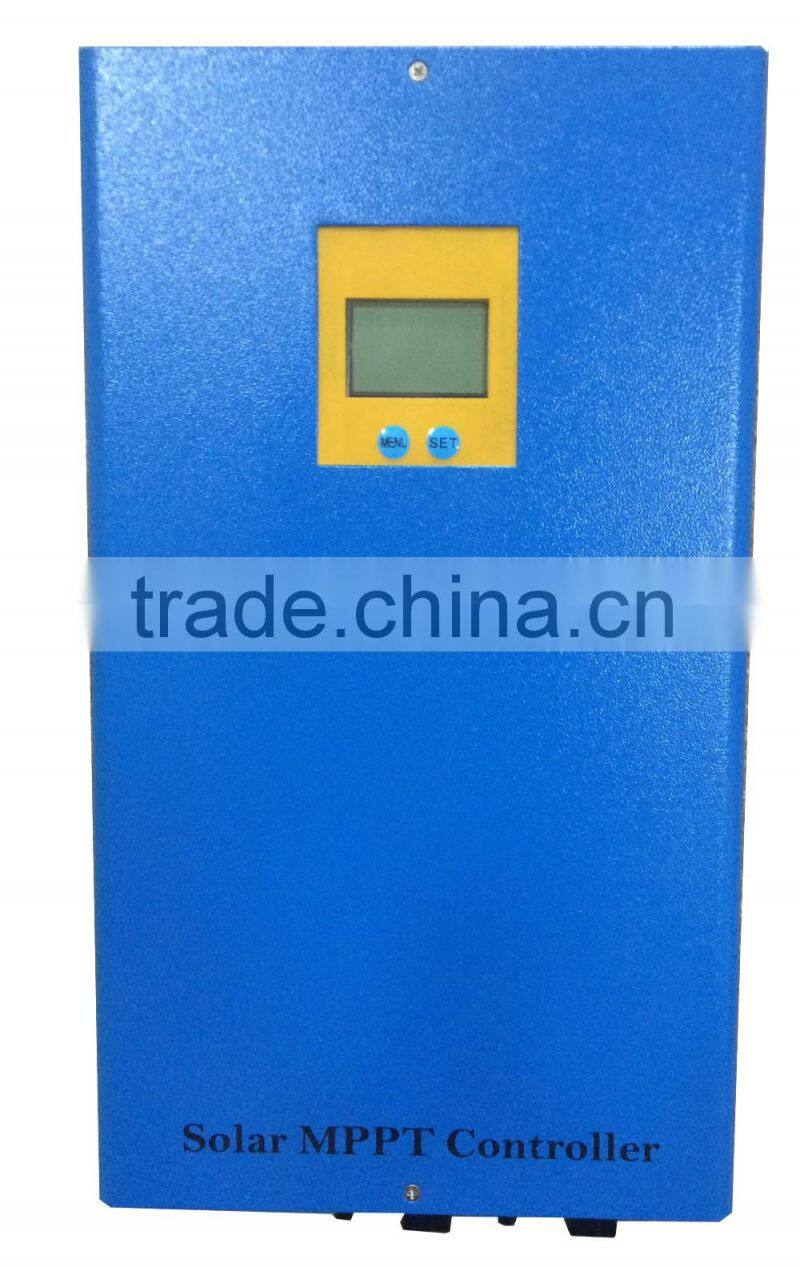

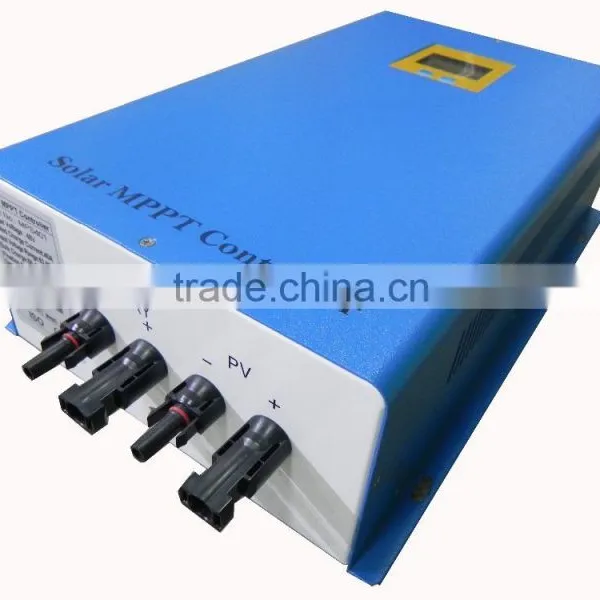

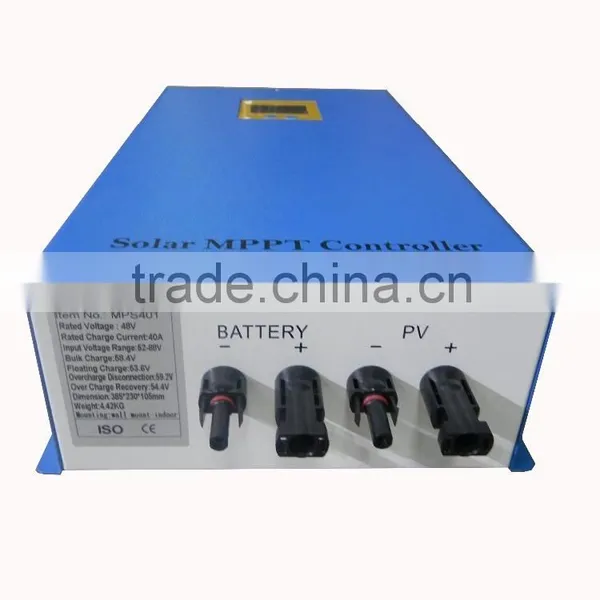

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice thumbnail-3

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice thumbnail-4

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice photo-1

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice photo-2

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice photo-3

High Quality MPPT Solar Charge Controller 48VDC/40Amps for Solar Power System Quality Choice photo-4

US$ 128 - 161 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MRE

Model Number:

MPS403

Contact Supplier Request Quote Chat Now

Foshan City Lvguang Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Foshan Guangzhou or Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MRE

Model Number MPS403

Application Solar System Controller

Rated Voltage 48V

Maximum Current 40A

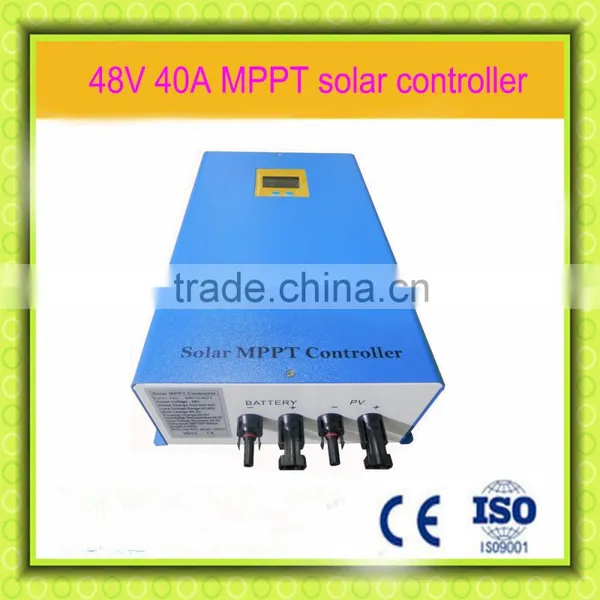

MPPT solar Charge controller 48V40A

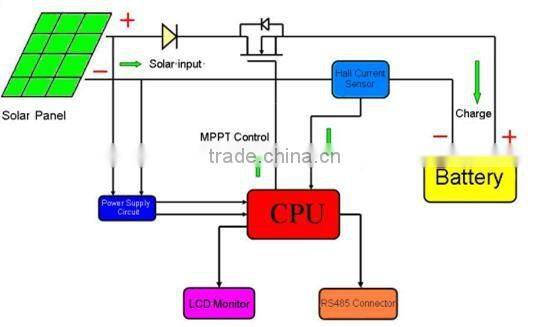

operating principle

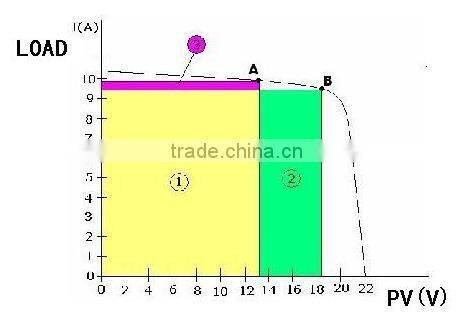

MPPT Function

Specifications:

Model	MPS403
Rated Voltage	48VDC
Rated charge current	40A
Load current	15A
Input voltage range	52-88V
Max PV open circuit array voltage	88VDC
Typical idle consumption	At idle < 10mA
Overload protection (DC load)	2.0Inom>5s 1.5Inom>20s 1.25*Inom temperature controlled
Bulk charge	58.4(default)
Floating charge	53.6(default)
Equalization charge	56V(default)
Overcharge disconnection	59.2V
Over charge recovery	54.4V
Over discharge disconnection	43.2(default)
Over discharge reconnection	49.2V
Temperature compensation	-52.8mV/℃
Lead acid battery settings	Adjustable
NiCad battery setting	Adjustable
Load control mode	1. Low Voltage Reconnect(LVR): Adjustable 2. Low Voltage Disconnect(LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection
Low voltage reconnect	48.0-56.0Vdc
Low voltage disconnect	42.0-50.0Vdc
Ambient temperature	0-40℃(full load) 40-60℃(de-rating)
Altitude	Operating 5000m, Non-Operating 16000m
Protection class	IP21
Battery temperature sensor	BTS- optional remote battery temperature sensor for increased charging precision
Terminal size(fine/single wire)	#8 AWG
Size	230243116mm
Weight	3kg

Package

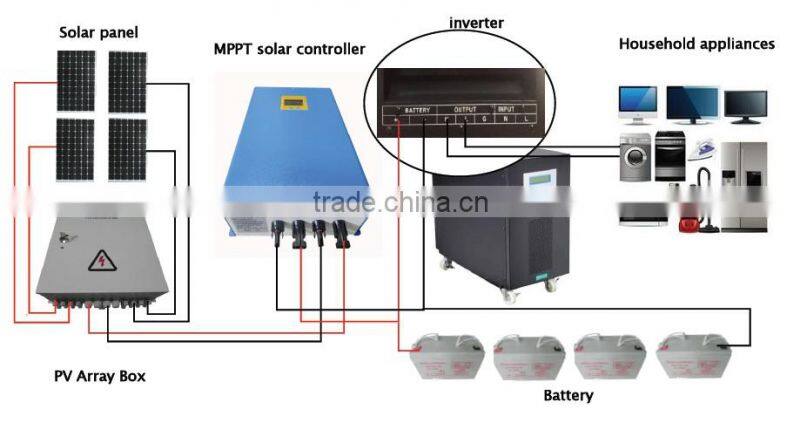

Application

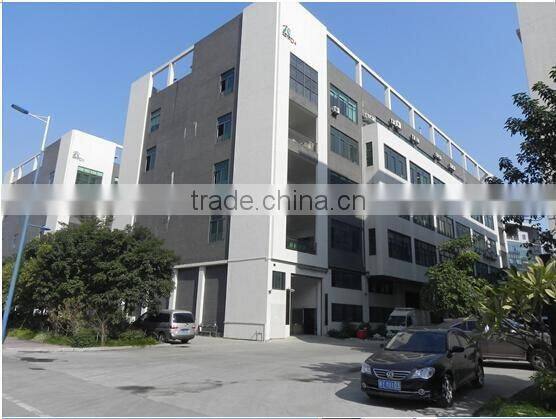

Company Intruduction

Shenzhen Modern Renewable Energy Ltd. was founded in 1998, covering area more than 20, 000

square meters. The headquarters are located Building 4, Area D, New lighting Source Industrial Base, South Luocun Road, Luocun Town, Nanhai District, Foshan City, Guangdong Province, China.

We have our own independent wind turbine manufacturing plant and R&D department of wind turbine generator control system, solar panel, grid tie inverter, off grid inverter, controller, battery, etc.

At an early time, our company was famous for producing a variety of inverters at home and abroad. In 2005, we began to R&D and produce new energy products, R&D generator, and obtain great success, with 15 terms of new patents have been reported.

Depending on powerful technical strength and many years manufacturing experience,MRE has rapidly developed into a new energy manufacturer focused on wind power generation system and solar power system.

In the year of 2010, our company established Marketing Service Center in Washington, America, and our products are authorized by CE test system and the ISO9001: 2000 international quality system certification. UL certificate is being tested.

In the year of 2014, MRE company are well known as Guangdong Province High Technology Corporation.

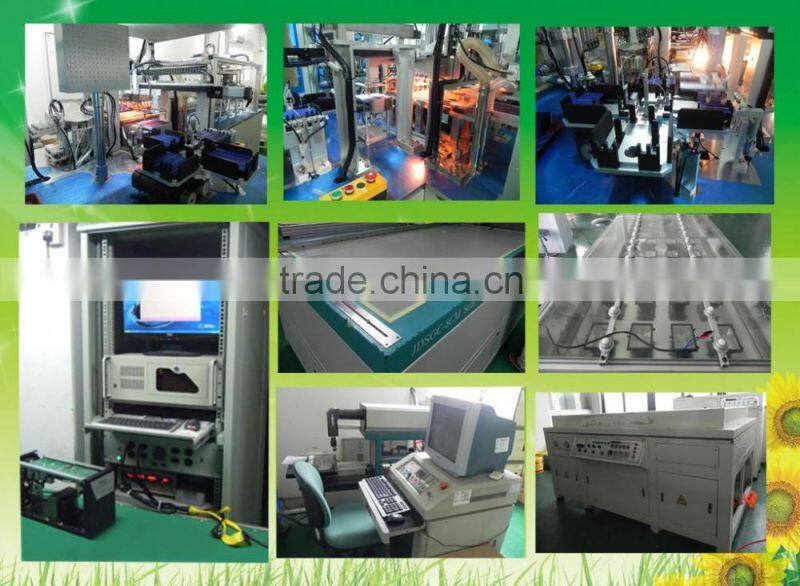

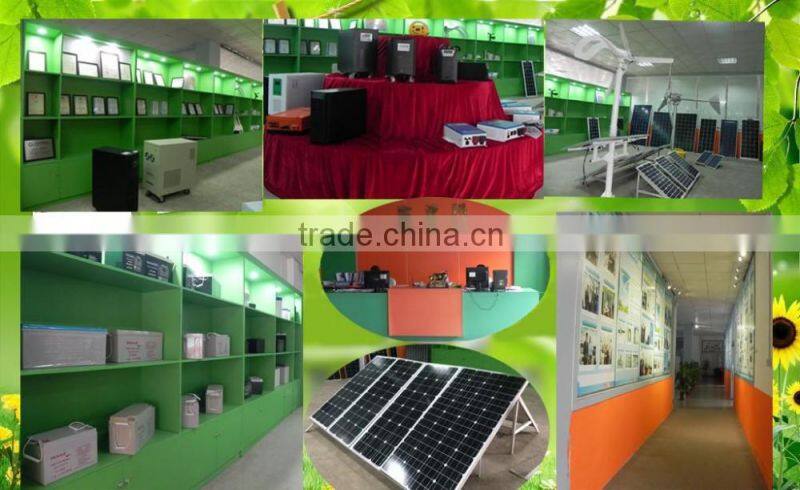

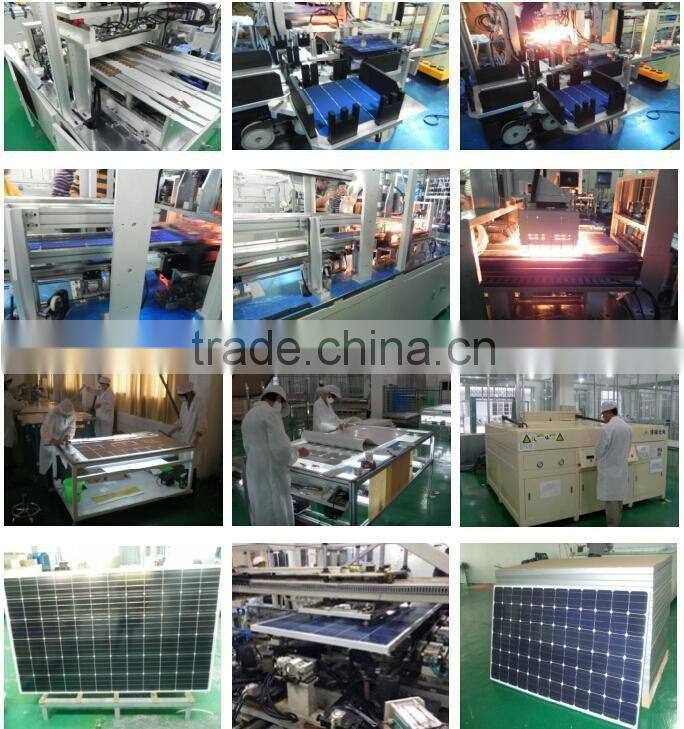

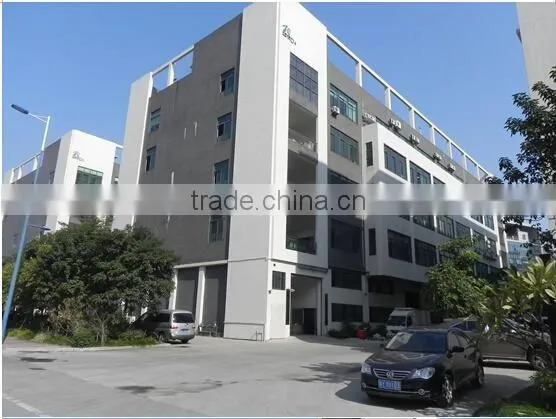

Factory Show

Certificates:

Other types solar charge controller,Please click on the link below:

PWM solar charge controller

12V MPPT solar controller

24V MPPT solar controller

48V MPPT solar controller

96V MPPT solar controller

Above 96V MPPT solar controller

By the way,our products cover solar panel, wind turbine, controller, inverter, battery, solar light, portable solar power generator and so on.

solar panel

solar power system

inverter

battery

wind turbine

solar light

As a manufacturer with competitive price, hope that we can have chance to cooperate, if have any questions, feel free to contact us for further discuss:
