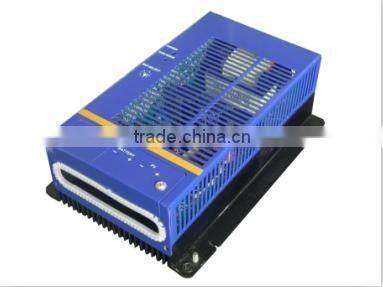

24VDC 20Amp Solar Mppt Charge Controller

US$ 54 - 85 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MRE

Model Number:

MPS201

Foshan City Lvguang Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOSHAN GUANGZHOU OR CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MRE

Model Number MPS201

Application Solar System Controller

Rated Voltage 12V

Maximum Current 20A

Solar Mppt Charge Controller

Features

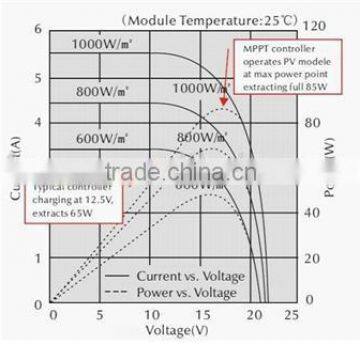

1. Integrated MPPT capability increases PV system efficiency 20~30%

2. A DC Load.

3. An optional battery temperature sensor ensures precise battery charging.

4. LED displays to indicate the status of charge.

5. Lighting protection.

6. Reverse current at night.

7. Three-stage battery charging (bulk, absorption, and float) with optional temperature Compensation.

8. It can improve battery life.

9. Automatic overload protection in both active and passive modes.

10. Microprocessor controlled.

11. 3 years warranty.

Technical Parameters:

Model	MRE-201	MRE-301	MRE-401
Rated Voltage	12/24VDC
Rated charge current	20A	30A	40A
Load current	15A
Input voltage range	15-55VDC
Max PV open circuit array voltage	55VDC
Typical idle consumption	At idle < 10mA
Overload protection (DC load)	2.0Inom>5s 1.5Inom>20s 1.25*Inom temperature controlled
Bulk charge	14.6V/29.2V(default)
Floating charge	13.4V/26.8V(default)
Equalization charge	14.0V/28.0V(default)
Overcharge disconnection	14.8V/29.6V
Over charge recovery	13.6V/27.2V
Over discharge disconnection	10.8V/21.6V(default)
Over discharge reconnection	12.3V/24.6V
Temperature compensation	-13.2mV/℃/-26.4m/℃
Lead acid battery settings	Adjustable
NiCad battery setting	Adjustable
Load control mode	1. Low Voltage Reconnect(LVR): Adjustable 2. Low Voltage Disconnect(LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection
Low voltage reconnect	12.0-14.0/24.0-28.0Vdc
Low voltage disconnect	10.5-12.5/21.0-25.0Vdc
Ambient temperature	, 0-40℃(full load) 40-60℃(de-rating)
Altitude	Operating 5000m, Non-Operating 16000m
Protection class	IP21
Battery temperature sensor	BTS- optional remote battery temperature sensor for increased charging precision
Terminal size(fine/single wire)	#8 AWG
Package size ( mm )	23517095
N.W ( KG )	1.4
G.W ( KG )	1.6
