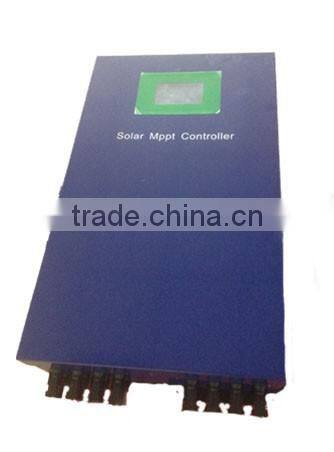

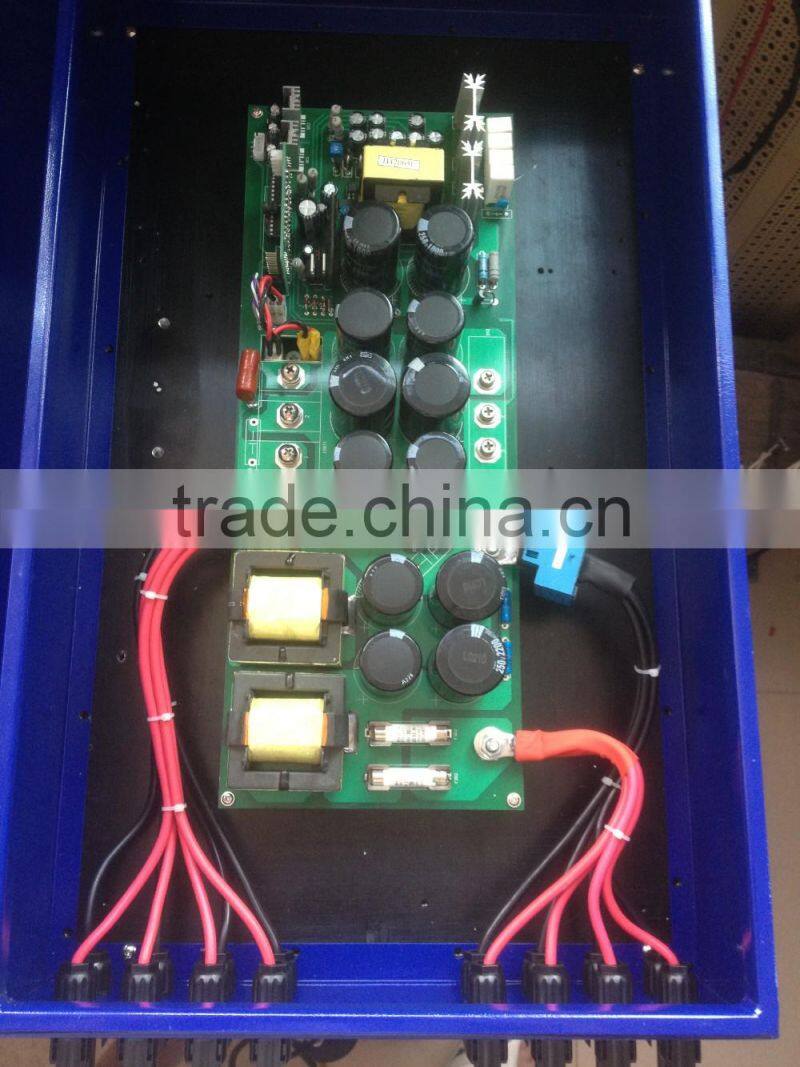

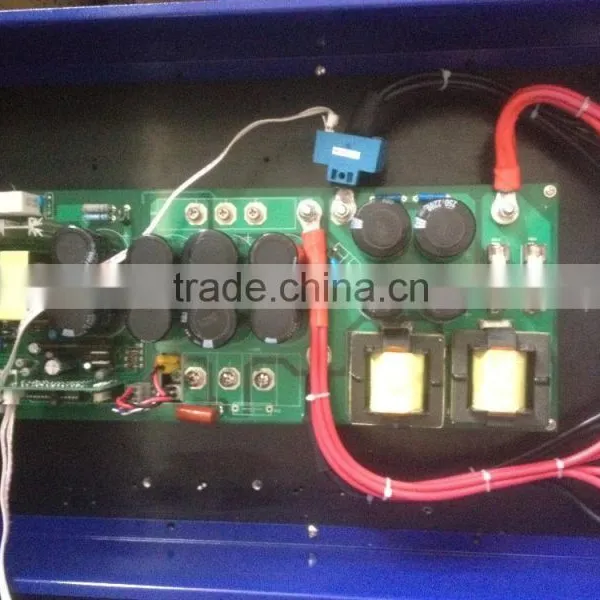

120V,192V,240V 40A MPPT Solar Charge Controller
Features:

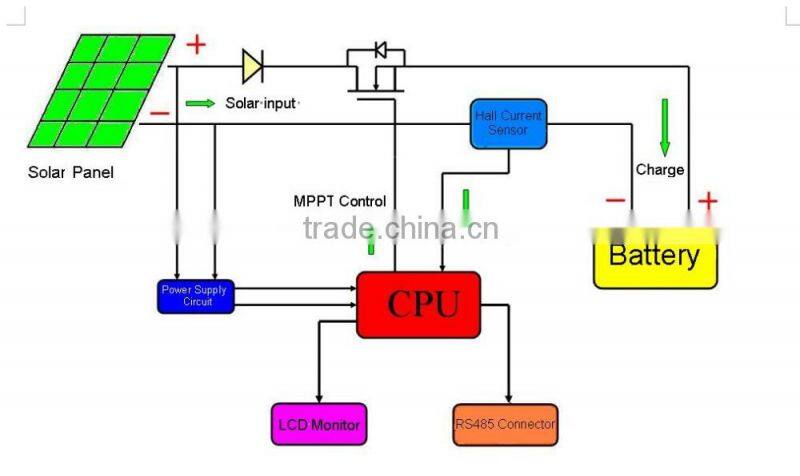

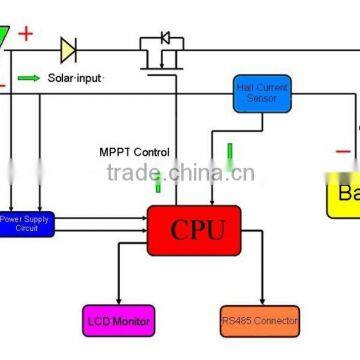

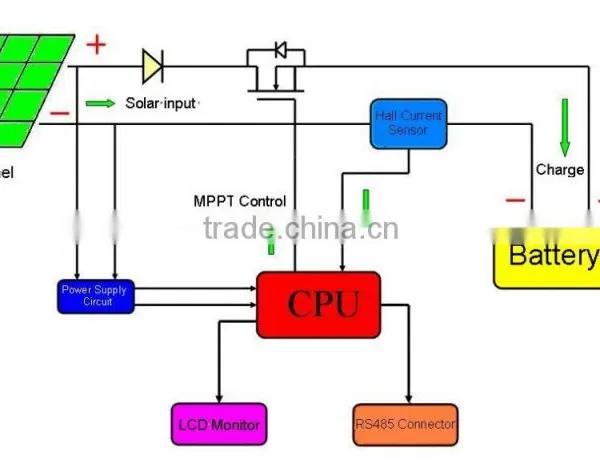

1. We adopt the principle of MPPT and advanced Microprocessor Controlled and DSP technology.
2. Improve PV system output efficiency of 20%-30%.
3. Wide input DC voltage range
4. Digital intelligent control, use light signal transmission to control signal inner system for transfer with protection from interference and power loss
5. Solar controller charge module with electric plug, which is more convenience for adding adequate capacity maintenance
6. Battery charge control adopt three stags eg, equilibrium, boost, and float
7. DC and AC power distribution cabinets designed with lighting protection, . connecting wires could come out from the top or bottom which is easy to connect.
8. When the temperature is 50℃, system will reach rated output.
9. High reliability, no need for maintenance, lifetime up to 20 years
10.LCD display which shows PV voltage, charge voltage and charge current
11.ISO9001:2000
12. warranty: 3 years
Electrical specifications @25℃
Model |
MPS404 |
MPS405 |
MPS406 |
MPS407 |
MPS408 |
MPS409 |
||||
Rated Voltage |
96VDC |
120VDC |
192VDC |
240VDC |
360VDC |
480VDC |
||||
Rated charge current |
40A |
40A |
40A |
40A |
40A |
40A |
||||
MAX PV power |
6kwp |
7.5kwp |
12kwp |
15kwp |
22.5kwp |
30kwp |
||||
Mppt DC voltage rang |
80v-200v |
100v-240v |
160v-400v |
200v-500v |
300v-750v |
400v-950v |
||||
Bulk charge |
116.8v |
146v |
233.6v |
292v |
438v |
584v |
||||
Floating charge |
107.2v |
134v |
214.4v |
268v |
402v |
536v |
||||
Equalization charge |
112v |
140v |
224v |
280v |
420v |
560v |
||||
Overcharge disconnection |
118.4v |
148v |
236.8v |
296v |
444v |
592v |
||||
Over charge recovery |
108.8v |
136v |
217.6v |
272v |
408v |
544v |
||||
Over discharge disconnection |
86.4v |
108v |
172.8v |
216v |
324v |
432v |
||||
Over discharge reconnection |
98.4v |
123v |
196.8v |
246v |
369v |
492v |
||||
Lead acid battery settings |
Adjustable |
|||||||||
NiCad battery setting |
Adjustable |
|||||||||
Ambient temperature |
0-40℃(full load) 40-60℃(de-rating) |
|||||||||
Altitude |
Operating 5000m, Non-Operating 16000m |
|||||||||
Protection class |
IP54 |
|||||||||
Battery temperature sensor |
BTS- optional remote battery temperature sensor for increased charging precision |
|||||||||
