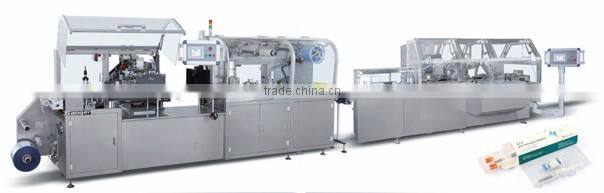

GYC-300 Vials Blister Packing and Cartoning Packaging Line
Applications:
The production line is the first domestic automatic packaging equipment for the pre-filled syringe, and developed by ourself . This line suitable for syringe, syringes and vials mixed packing.
Feature:
1.Uses the ABB Robots feeders, improve production efficiency and automation program
2.The feeder can be connect with labeling machine , output can be used with strapping machine, carton packer and other equipment ,thus formed a complete automatic packaging production line
3.Follows the GMP structure standard ,and adopts PLC touch screen interface control system
4.Uses the servo motor -driven and the main motor is adopts frequency control
5.Equipped blister forming detection ,feeding Camera detection, lack of material testing, to ensure the passing rate of finished products
6.Uses the safety cover protection devices to ensure operator safety.
| Max Output: | 300 cartons/min |
| Max Forming area and depth: | 345×130×35mm |
| Leaflet size : | (100-260)×(100-170)mm |
| Carton material: | 250-350g/m2 |
| Carton Size: | (60-230)×(20-140)×(14-80)mm |
| Leaflet material: | 50-70g/m2 |
| Air compressor | 0.6-0.8/Mpa≥0.8m3/min |
| Power | 380V 50HZ 8Kw(220V, 60Hz) |
| Weight | 5000kg |
