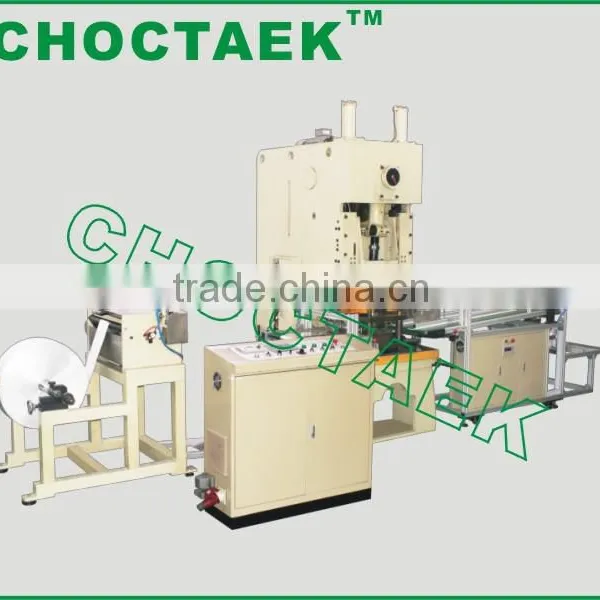

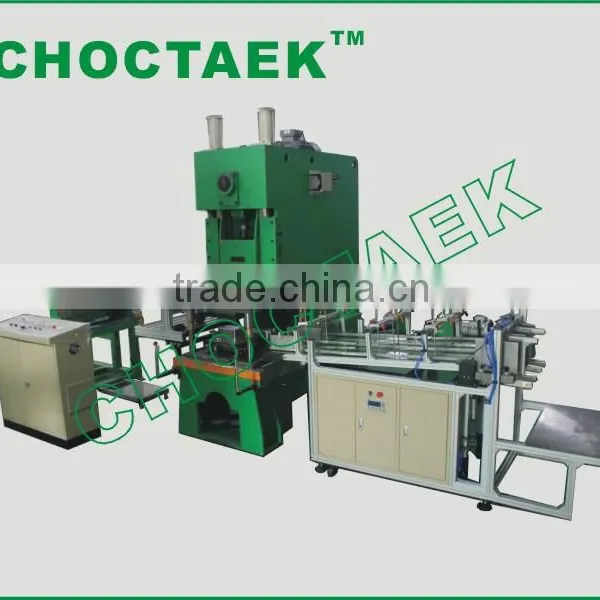

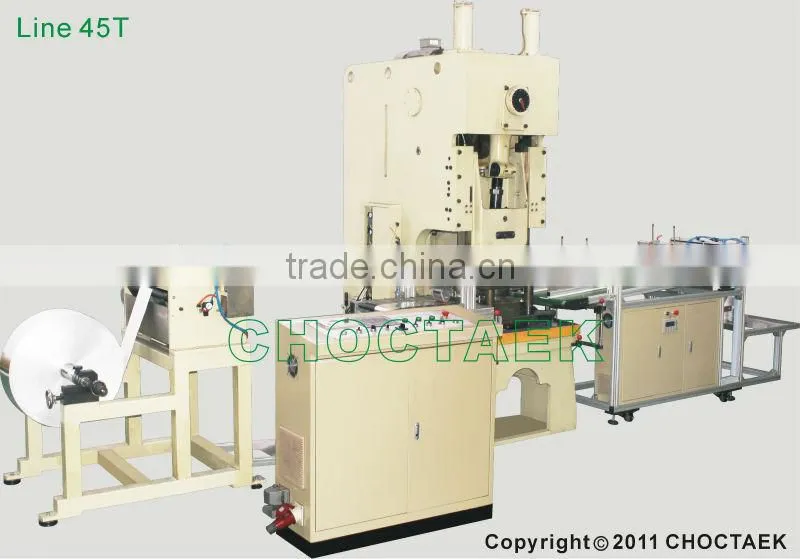

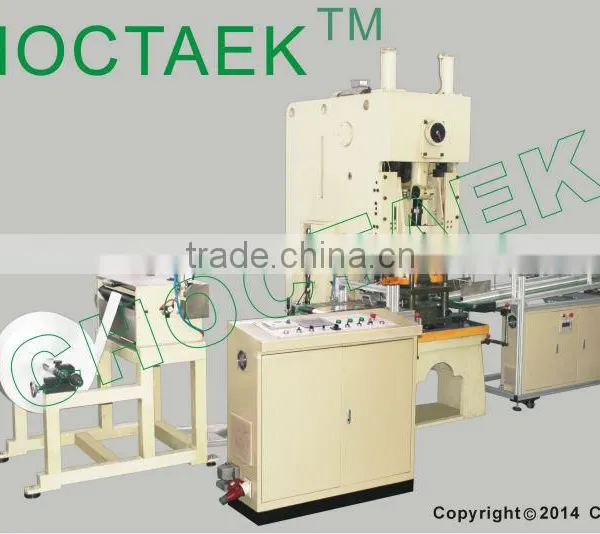

Aluminium foil container prodcution line CTJF-45T (full-auto)

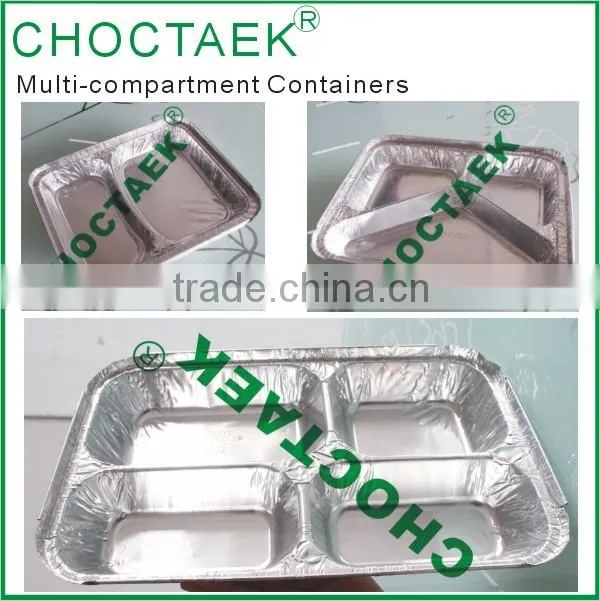

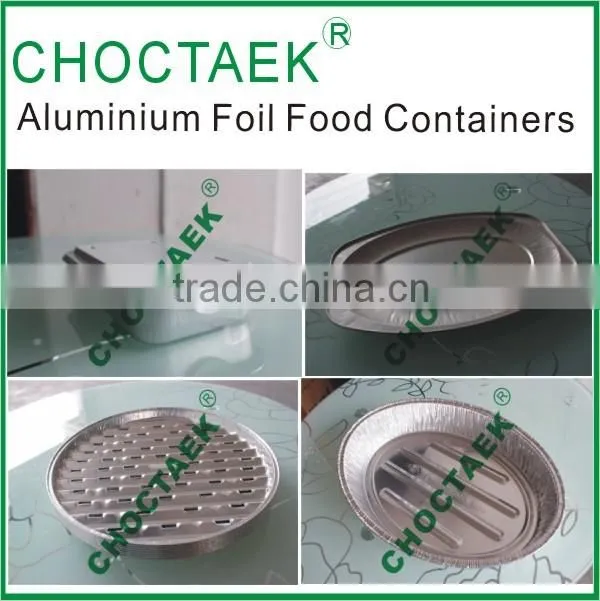

Aluminium foil container making machine CTJF-45T can produce aluminium foil containers, dishes and trays. The working speed of production line CTJF-45T is 40-70 pcs/min, and its speed depends on container’s size and complexity.
Aluminium foil container production line CTJF-45T is composed of the followings:
- Decoiler( with an auto-lubricator)
- Electrical control panel
- Foil feeder
- 45 ton pneumatic press

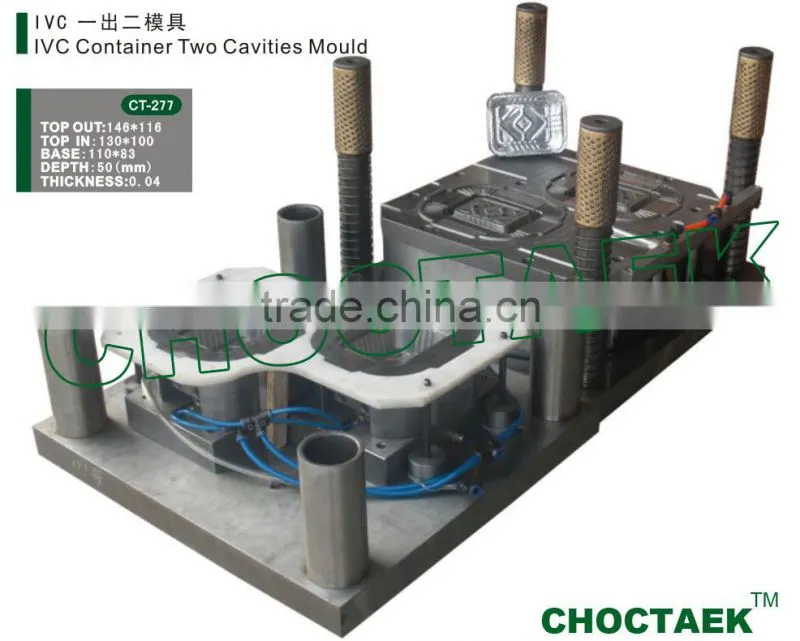

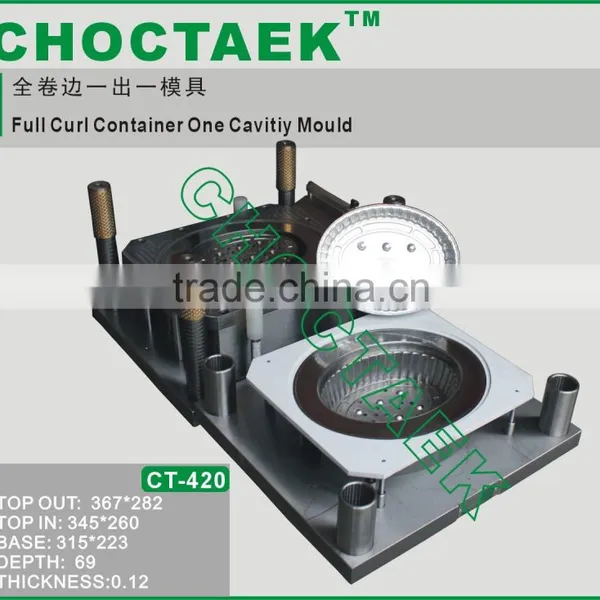

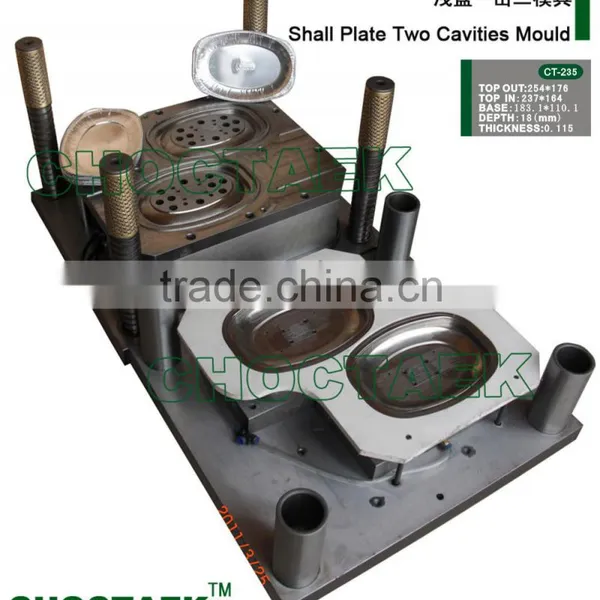

- Aluminium foil container mould
- Container collector(semi-auto or full-auto)
- Collection desk
Main Features:
(1) This full production line work automatically. Worker control and regulate this production line through electric control panel, including the air-pressure and electricty.
(2) The Max. width of decoiler is about 550mm. The Max. Diameter of foil is 650mm.
(3) There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
(4) The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high- precision step.
(5) The press can be equipped with single cavity or multi-cavities moulds for producing wrinkle-wall or smooth-wall containers. It is equipped with a mould liffter which can lift and low the mould automatically when change a mould.
(6) We can design and manufacture different machines on different customers’ request.
Introduction of Company :
Since 2003,CHOCTAEK has been specialized in producing aluminum foil container mould, aluminum foil container production lines and other relatives machines. We are keep researching and developing machines and moulds to fulfill the integration and full-automation of aluminum foil container production. Till March on 2013, we have developed and produced 600 aluminum foil container moulds which are in different sizes and shapes.
We have exported machines and moulds to more than 30 countries and offer service to 80 companies. We continuously offer technical support and consulting service to new customers.
CHOCTAEK always pay attention on your requirement and concern your company's development. We make every effort to improve our technology & quality, to ensure to offer you product in best quality and technical service. We requite your expectation and support in the way of upgrading technology continuously. CHOCTAEK will satisfy your specific demand.
1. Engineers available to service machinery overseas.
2. We can provide intermship service and help you to train
operator and machine.
Components of production line:
1. Auto-lubricated Foil Feeder
2. Length Controller
3. Seimens Control Panel
4. Pneumatic Press

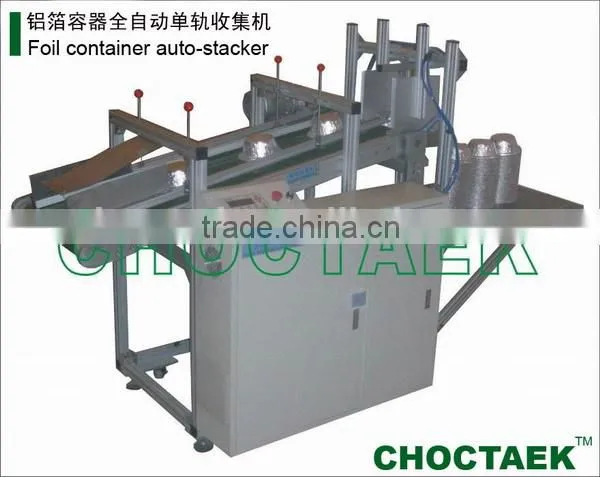

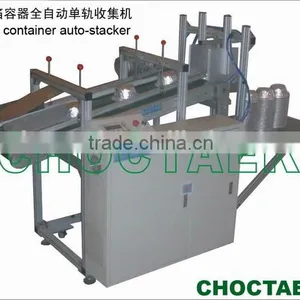

5. Automatic Stacker
