wide output range full stainless steel fruit pulper machine

Specifications

1.fruit pulper machine
2.for mango,tomato,orange,apple...
3.120-40000kg/H
4.single or double channel
5.good service

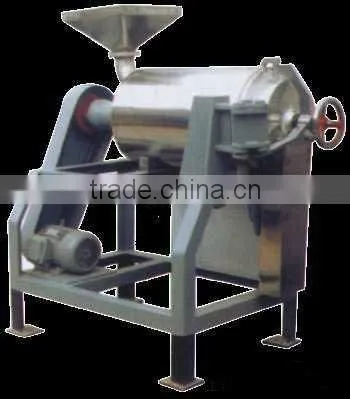

                                                                            Fruit Pulper machine



Description for Fruit Pulper  Machine:





1.The machine adopts the abroad advanced technology, using double stage or single stage taper type screen mesh structure, it can avoid the blocking of screen hole.



2.The residue and juice can be separated very well, and the water content of residue can reach the foreign level. 3.Screen mesh uses special material to guarantee the working life.

4.Using the liquid lube oil, double stage oil sealing designing and cooling water passage, all the above method can guarantee the working life of the axes.

5.At the bottom of the pulping machine there is balance tank with automatic liquid level controller which can realize the online linkage control, in this way, the jam can be conveyed to the concentrated machine equably....



Feature for Fruit Pulper Machine:



• Fruit pulp and the dreg separate automatically;
• Can be mounted in a processing line, and can also can perform the production by own.
• Al the material where contact with the product is made of high quality stainless steel which are in standard of food requirement.
• Easy to clean and disassemble and assemble

Parameter for Fruit Pulper Machine:





Model	Disposing capacity   (kg/h)	Power KW	Rotation	Outline dimensions (mm)
			speed (r/min)
HYDJ3-4.0	2000-4000	15	860	1535×1650×1600
HYDJ3-7.5	5000-7000	18.5	860	1935×2275×1700
HYDJ3-10	8000-10000	22	860	2200×2300×2500
HYDJ2-4.0	2000-4000	7.5	860	1535×1420×1533
HYDJ2-7	5000-7000	15	860	1935×1420×1600
HYDJ2-10	8000-10000	22	860	2200×1500×2200
HYZJ1-15	10000-15000	85-110	200-1200	2500×850×1650
HYZJ1-25	20000-25000	25		2500×1200×2200
HYDJ1-0.12	50-120	1.5	860	800×800×900
HYDJ1-2.5	1000-2500	4	860	1450×770×1523
HYDJ1-5	3000-5000	7.5	860	1600×850×1700
