Bioenergy Wood Pellet Machine/Wood Pellet Mill

Specifications

Bioenergy Wood Pellet Machine/Wood Pellet Mill
Imainly used for wood,straw,cotton stalk,rice husk,peanut shell,bamboo,empty

Sawdust Pellet Machine/Straw Pellet Machine

biomass energy pellet mill,All the research and development,designing and produced by ourselves.It is mainly used for wood,straw,cotton stalk,rice husk,peanut shell,bamboo,empty fruit branch,pulverized coal and waste paper etc.Advantages of our products is structure closely,easy to use,run stably,Advantages of pellets is high density,high fuel value,low moisture and low ash content.Gearbox of pellet mills running by high precision gears, Auto-matic Lubricant pump working between gearbox and main shaft bearing.To guarantee the bearing long life



Model	Power (Kw)	Capacity (kg/h)	Dimension (mm)	Weight (kg)
9FK-350	30	400-500	1650*700*1300	1000
9FK-450	37	600-700	1300*700*1500	1450
9FK-550	45	800-1000	1400*750*1600	2000
9FK-800	90	1500-2000	1900*1000*2000	3900
9FK-1000	110	2500-3000	2000*1000*2050	4800

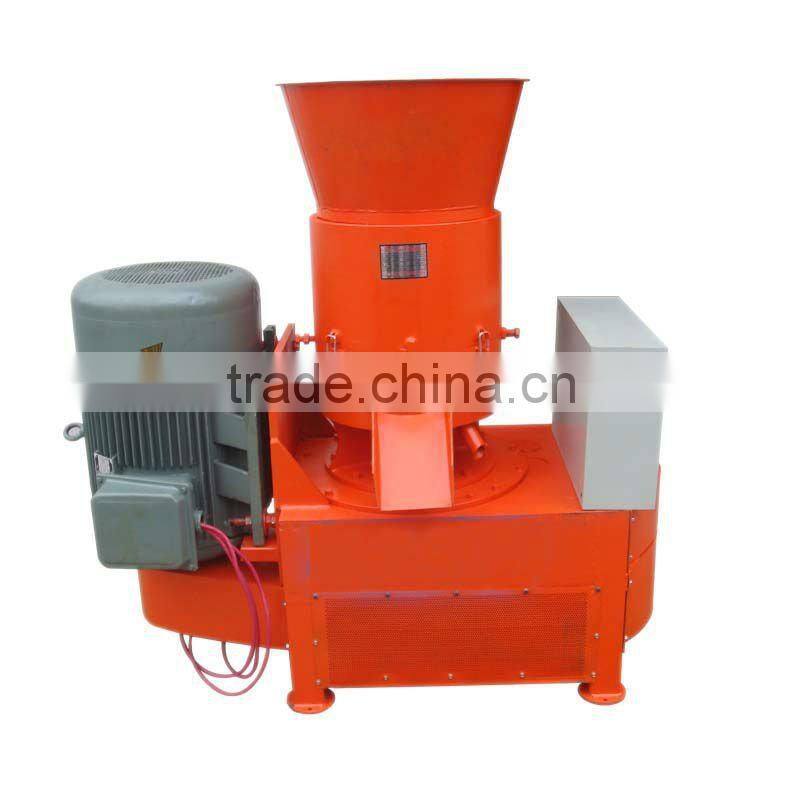

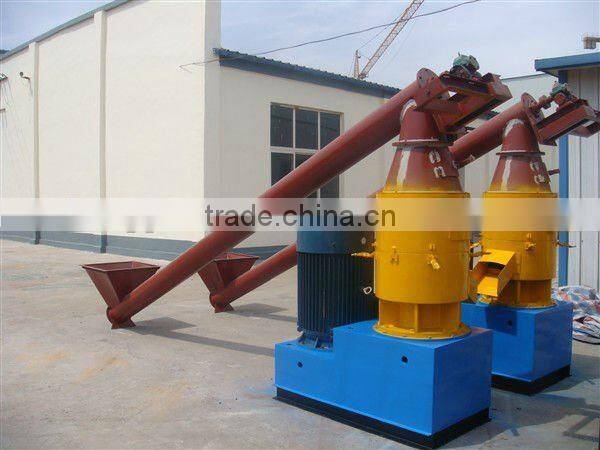

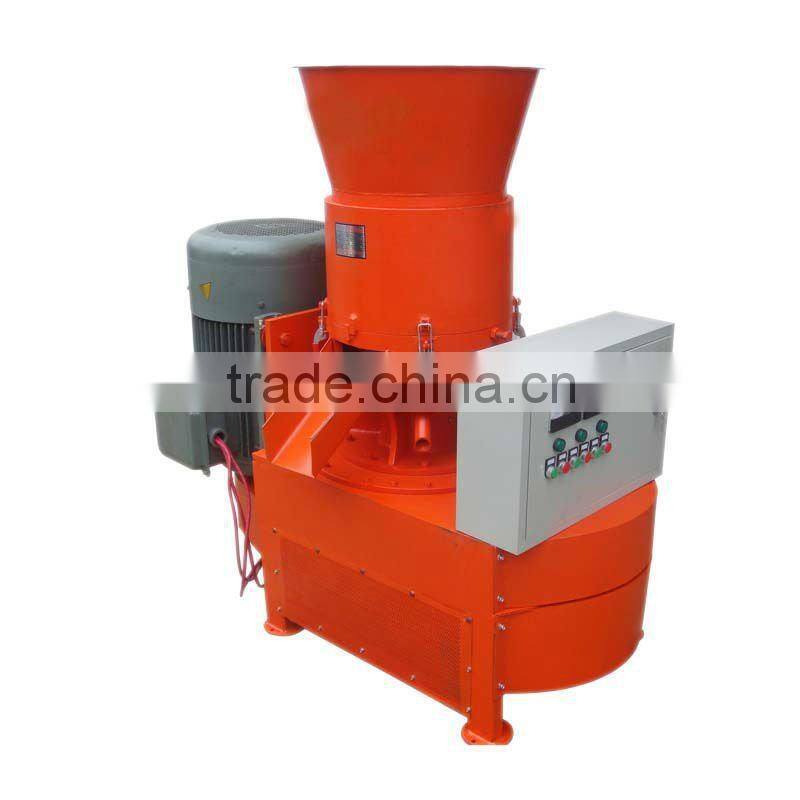

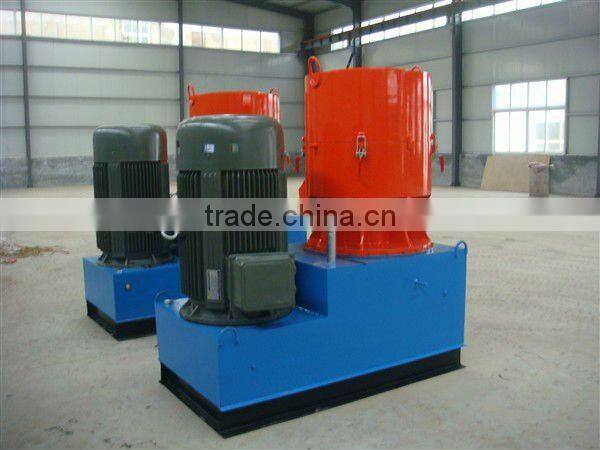

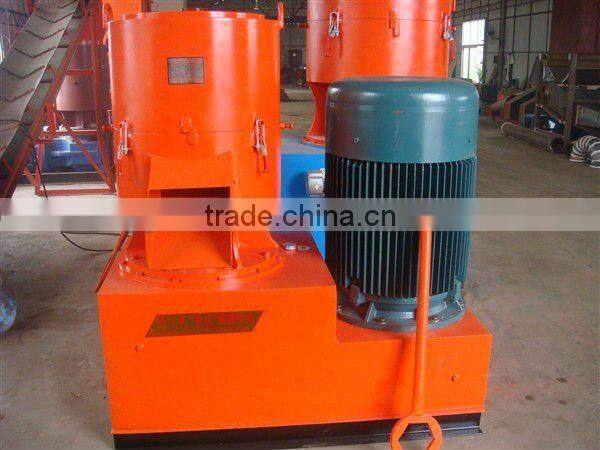

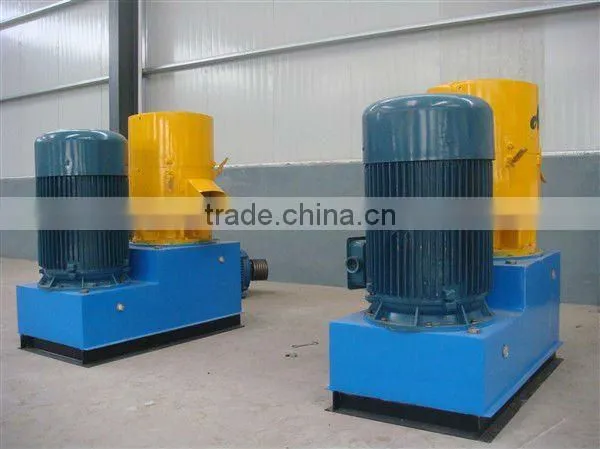

Pellet Mill Machine for wood,sawdust, straw 9FK-350 photos:



Pellet Mill Machine for wood,sawdust, straw 9FK-450 photos:

Pellet Mill Machine for wood,sawdust, straw 9FK-550 photos:

Pellet Mill Machine for wood,sawdust, straw 9FK-800 photos:

Pellet Mill Machine for wood,sawdust, straw 9FK-1000 photos:
