Specifications
1.Automatic Oil Heating injection Mould Temperature Controller2.Customized
3.High quality
4.Quick delivery
5.Manufactory

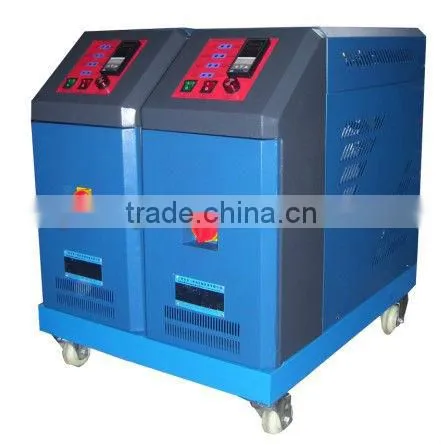

Automatic Oil Heating injection Mold Temperature Controller
Special Features:
1.PID adopted to control the temperature,keeping the error within ±1°C,keeping
long time constant temperature,high efficiency and energy saving.
2.Alarm for thermo-couple open circuit,phase fault protect,oil pump protect,overheat
protect,oil shortage protect.
3.Dual digital display shows the actual temperature and the seat temperature.
4.Microcomputer chip control panel with light-touch switch to start the machine
with one press.
5.Visual and easy to operate,easy to maintain.
6.Stainless steel tank without leakage and durable.
7.Circumfluence type is able to re-collect the diathermanous oil easily and rapidly.
8.Exquisite appearance and small in size.
Specification:
| Model | YMTHL-95CW2 |
| Temp.range | 40°C-95°C |
| Diathermanous mediu | Water |
| Diathermanous ability | 6kw*2 |
| Cooling method | indirect cooling |
| Voltage | 380V/50HZ 3phase (different price if power different) |
| Power | 0.5HP*2 |
| Max.flux | 40L/min |
| Oil tank | 5L*2 |
| Dimension | 700*560*700mm |
| Weight | 100KG |
About us:
1.We are a leading manufacturer specializes in designing and manufacturing mould
temperature controller with the experience of more than 30 years.
2.Our products are widely recognized and trusted by domestic and foreign customers
and can meet continuously developing economic and social needs.
3.All inquires are sincerely welcome.Should you express any interest and wish to find
out more please do not hesitate to contact us.
