Specifications
1) Multi-functional application;2) Best quality and service;
3) Prompt delivery.
wood chipper sawdust dryer Rotary-cylinder Dryer with Professional techonlogy
1. Function
It is used to dry the biomass powder like sawdust with up to 40% moisture content to 15% moisture content that usually required to make biomass pellet
2. Concerning raw materials
The sawdust must be relatively well ground and consistent in particle size.The particles are suspended in mid air momentarily by hot air from the included Hot Air Stove which uses a portion of the sawdust or biomass as fuel, but can also burn by coal, oil, or natural gas.This dryer makes a great compliment for use with hammer mill and pellet mill.
3. Description
Drier is a cylinder and slantwise slightly, the rotate speed can be adjustable.
Wet raw materials are fed into cylinder, the materials are well-distributed and dispersed after be turned over by shoveling plate, then the materials contact with the hot air fully, the drying is acierated.
Shoveling plate can be selected to meet different materials
4.Main Data and Model
|
Spec and model |
Dia. Of roll |
Length of roll |
Gradient |
Speed (rpm) |
Weight (t) |
Power (kw) |
Cubage (m3) |
6GT600 |
Φ600 |
8m |
3-5 |
8 |
5.1 |
4/6p |
2.26 |
6GT800 |
Φ800 |
10m |
3-5 |
7.2 |
6.9 |
4/6p |
5.02 |
6GT1000 |
Φ1000 |
10m |
3-5 |
6.73 |
7.5 |
5.5/6p |
7.85 |
6GT1200 |
Φ1200 |
12m |
3-5 |
5.8 |
13.1 |
11/6p |
13.31 |
6GT1500 |
Φ1500 |
12m |
3-5 |
4.8 |
22.3 |
15/6p |
21.2 |
6GT2200 |
Φ2200 |
14m |
3-5 |
3.2 |
52.8 |
30 |
53.22 |
6GT2400 |
Φ2400 |
18m |
3-5 |
3 |
73.3 |
37 |
81.43 |
6GT2800 |
Φ2800 |
24m |
3-5 |
2.59 |
97 |
75 |
147.8 |

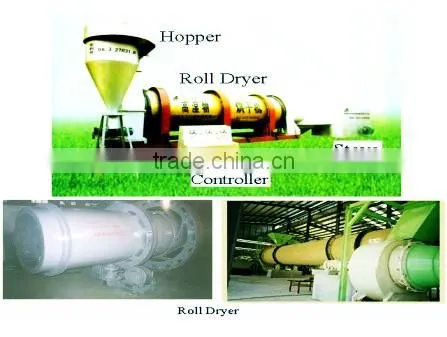

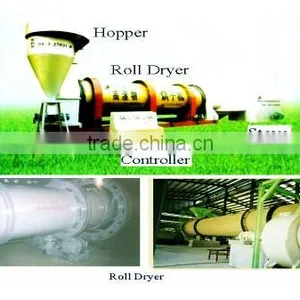

5.Picture
