High power 60W led explosion proof flood light RFBL154-60
Which areas need explosion proof light?
It meets the standards and requirements for hazardous environments.
Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and damp condition
Hazardous zones: 1, 2
Gas : IIA IIB IIC,
Temperature :T1-T6
What is the benefit and feature of our explosion proof light?
Optical system features
Choose import chip, having excellent lumen maintenance and high light effect.
Adopted SMT, to improve thermal conductivity greatly
Carefully design of honeycomb structure,effectively improve the efficiency of lighting
Drive system features
Constant current drive equipped with function of over voltage protection, short-circuit protection.
Model EA as normal work lighting, equipped with emergency function; model EB only for emergency lighting, closed status in ordinary times. model A,B all can start emergency light when the main power is power off.
power itself has excellent anti electromagnetic interference , will not cause any interference by any electrical machines and power net.
Equipped wide voltage compatible characteristics, tolerance 20% voltage fluctuation
Adhesive sealing process to ensure that the element anti corrosion
Heat dissipation system features
Carefully design of three cavity independent structure (independent of light source/power/wiring cavity) to ensure that the element work stable.
Designed to guide the cooling air duct with a diversion structure,ensure the service life of LED light source.
Designed independent power cavity , the heat of Led do not impact power work, prolong the service life.
Lamp structure features
choose explosion proof class IIC and IP66 protection grade, it has excellent explosion proof protect grade performance
High borosilicate glass, can afford strong impact.
All exposed fasteners and accessories are made of high corrosion resistance of stainless steel materials.
Adopt one-piece emergency cavity, do not need equip emergency box, convenient to install and maintenance .
The top-chamber lid of chaining, convenient to user wiring and maintenance; many kinds of installation method for choose from
what is the parameters of our explosion proof light?
| Technical parameters | |||||
| No | Specification | unit | Reference values | ||
| 1 | Rated Voltage | V | AC220 | ||
| 2 | Frequency | Hz | 50/60 | ||
| 3 | Light source(LED) | Power | w | 20 | |
| 30 | |||||
| 40 | |||||
| Luminous flux | 20 | lm | 2100 | ||
| 30 | 3150 | ||||
| 40 | 4200 | ||||
| service life of light source | h | 100000 | |||
| 4 | The introduction of cable(diameter) | mm | 8~12 | ||
| 5 | Dimensions | Length | mm | 220 | |
| width | 220 | ||||
| height | 270 | ||||
| 6 | weight | kg | 3.5 | ||
| 7 | Screw thread of inlet | G3/4'' | |||
| 8 | Protection grade | IP66 | |||
| 9 | Anti Corrosion | WF2 | |||
| 10 | Insulation Grade: | I | |||
| 11 | Ex code: | Ex d II C T6 | |||

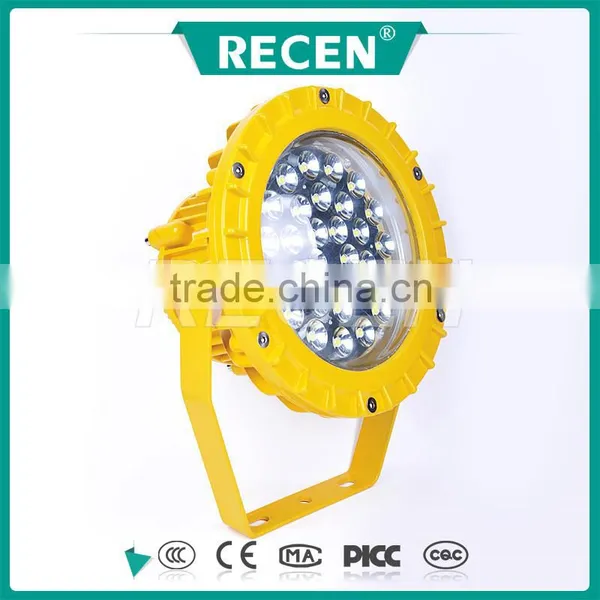

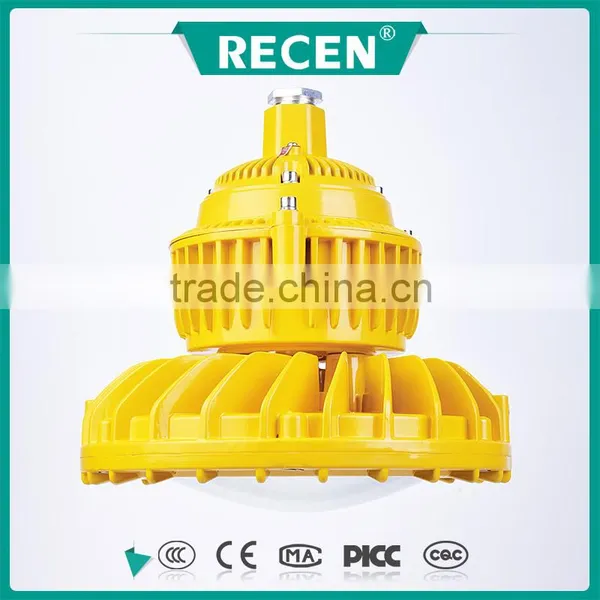

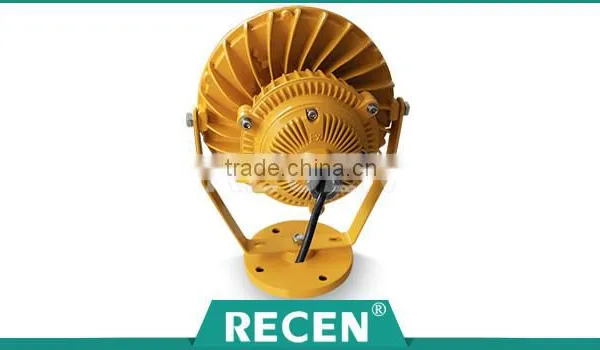

Product Picture

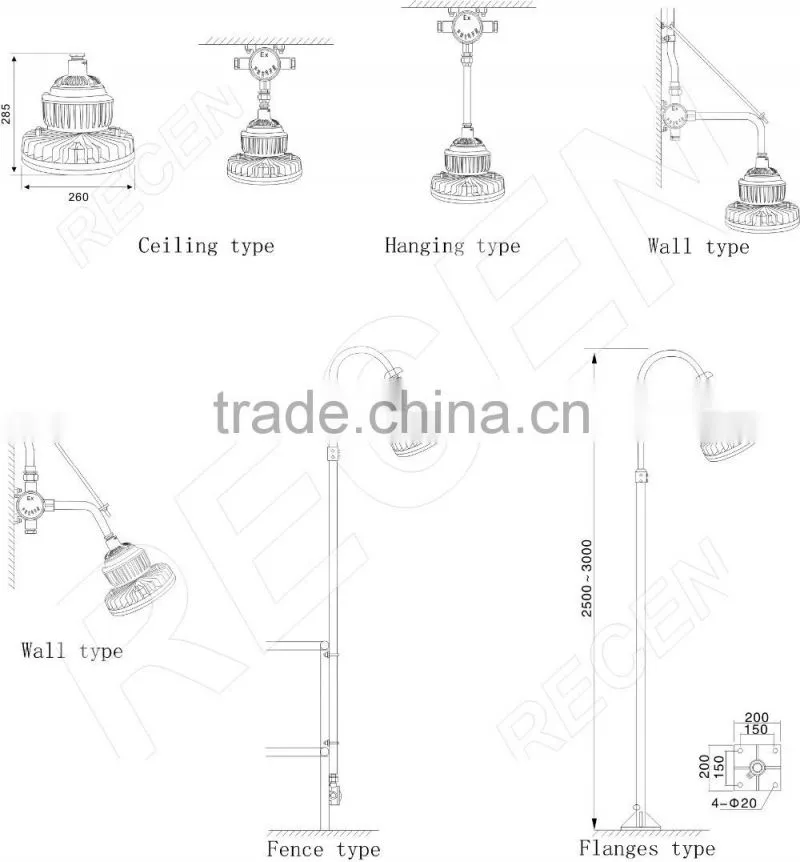

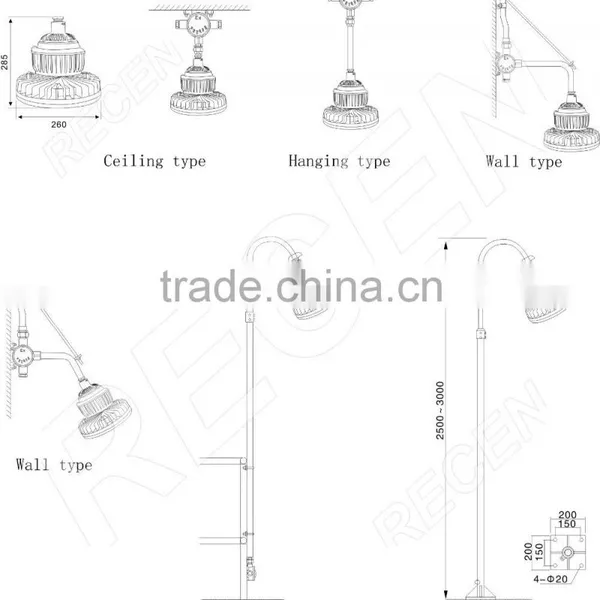

Explosion proof light of installation drawing

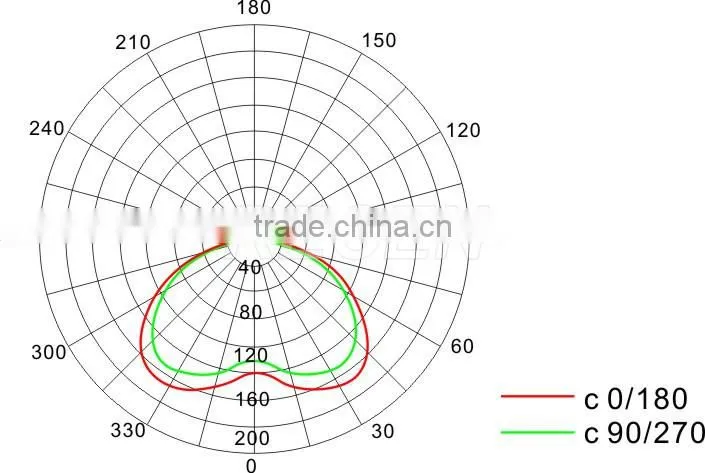

Explosion proof light of light distribution curve
Related products Some of model light have three rated power for your select , satified to your different demands.
| RFBL103 | RFBL158 | RFBL156 | RFBL164 | RFBL165 |
| RFBL104 | RFBL153 | RFBL160 | RFBL162 | |
| RFBL105 | RFBL155 | RFBL157 | RFBL161 | |
Packaging Details: regular packing or customized, The volume of the box is 29cmx28.5cmx30.5cm
Delivery Detail: sample within 3-7 day , batch product within 7-25days
Packing picture
What is our promised of quality Guarantee ?
Thank you for purchasing the products of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. The product warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us?
Because we believe in providing quality not just the first time, but every time:
•High Customer satisfaction
• Various of products
• Competitive price
• OEM/ODM are welcomed
OUR Factory
Our Fair
Our explosion proof light patents and ISO 9001:2008
Recen CCC certification , business license and trade mark.
RECEN tax registration certification and Organization-Code-Certificate
Q: Which areas need to use explosion-proof light?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of explosion-proof light?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of lamp will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
