Specifications
1.Self adhesive silicon tape2.Thermal conductive pad
3.Industry direct price
4.Thermal Interface Pad
We are a professional professional manufacturers of Thermally Conductive materials in China.

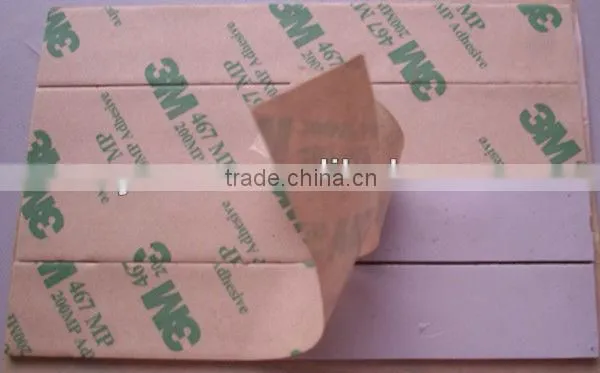

The adhesive thermal pad are covered with adhesive on both side or one side. It is mainly for the thermal conductivity between the heating device and the heat sink or the product outer covings without fastening devices.
We can supply various thickness for your reference.
Features:
1. Thermal conductivity:1.5 w/m-k
2. This kind of thermal conductive pad coved with adhesive has Ultra-stickiness can fasten the electronic device.
3. Easy to handle
4. Electrically isolating
5. Its appear to come in a variety of thickness and hardness.
6. Meet with the environmental requirements of ROHS and UL
Typical applications:
1. Power conversion equipment
2. LED light
3. HID ballast
4. Household appliances
5. Between IC and heat sink
6. between the Circuit board chip and heat sink of LCD-TV
Technical specifications:
Test item |
Test method |
Unit |
HCB150 Test value |
SCB150 Test value |
Color |
Visual |
Grey |
Grey |
|
Thickness |
ASTM D374 |
Mm |
0.5 to 10.0 |
0.5 to 1.5 |
Specific Gravity |
ASTM D792 |
g/cc |
1.8±0.1 |
1.6±0.1 |
Hardness |
ASTM D2240 |
Shore C |
18±5 to 40±5 |
70±5 |
Tensile Strength |
ASTM D412 |
kg/cm2 |
8 |
8 |
ASTM D412 |
Pa |
5.88*109 |
5.88*109 |
|
Continuous Use Temp |
EN 344 |
°C |
-40 to +220 |
-40 to +220 |
Volume Resistivity |
ASTM D257 |
Ω-CM |
1.0*1011 |
1.0*1011 |
Breakdown Voltage |
ASTM D149 |
KV/mm |
4 |
4 |
Flame Rating |
UL-94 |
V-0 |
V-0 |
|
Conductivity |
ASTM D5470 |
w/m-k |
1.5 |
1.5 |
Configurations available: 200mm*400mm, 300mm*300mm, specific size could be provided according to your requirements.
Why choose KUAYUE'''S thermal interface material?
1.Only thermal conductivity material we produced, so we are more professional.
2.We have a series of advanced equipments,look the one piece of the following pictures.
3. We are have our Lab Room test and directly control the quliaty of the products.
Thermal Conductivity Tester for test the Thermal conductivity
Constant Temperature Oven for test the Continuous use Temperature
4. Many of our thermal interface material has recieved the SGS,UL certification.
Packing details:
High quality polybags and carton or according to customers' requirements.
-430mm*230mm*120mm for 200mm*400mm size (carton box)
-320mm*320mm*120mm for 300mm*300mm size (carton box)
If you are interested our thermal interface material,please don't hesitate to contact us,we will provide you the best service.
