Specifications
1.Self adhesive silicon tape2.Thermal conductive pad
3.Industry direct price
4.3M Adhesive
HID lamp thermal pad with two-side 3M Adhesive tape

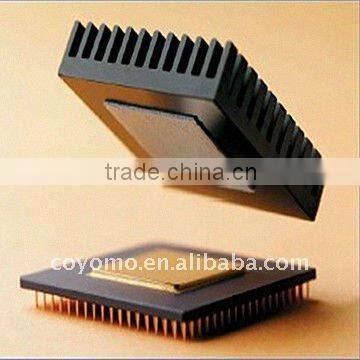

HID lamp thermal pad with two-side 3M Adhesive tape is adhesive thermal conductive silicon pad, mainly for the thermal conductivity between the heating device and the heat sink or the product outer covings without fastening devices.
Features & benefits:
1.Ultra-stickiness
2.Without fastening devices
3.Electrically isolating
4.Meet with the environmental requirements of ROHS and UL
Typical applications:
1.LED light
2.Power conversion equipment
3.Between the semiconductor or magnetic body and heat sink
4.HID ballast
5.Household appliances
Physical properties:
Test item |
Test method |
Unit |
HCB150 Test value |
SCB150 Test value |
Color |
Visual |
|
Grey |
Grey |
Thickness |
ASTM D374 |
Mm |
0.5 to 10.0 |
0.5 to 1.5 |
Specific Gravity |
ASTM D792 |
g/cm3 |
1.8±0.1 |
1.6±0.1 |
Hardness |
ASTM D2240 |
Shore C |
15 to 50 |
70±5 |
Tensile Strength |
ASTM D412 |
kg/cm2 |
8 |
8 |
ASTM D412 |
Pa |
5.88*109 |
5.88*109 |
|
Continuous Use Temp |
EN 344 |
°C |
-40 to +220 |
-40 to +220 |
Volume Resistivity |
ASTM D257 |
Ω-CM |
1.0*1011 |
1.0*1011 |
Breakdown Voltage |
ASTM D149 |
KV/mm |
4 |
4 |
Flame Rating |
UL-94 |
|
V-0 |
V-0 |
Conductivity |
ASTM D5470 |
w/m-k |
1.5 |
1.5 |
Configurations available: 200mm*400mm, 300mm*300mm, specific size could be provided according to your requirements.
Packaging:
-Carton box & Plastic bags
-430mm*230mm*120mm for 200mm*400mm size
-320mm*320mm*120mm for 300mm*300mm size
