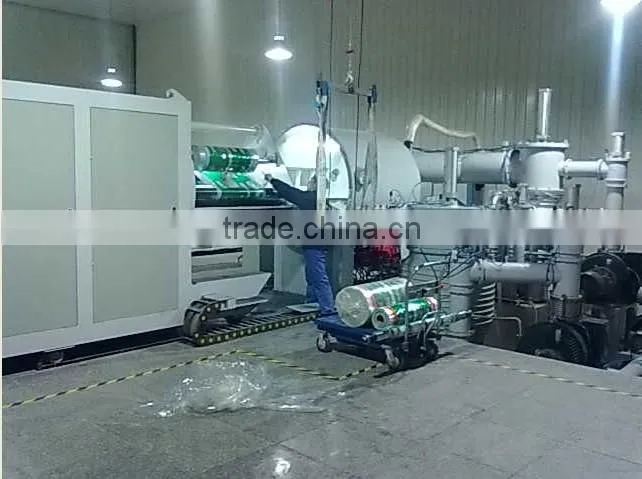

Help CenterYZ VAC's Vacuum Metallizing Machine
Related Products
-
Vacuum Coater Roll to Roll Vacuum Coater Metallization CoaterUS$ 150,000 - 250,000MOQ: 1 Set -
Machine for Metallized BOPP BOPP Film Metallizing MachineUS$ 200,000 - 250,000MOQ: 1 Set
-
Paper Vacuum Coating MachineNegotiableMOQ: 1 Set
-
Vacuum Metallizing Machine for Metallic Yarn Metallic Yarn Vacuum Metallizing MachineUS$ 250,000 - 3,000,000MOQ: 1 Set
-
Aluminum Vacuum Coating MachineUS$ 150,000 - 250,000MOQ: 1 Set
The vacuum metallizing machine can steam-plate many kind of materials such as PET, OPP, PVC, CPP, anti-counterfeit materials, hot stamping foil, gold and silver thread and surface decoration plastic film. It also can plate various of label, bottle label, brand, materials of warm-keeping and beam-reflecting papers, various of medium materials and so on.
Main technical parameter of vacuum metallizing machine
(Model No.:H1400-12)
name |
specification |
Dia.of chamber |
φ1400mm×length 1500mm |
Film width |
1250mm |
Dia of rolling |
650mm |
Rolling speed |
100m/min ∼400m/min |
Speed of Al-wire feeding |
0∼4m/min Al-wire spool φ200mm |
Way of Al-wire feeding |
Al-wire feeding by adjustment in-phase |
Evaporation transformer |
12units,each unit for power 12kw and output is 10v and the current is 1200A |
Quantity of evaporation boats |
12pieces,each piece for power 12kw,constant voltage and automatic thermal retardation adjustment,boat size:24X10X110mm |
power |
About 100KW |
1.free packaging 2. some wooden cases as the following picture:
1.Two engineers available to service machinary overseas.
2. It's 12 months warranty.
3.We are a family company and not a partner company,so we can supply after-sales service for long term.
1. Certificate: CE
2. World customers: We sold more than 20 machines to India,Turkey,Iran,Vietnam,Bangladesh and North Korea.
3. Our hall at Chinaplas 2014: W5
4. Our booth at Chinaplas 2014: P05
Company: Yuedong Metallizer
Sales assistant: Ms Sophia Chen
Mobile: +86-13902736527
Web:

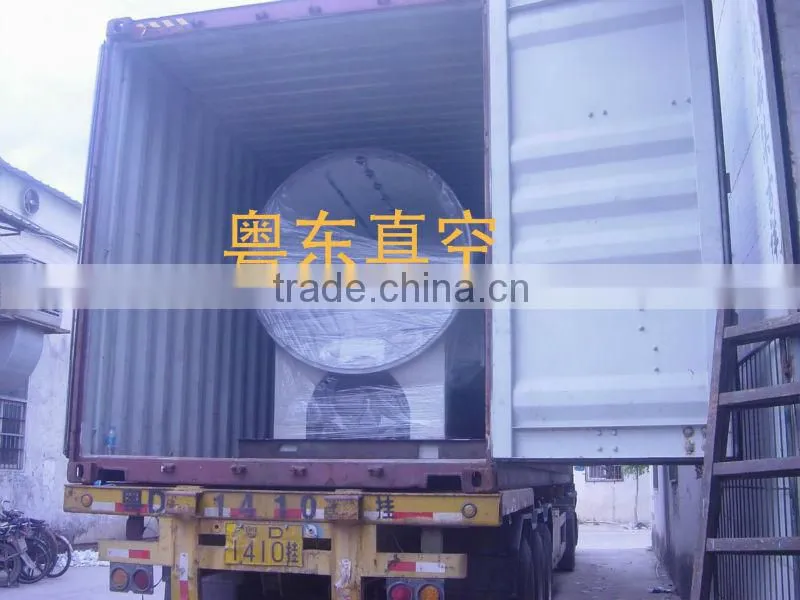

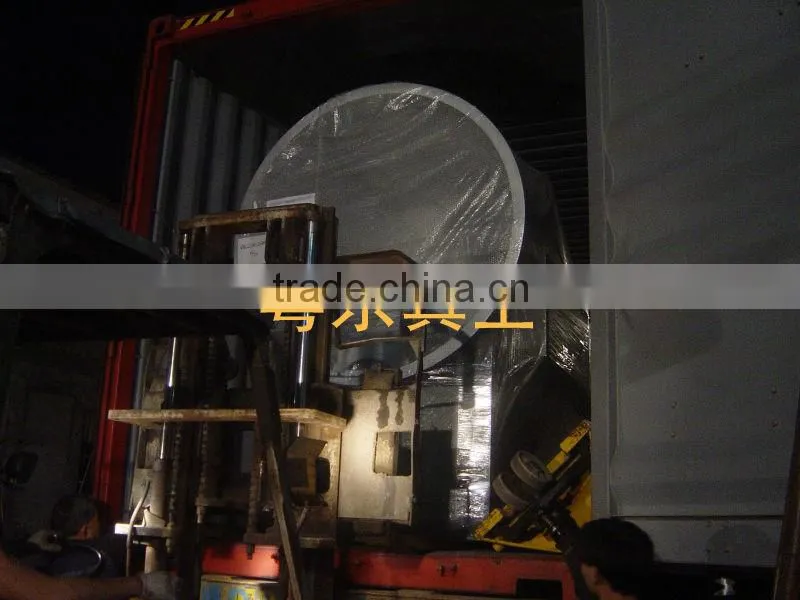

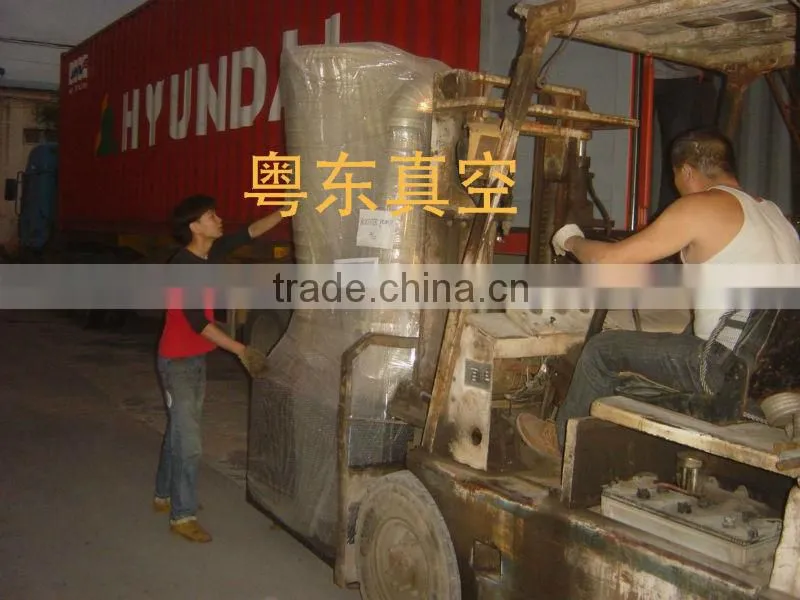

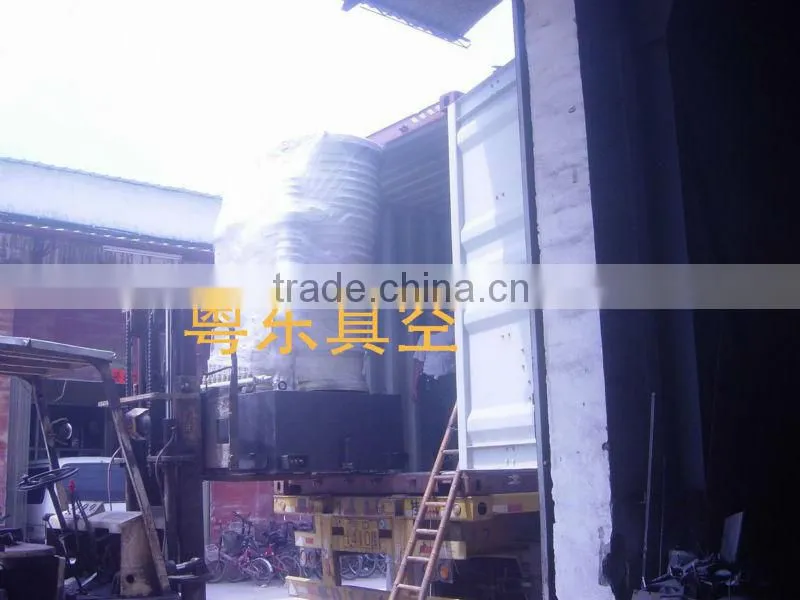

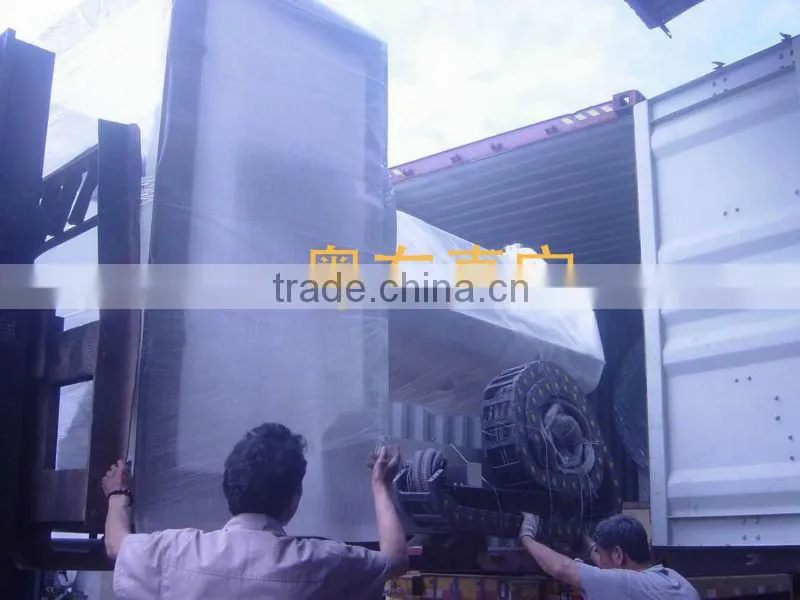

The loading of vacuum metallizing machine:
