Hydraulic Plywood Cold Press Machine, Pre Press machine, Wood Door Cold Press
Used to produce plywood, film faced plywood, ect.
Normal pressure: 400 tons
Working size: 4' x 8'
openings: 1800mm
working size: 2700 x 1370(mm)
main cylinder diameter & number: Φ320 mm*800mm, 2 pcs
Pressurization: ≤25 MPa
high-pressure pump flow rate: 10 ml/r
high-pressure pump motor power: 11 kw
low-pressure pump flow rate: 250ml/r
low-pressure pump motor power: 7.5 kw
Frame mode: frame-type
fluctuation beam: 800mm
the steel plate thickness: 30mm,10mm
upright:350mm
the steel plate thickness: 30mm,10mm,
activity crossbeam: 400mm
the steel plate thickness: 20mm
Total power:18.5kw
Main Features
1) Detachable frame, easy in delivery and installation.
2) Adopting advanced electric parts and operation parts.
3) High pressure double Wuxi solid cylinders, up and down design, opening and closing manual and automatic.
4) Running in a high smooth and stable.
5) Conveyor for board in and out working table.

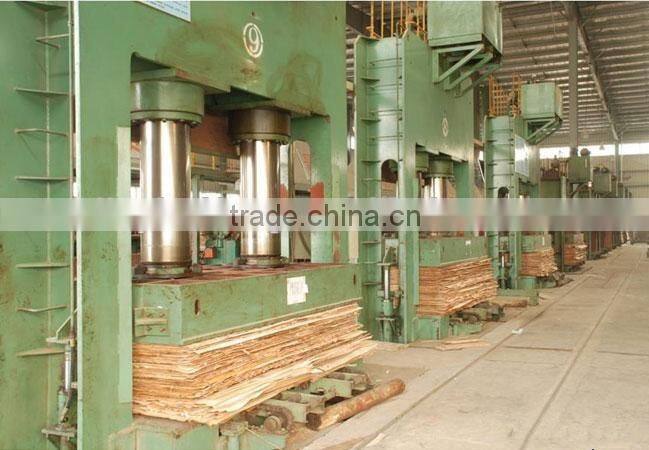

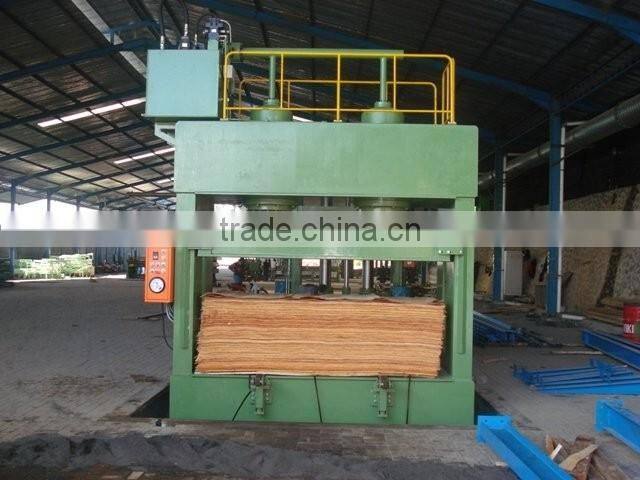

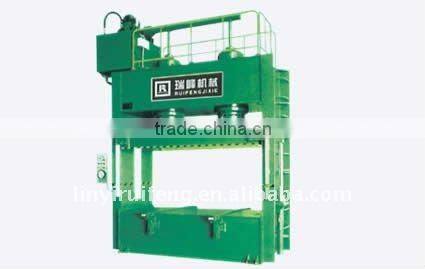

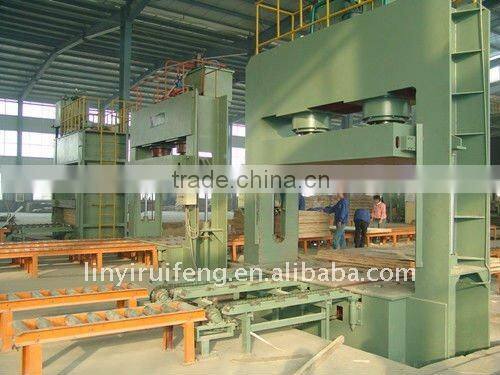

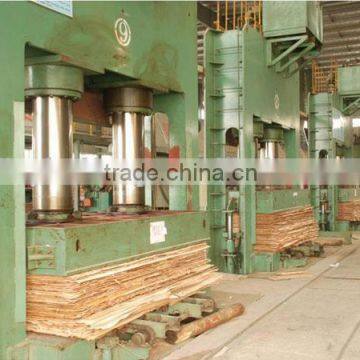

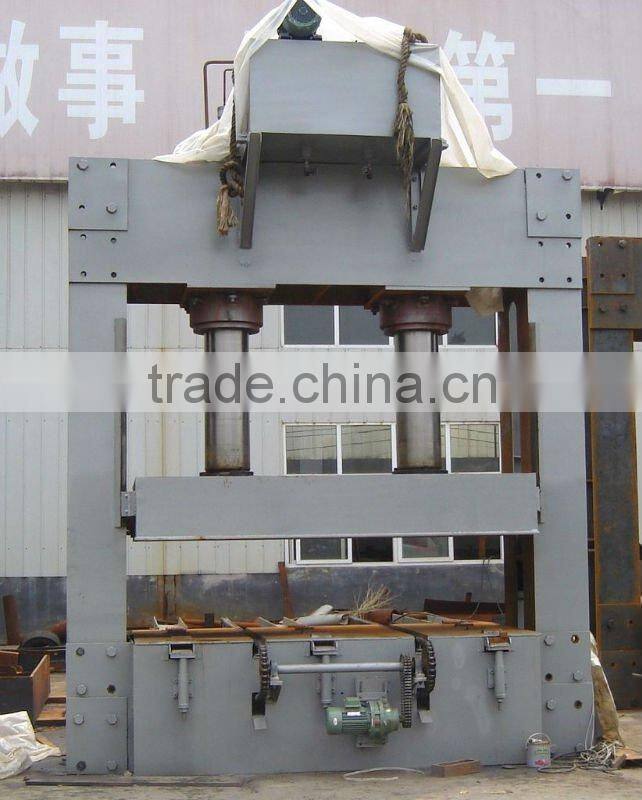

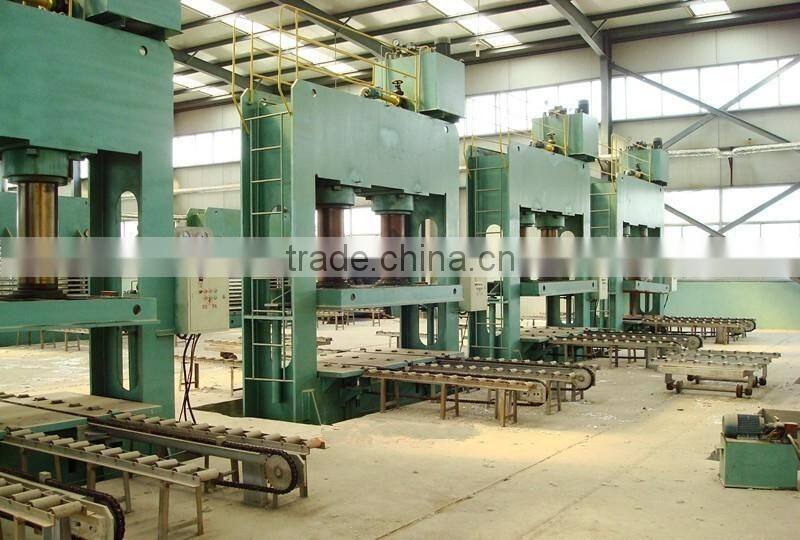

Products show:
