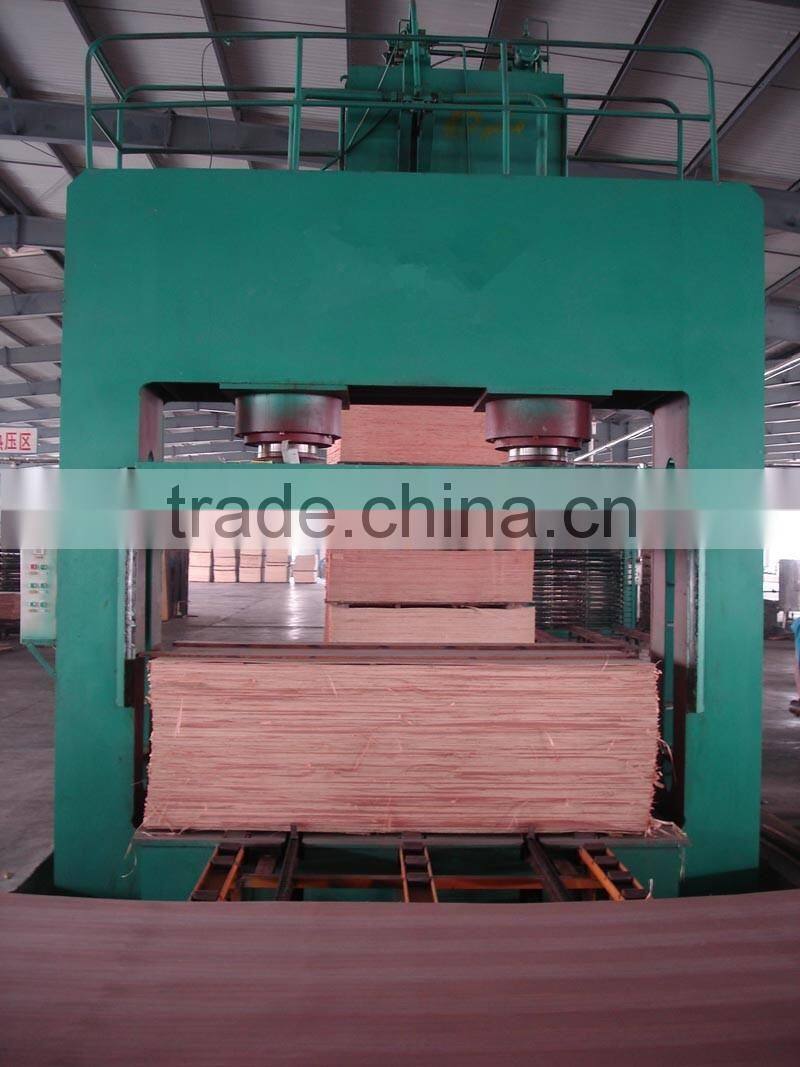

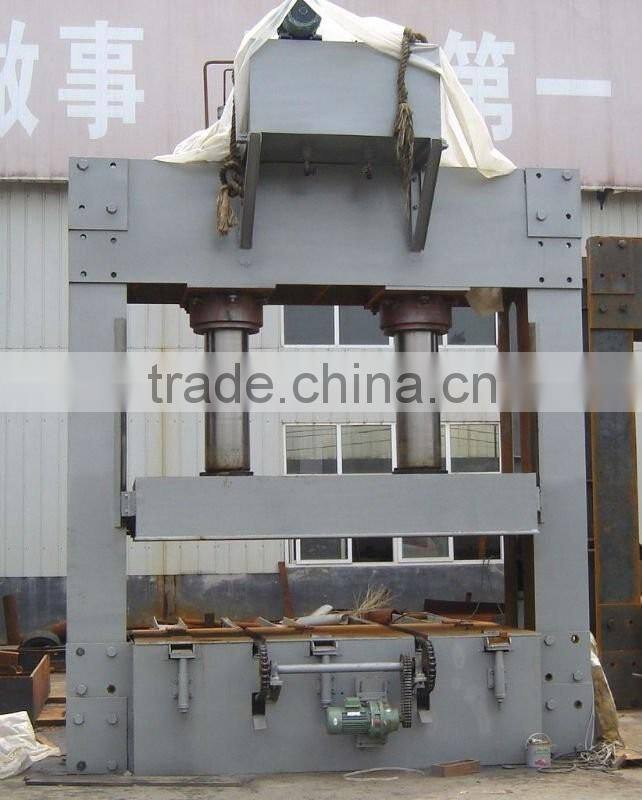

Plywood Production Cold Press Machine,hydraulic press cold press machine for sale
Product Description
The machine is used for pre-pressing process of making plywood, blockboard and decorative board.
The whole structure is designed based on advanced technology and new technological requirement. It is controlled automatically and the quality is very stable and reliable. The machine is automatically controlled with high precision and stable quality.
The electric system and hydraulic system of the machine have been tested precisely and the free-beam will not fall down by its own gravity.
The cylinders are made of super-hard metal and sealed with low-resistance stepped gaskets, giving no oil-leakage, long service life and low maintenance cost.
There is feeding system which has no hurt for the plates.
1.nominal pressure: 400T
2.into board direction: crosswise
3.hollow:1800mm
4.size of working platen: 1370*2700mm
5.number of cylinder: 2
6.diameter: Φ320*800
7.number of lift cylinder:2
8.diameter: F63
9.withstand voltage: ≤ 25Mpa
10.high pressure pump flow:25m/s
11.power: 11kw
12.control: automatic pumping station
13.frame style:frame-type
14.fluctuation beam: 800mm
15.the steel plate thickness: 30mm,10mm
16.upright:350mm
17.the steel plate thickness: 30mm,10mm,
18.activity crossbeam: 400mm
19.the steel plate thickness: 20mm
20.POWER:11kw
Why Choose Us:
1.Export 20 countries, such as Romania, Italy, Argentina, Turkey, Iran, Mexico, India etc.
2.More machine equipment more advanced, more precise.
3.Best price, high quality and nice service.
4.ISO Certificate.
5.100% quality testing before shippment.
Shipping way:
