Help CenterY45 Gantry Movable Type Hydraulic Press
Related Products
-
Sheet Stamping Hydraulic Press Main Oil Press MachineUS$ 3,000 - 100,000MOQ: 1 Unit -
Y27 Single-action Sheet Drawing Hydraulic Press Machine ManufacturerUS$ 23,558 - 222,990MOQ: 1 Unit
-
Y27 Single-action Sheet Drawing Hydraulic Press Machine Forging MachineUS$ 23,558 - 222,990MOQ: 1 Unit
-
Single-action Hydraulic Stamping PressUS$ 30,800 - 291,500MOQ: 1 Unit
-
Y27 Single-action Sheet Drawing Hydraulic Press Machine Hydraulic Compression PressesUS$ 30,800 - 291,500MOQ: 1 Unit

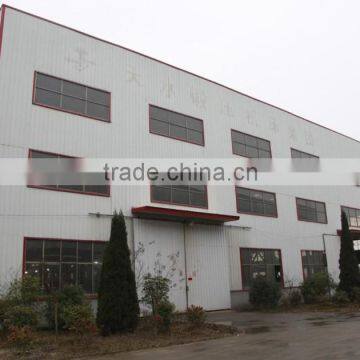

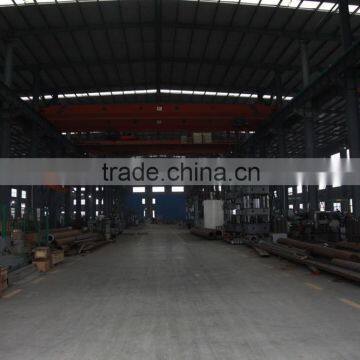

Anhui Wuyang Tool Machine Manufacturing Ltd. is located in the Chu&Han Cultural city which named Maanshan. The company was established in 2005, has nearly 10 years experience of production. Our company covers an area of 30000 square meters, including production building area of nearly 15000 square meters; and our company existing more than 120 staff, which including 20 people that got the bachelor degree, and technical personnel 65 persons. Under the perfect cooperation of high technology team and complete manufacturing equipment, our company’s products performance and quality have reached the international advanced level.
From 2011, our company was built a joint venture with Tianshui Forging machine tool (group) co., Ltd. to produce multi-function hydraulic press, three beam four column hydraulic press, gantry hydraulic press, double column hydraulic press, fast hydraulic press, shearing machine, forging machine tool, punching machine and so on. All technical talents are made by Tianshui group head office stationed. Our company adhering to advantage of the talent technical and is committed to the development and production of various models hydraulic press, of which the factory have produced and exported many sets of hydraulic press independently so far. In 2014, our company passed ISO9001 quality management system certification.

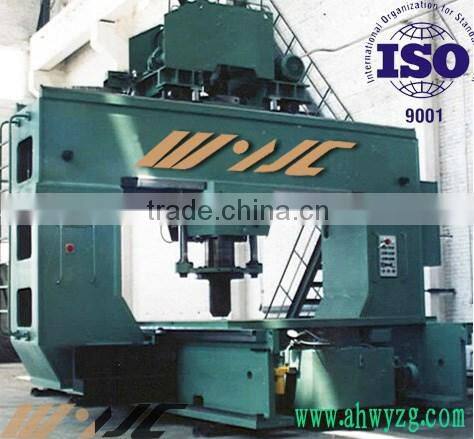

The machine pressure head can do fixed set-point control,namely the head can achieve effective stroke face within the scope of any specifying points to adjustment link and structural member,medium thickness plate leveling,axis parts alignment and bending,stretching,pressing and processing.This machine with my company original creation micro technolog so can do accurate micro control to pressure head .therefore it suitable for processing precision pressing
This series of machine tool is our company first independent successfully developed in 1978.Basic models have single gantry single head,derived type have double gantry double head,double gantry four pressure head or more and table can widened extension.it can be widely used in engineering machinery,railway locomotive,automobile,shipbuilding,petrochemical,chemical industry,aviation,etc.
Technical Parameters | |||||||
|
Type
Name |
Unit |
200/2000×4000 200/5000×5000 200/2500×5000 |
200/3000×5000 (Double gantry) |
250/3000×6000 |
315/2500×4000 315/2500×5000 315/2500×6000 (Double gantry) |
315/2500×4000 315/2500×5000 (Double gantry) |
315/4000×6000 315/5000×6000 |
|
Main pressure head Sustain pressure head |
Main pressure head Sustain pressure head |
Main pressure head Sustain pressure head |
|||||
Nominal force |
KN |
2000 |
2000/1000(a) |
2500 |
3150/1000(a) |
3150/1000(a) |
3150 |
Table width |
mm |
2000,2000,2500 |
3000 |
2000 |
2500 |
2500 |
4000,5000 |
Table length |
mm |
4000,5000,5000 |
5000 |
6000 |
4000,5000,6000 |
4000,5000,6000 |
6000 |
|
Max. stroke of pressing in lengthwise
|
mm |
4000,5000,5000 |
3500/3000 |
5000 |
3000/2000 4000/3000 5000/4000 |
3500/3000 5500/5000 |
5000 |
Max. stroke of pressing head in crosswise |
mm |
1700,1700,2000 |
2500/8000 |
1700 |
2000/800 |
2400/800 |
4000,4500 |
Max. stroke of pressing head in heightwise |
mm |
800 |
800/500 |
800 |
800/500 |
800/500 |
800 |
Max. distance between bottom face and table |
mm |
800 |
1100/700 |
1550 |
800/700 |
800/700 |
1100,900 |
Pressing head fast downlink speed |
mm/s |
45 |
45 |
100 |
≥60/≥11.6 |
60/11.6 |
60,75 |
Pressing head fast downlink speed |
mm/s |
6.4 |
3 |
8 |
3 |
3 |
3,5 |
Return indenter speed |
mm/s |
62 |
62 |
100 |
≥68/≥11.6 |
68/11.6 |
68,80 |
Micro-moving precision |
mm/time |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
Beam movement speed |
mm/s |
175 |
175 |
175 |
175 |
175 |
175 |
Crosswise movement speed |
mm/s |
120 |
120 |
120 |
120 |
120 |
120 |
Main motor power |
KW |
735 |
22 |
22 |
15 |
15 |
15 |
Lifting device working strokes |
a |
6 |
4 Horizontal cylinder |
|
8 |
8 |
8 |
Lifting device force |
mm |
100 |
160 The range of horizontal cylinder |
|
100 |
100 |
100 |
Lifting device force |
KN |
240 |
630 Maximum nominal pressure of each horizontal cylinder |
|
240 |
240 |
240 |
Lifting device motor force |
KW |
5.5 |
5.5 The motor power of horizontal survey system |
|
7 |
55.5 |
5.5 |
|
Overall dimensions (L×W×H) |
mm |
6700×5600×5350 5700×5650×5350 6700×6150×5350 |
7700×6485×6370 |
700×6485×6370 |
8000×7150×5776 9330×7150×5776 10330×7150×5776 |
9300×7650×5776 11330×7650×5576 |
9000×8000×5820 7240×8150×6200 |
Wight |
Kg |
40000,44000,48000 |
71000 |
60510 |
69650,74500,79350 |
76500,87100 |
87000,125000 |
Technical Parameters | |||||||
|
Type Name |
Unit |
500/2500×5000 500/3000×6000 |
630/3500×8500 630/4000×6000 |
800/3000×7000
|
1000/3000×6000
|
1600/5000×6000
|
315×4/3500×8000 (Double gantry) |
Nominal force |
KN |
5000 |
6300 |
8000 |
10000 |
16000 |
3150×4 |
Table width |
mm |
2500,3000 |
3500,4000 |
3000 |
3000 |
5000 |
3500 |
Table length |
mm |
5000,6000 |
8500,6000 |
7000 |
6000 |
6000 |
8000 |
|
Max. stroke of pressing in lengthwise
|
mm |
3500,6000
|
7000,6000 |
7000
|
6000 |
6000 |
8000 |
Max. stroke of pressing head in crosswise |
mm |
1800,2800 |
3000,4000 |
3000 |
3000 |
5000 |
3500 |
Max. stroke of pressing head in heightwise |
mm |
8000,1350 |
800 |
1000 |
8000 |
800 |
800 |
Max. distance between bottom face and table |
mm |
1650,2050 |
1800,1200 |
2000 |
1200 |
1200 |
1500 |
Pressing head fast downlink speed |
mm/s |
60 |
100,80 |
60 |
60 |
60 |
60 |
Pressing head fast downlink speed |
mm/s |
3.7 |
6.5 |
5 |
3 |
3 |
3 |
Return indenter speed |
mm/s |
60 |
70 |
60 |
60 |
60 |
60 |
Micro-moving precision |
mm/time |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
Beam movement speed |
mm/s |
175 |
120 |
120 |
120 |
56 |
175 |
Crosswise movement speed |
mm/s |
120 |
56 |
56 |
56 |
67 |
120 |
Main motor power |
KW |
18.5,37 |
37 |
37 |
45 |
45 |
4×15 |
Lifting device working strokes |
a |
8 |
8,15 |
18 |
15 |
24 |
24 |
Lifting device force |
mm |
100 |
100 |
100 |
100 |
100 |
100 |
Lifting device force |
KN |
240 |
240,300 |
540 |
450 |
480 |
480 |
Lifting device motor force |
KW |
5.5 |
5.5,7.5 |
735 |
7.5 |
7.5 |
7.5 |
|
Overall dimensions (L×W×H) |
mm |
6450×7235×6920 8150×8230×7210 |
11000×8635×7135 8730×9910×7000 |
9500×8500×8000
|
8500×9000×7500 |
13200×11550×9065 |
12300×9000×6900 |
Wight |
Kg |
745000,90000 |
153000,145000 |
140000 |
165000 |
280000 |
1250 |
Our press machine will be packing with anti-rust oil, plastic paper and fixed base. That is for protecting our machine from water and striking in the process of shipping.
