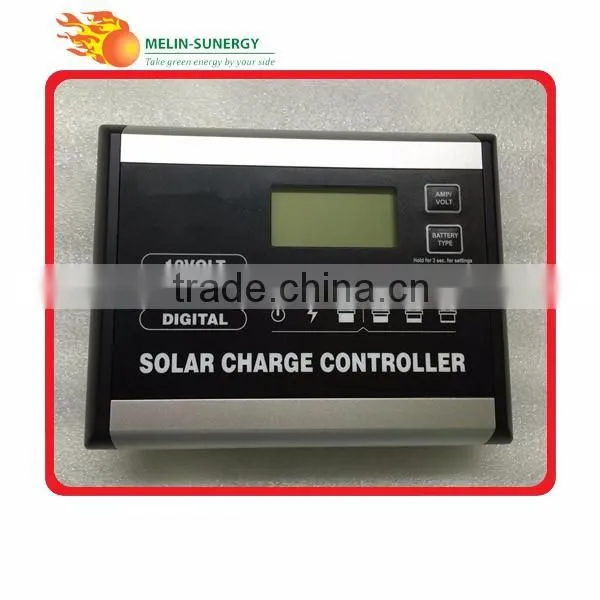

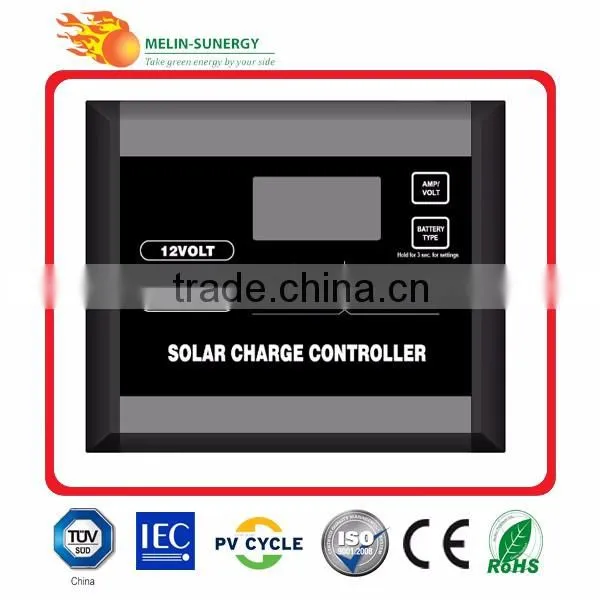

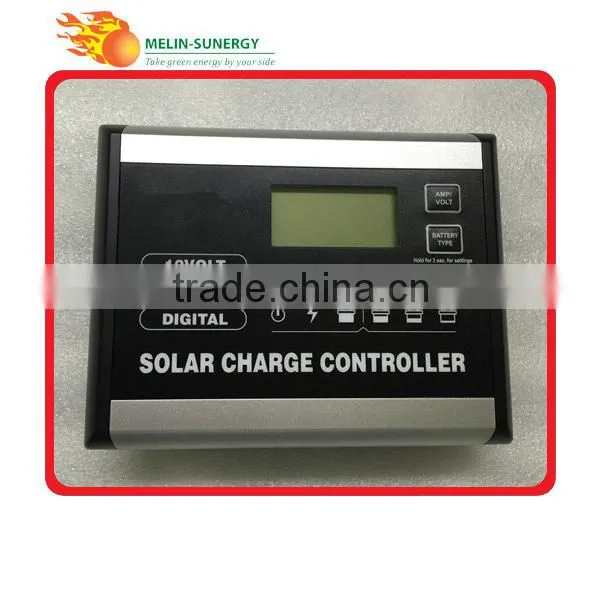

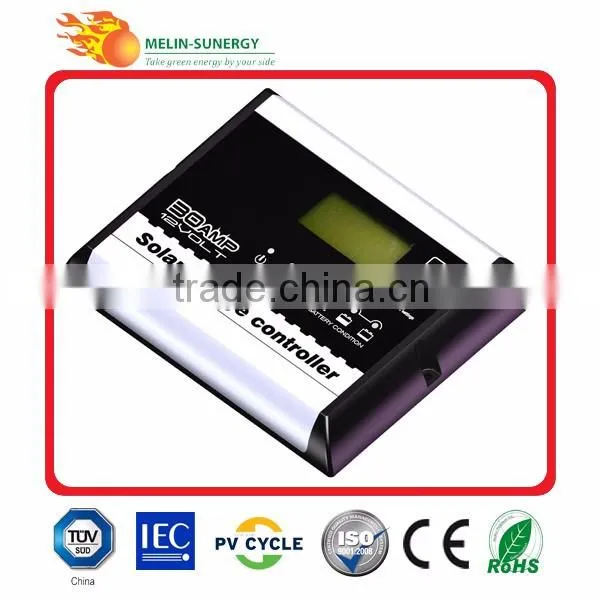

30A/12V PWM outback charge controller
1.Works on 12V Solar System ,input voltage up to 25V dc
2.30Amp Continuous charging capacity ,enable use with solar panel upto 500W
3. Large LCD Display for : Solar Panel connection ,Voltage , Current , Amp hours been charged to battery , battery
presets , battery charging status and Fault information
4. plus LED Indicator for battery condition & Charging Status
5. MCU Control , PWM Technology, charging design for low loss ,higher efficiency charging and longer battery life
6. 6 Type of battery setting , AGM , GEL , WET ,CALCIIUM , LiFePO4 & LTO lithium battery , ready to charge LiFePO4
& LTO Lithium battery
7. 5 Stage Charging Technology for 100% return of capacity and longer battery life , soft start , bulk charge , absorption charge ,
eqaulization charge and float charge

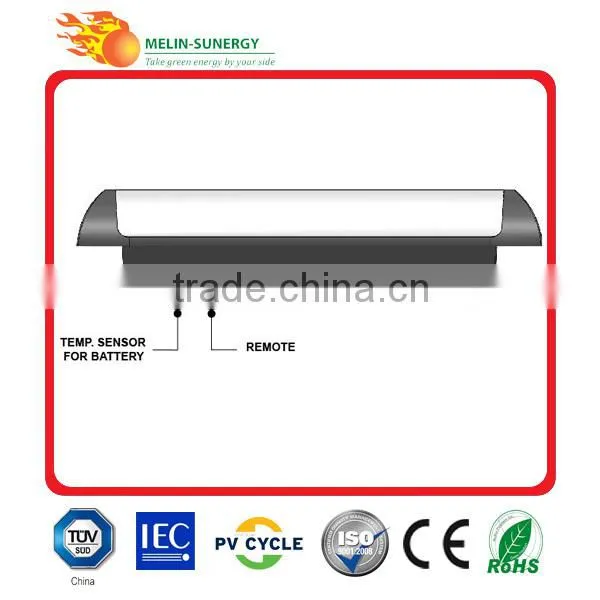

8. Temperature Compensation function with optional temperature sensor cable

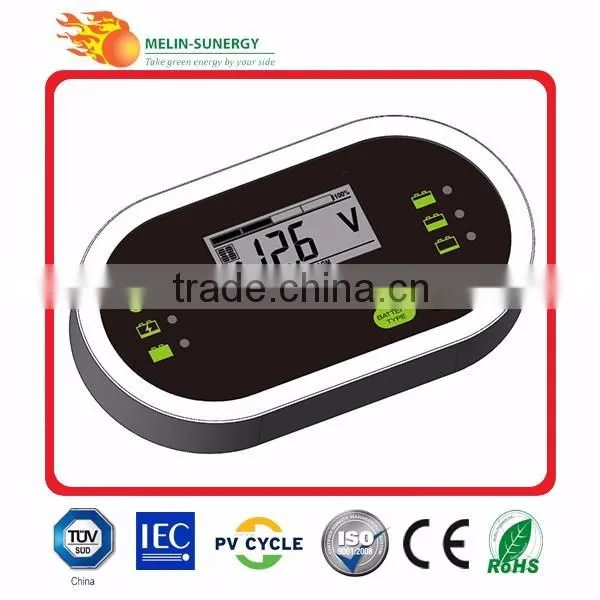

9. Optional Remote Diplay
10. Flash Mounting Design
11. 12V/24V Auto Type avialable for customer option
12. Warranty : 2 Years
---Electric & Physcial Parameters
| Item No. | MT-505-30A |
| Type | PWM |
| Rated Charging Current | 30Amp |
| Max. Solar Panel Input Voltage | 25V DC |
| Controller Operation Voltage (On solar panel or battery side) | 8V DC |
| Standby Current Consumption at night | 5mA |
| Max. Voltage Drop from Solar Panel to Battery | 0.25V DC |

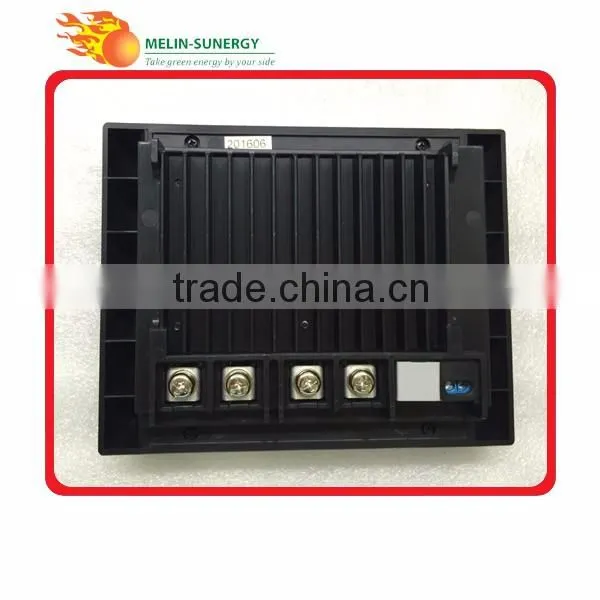

| Input / Output Terminal | M5 Terminals |
| Remote Port | RJ-11 ( 6 pins ) |
| Controller case material | ABS |

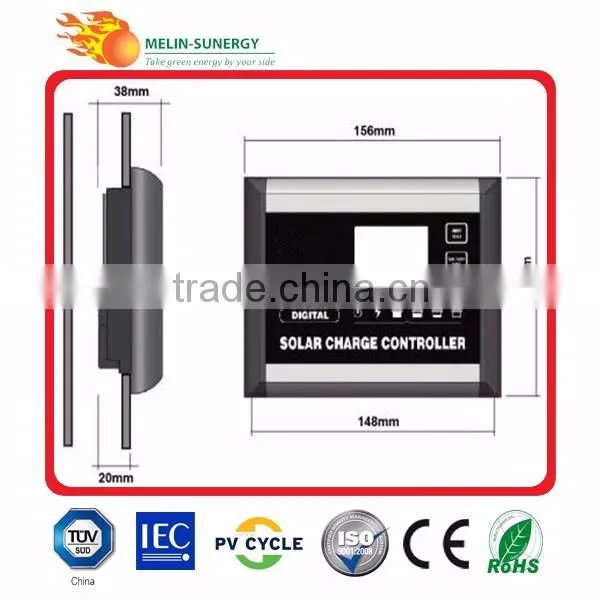

| Size | 156X120X38mm |
| Weight | 0.3Kg |
| Max. Standed Wire Size | 6AWG or 16mm² |
| Operation Temperature Range | -20~50 °C |
| Storage Temperature Range | -40~85°C |
| Operating Humidity Range | 100% no condensation |
---Charging Parameter
| AGM | GEL | WET | Calcium | LiFePO4 | LTO | |
| Soft Start Charging Voltage (v) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 |
| Bulk Charging Voltage (v) | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 | 10-14 |
| Absorption Charging Voltage (v) | 14.4 | 14.1 | 14.7 | 14.9 | 14.4 | 14.0 |
| Equalization Charging Voltage (v) | -- | -- | -- | 15.5 | -- | -- |
| Float Charging Voltage (v) | 13.6 | 13.6 | 13.6 | 13.6 | 13.4 | 13.4 |
| Min.Start Charging Voltage (v) | 3V | |||||
| Automatic Equalizing Charging Periodical | 28 Days | |||||
| Equalization Charging Timer Time out | 2 Hours | |||||
| Voltage Control Accuracy | +/-1% | |||||
| Battery Temperature Compensation Coefficient | -24mV/°C | |||||
| Temperature Compensation Range | -20~50°C | |||||
* All Spec. Value at 25°C
--Packing : Color box , Blister Card Packing or Customized Packing
--Shipping : By sea / By Air / By Express ( DHL ,FedEx , TNT ,UPS ...)
You can try Trade Assurance, you'll enjoy:
- 100% product quality protection
- 100% on-time shipment protection
- 100% payment protection for your covered amount
Q : Does your Controller can charge Lithium Battery ?
A : Yes , our 30A Controller can charge LiFePO4 & LTO Lithium battery charger .
Q : How many type of battery presets does that controller include ?
A : 6 Type of battery ,which is AGM ,GEL ,WET ,Calcium , LiFePO4 & LTO
Q : How many Charging Stage of your Controller ?
A : 5 Stage Charging ,which is : Soft Start , Bulk Charging ,Absorption Charge , Equalization Charge & Float Charge
Q : What is sample delivery time ?
A : Normal within 1 week after we get the sample order confirmation
Q : What is official order delivery time ?
A : Normal within 20-25 days after got the deposit
